MV750i E, MV730i E, MV700i E, MV700 E, MV690 E
DISASSEMBLING
29
<Notes on Reassembling>
(1) Mount the CVF Bottom Cover in the arrow direction at a status where the CVF FPC groove and dowel E are engaged together.
(2) Engage the part C of CVF FPC with the FPC Holder, and fasten the altogether with UL Tape.
<Instruction for Supply>
CVF Bottom Cover Rail Parts 2 points : Hanarl KS-39M (DY9-3053-000)
CVF Click Plate : Hanarl KS-39M (DY9-3053-000)

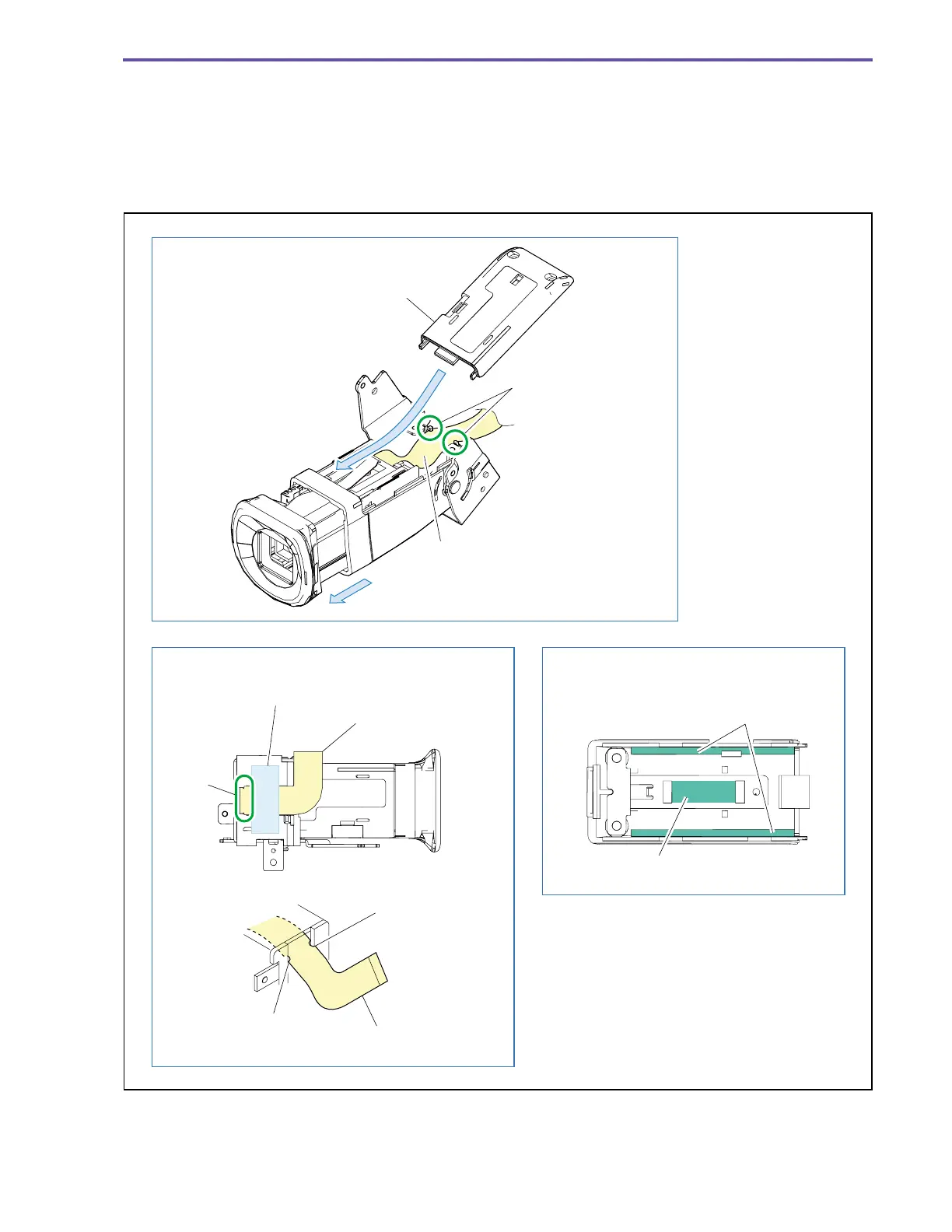

Fig. 26
Note on Reassembling (2)
Note on Reassembling (1)
CVF FPC
CVF FPC
CVF FPC
CVF Bottom Cover
UL Tape (9 × 20)
Dowel E
Part C
Part C
Part C
CVF Click Plate
Hanarl KS-39M
CVF Bottom Cover Rail Parts
Hanarl KS-39M
Put out CVF Inner a little
Instruction for Supply
