Canon MV750i E - Page 129

MV750i E, MV730i E, MV700i E, MV700 E, MV690 E
DISASSEMBLING
35

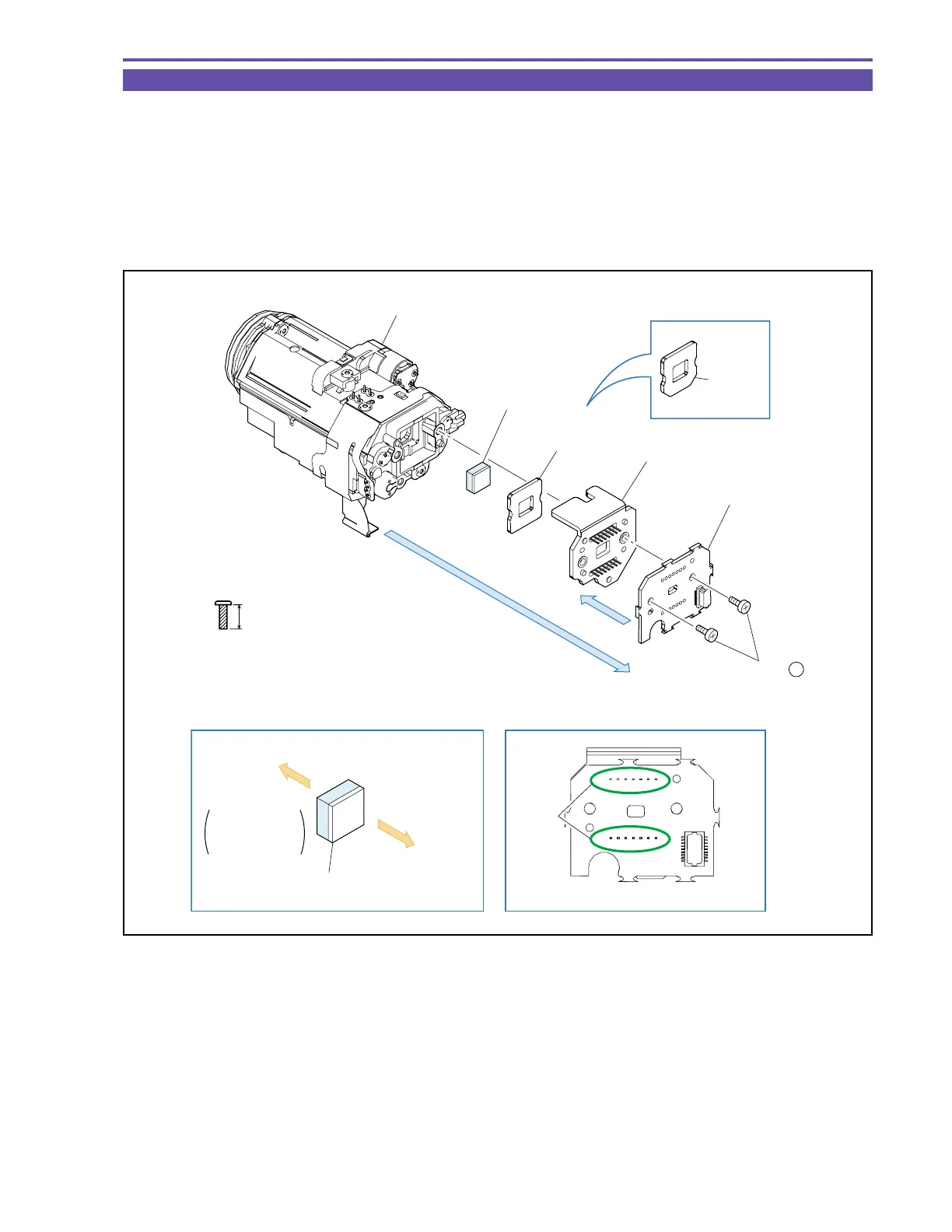

1-29 Disassembly of Camera Unit - 2
(1) Remove two screws (i × 2), and detach the CCD P.C.B., CCD Ass’y, Rubber and IR Filter.
Note : To be manufactured using conventional-type Rubber material for two months after the start of mass-produc-
tion. Thereafter, new-type Rubber material is to be used.
For service Rubber parts, new-type Rubber material (DA3-1028-000) shall be used.
(2) Unsolder the part A, and detach the CCD Ass’y from the CCD P.C.B.
<Notes on Reassembling>
(1) Carry out soldering on the CCD P.C.B. at a status where the CCD Ass’y and CCD P.C.B. are fastened by two screws (i × 2).
Fig. 32
i
5.5mm
Metal
M1.7
(self tap)
Face thick
side toward
CCD side
IR Filter
Lens
Part A
CCD
CCD P.C.B.
(2)
(1)
IR Filter
Lens Unit
Rubber
(NEW)
Rubber
(OLD)
CCD Ass'y
CCD P.C.B.
(2)
(1) - i
