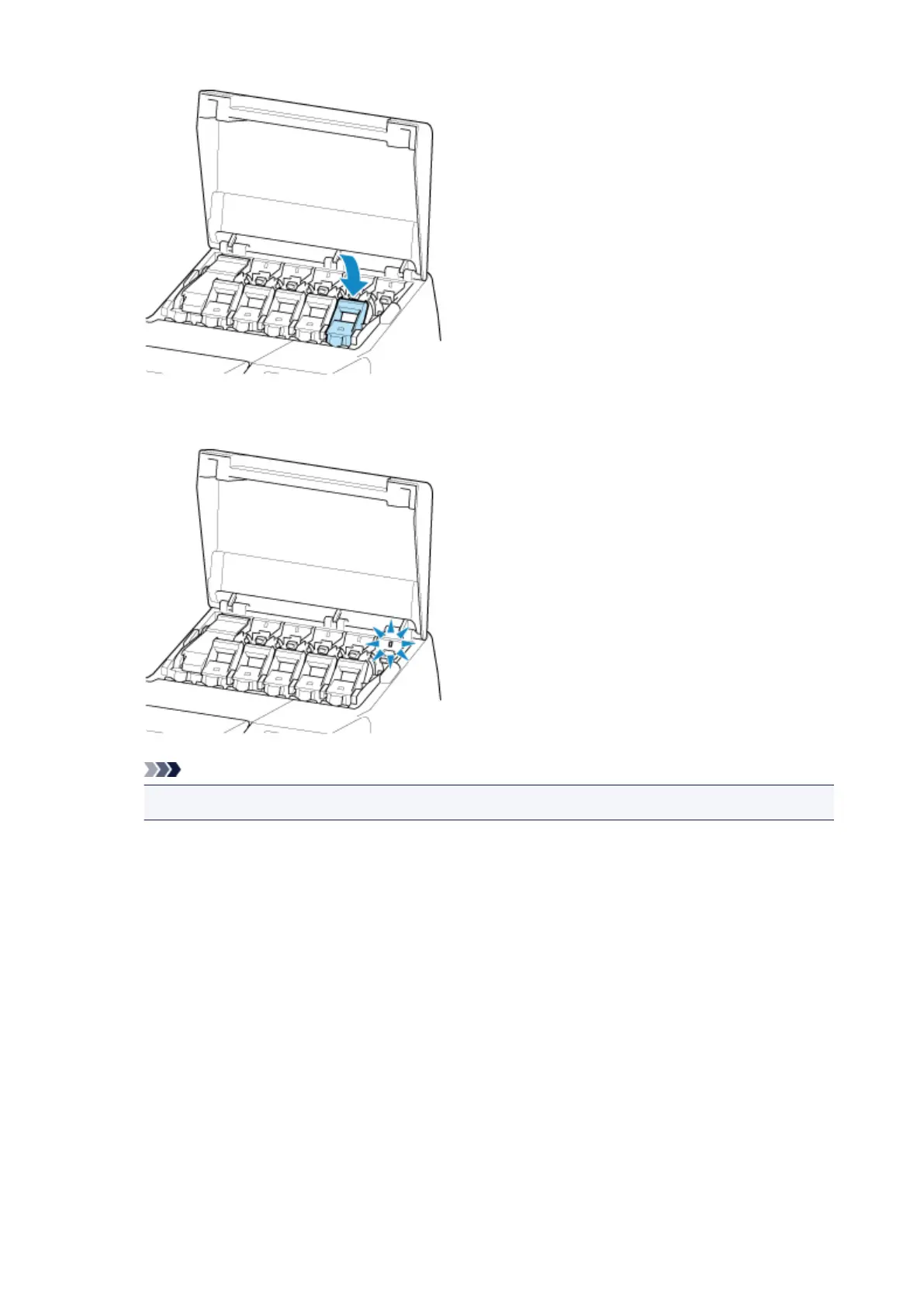

Make sure ink lamp is lit.

Note

• If the ink lamp is not lit, reload the tank.

Close ink tank cover.
