10–1 62-11640
SECTION 10
WIRING

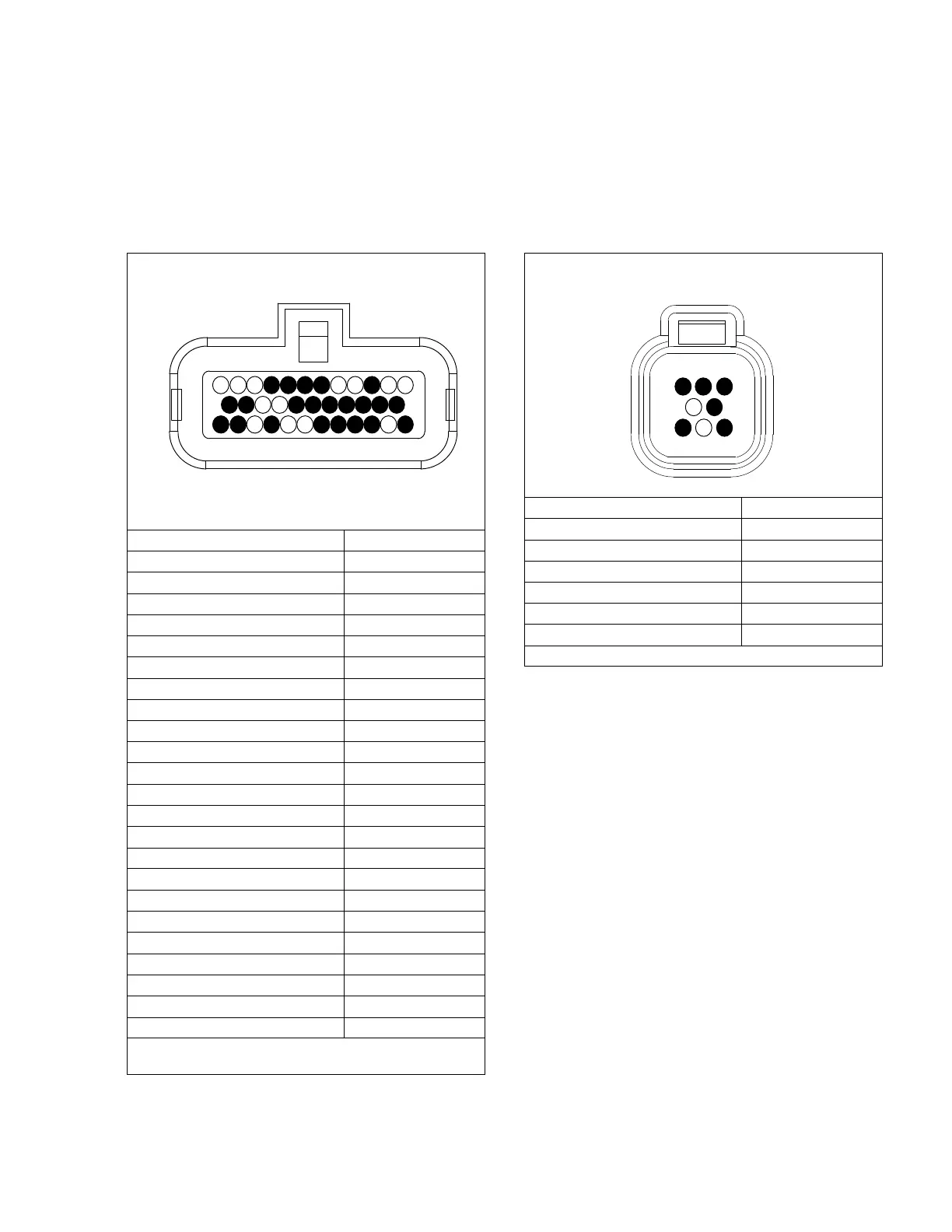

10.1 HARNESS CONNECTOR WIRING
NOTE
All illustrations provided in this Section are looking at the connector connection end (with the wires in
the back).
PCM ï WHITE
1
12
24
35
Component Terminal
SPï25 3
SATPWRïA 6
LBïB 7
3MMï34 8
3MMï23 9
HVB7ïE 10
PCMï35 13
SPï25 14
HVB7ïF 15
3MMï18 16
3MMï17 17
SPï17 18
1MMï1 19
FLSïA 22
3MMï15 23
AFASïA (F6ïA) 24
3MMï13 26
3MMï14 27
3MMï28 28
2MMï12 29
1MMï6 32
SPï18 34
PCMï13 35
Unused terminals: 1, 2, 4, 5, 10, 11, 12, 20, 21, 25,
30, 31, 33
1MM ï BLACK
1
3
6
8
Component Terminal
PCMï19 1
HVB7ïC 2
SPï15 3
HVB7ïD 4
PCMï32 6
SPï16 8
Unused terminals: 5 & 7
