Carrier TRANSICOLD Vector 8500 User Manual

62-11640 10–2

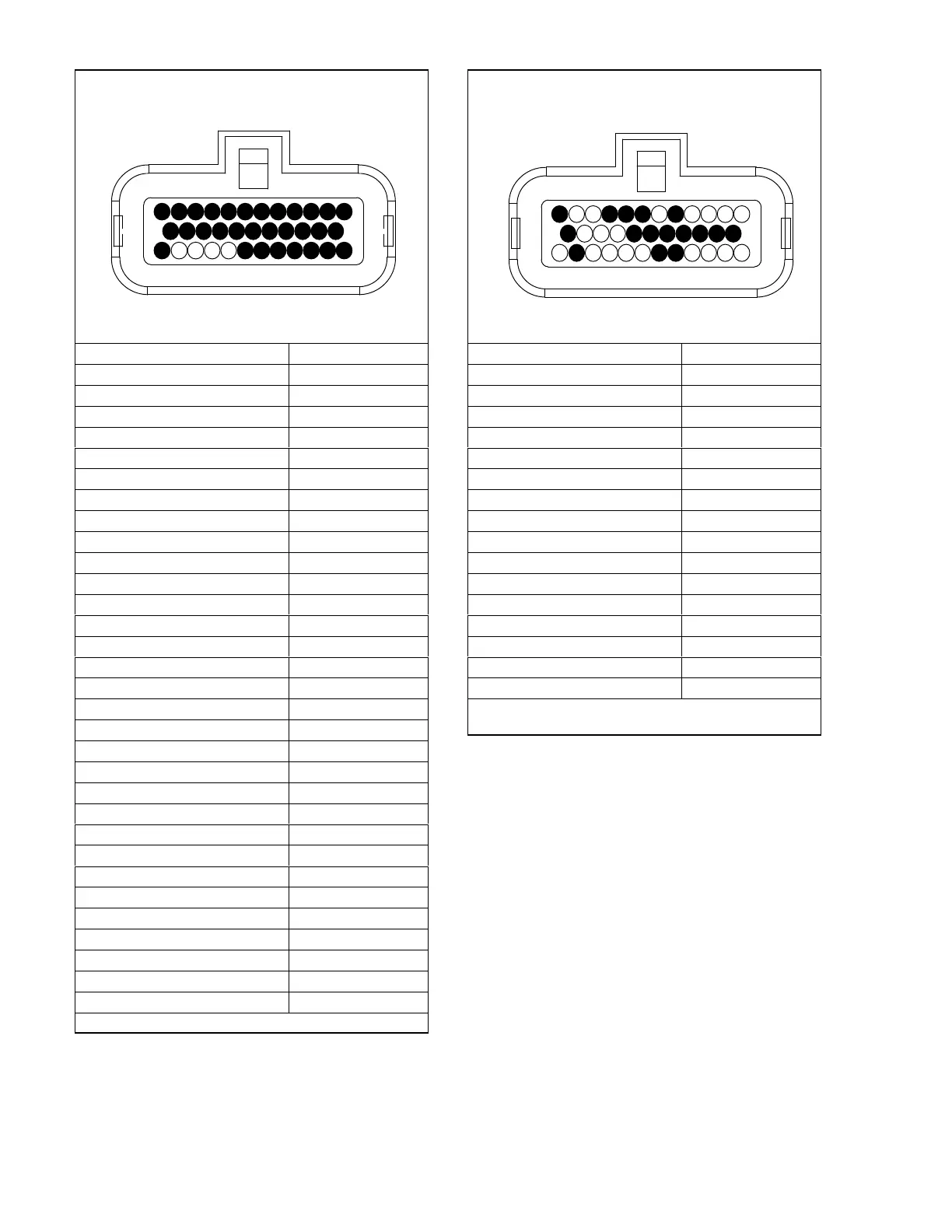

2MM ï BLACK
1
12
24
35
Component Terminal
AATïB 1
AATïA 2
DP16ïG 3
DP16ïH 4
DP16ïC 5
DP16ïD 6
DP16ïE 7
CDTïB 8
CSPï3 9
CDPï3 10
DP16ïB 11
PCMï29 12
FLSïC 13
ECOPï3 14
ECOTïB 15
CSTïB 16
DP16ïS 17
DP16ïF 18
CDTïA 19
CSPï1 20
CDPï1 21
DP16ïA 22
PCMï30 23
FLSïB 24
DP16ïP 25
ECOTïA 26
CSTïA 27
ECOPï1 28
PCMï31 29
SPï20 30
SPï24 35
Unused terminals: 31, 32, 33 & 34
3MM ï GRAY
1
12
24
35
Component Terminal
LIVï1 5
LBïH 7
FP+ 8
SPï29 9
SSïA 12
PCMï26 13
PCMï27 14
PCMï23 15
SPï23 16
PCMï17 17
PCMï16 18
DAS Common (A) 19
PCMï9 23
PCMï28 28
DAS Open (B) 29
PCMï8 34
Unused terminals: 4, 5, 20, 21, 22, 24, 25, 26, 27,
30, 31, 32, 33 & 35
