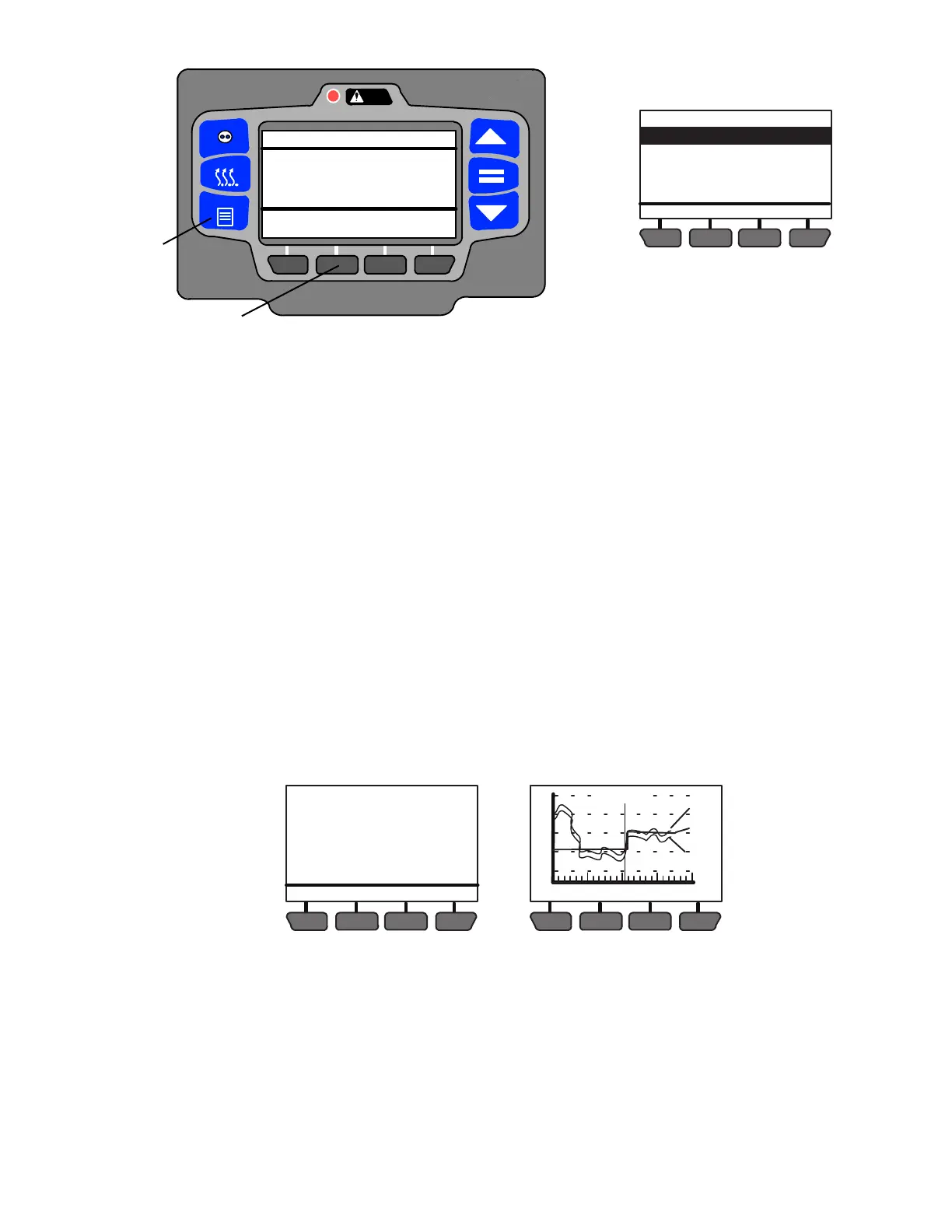

1. With the system powered up (START/RUN-OFF switch in the START/RUN position) or in PC Mode press
the MENU key until DATA RECORDER is displayed.
2. Press the DATA RECORDER soft key to display the sub menus.
3. The Data Recorder screen will display with a 15 second timeout. Press the
▲ or ▼ key
to scroll through the
available sub menus. With the desired sub-menu highlighted, press the “=” Key to enter the menu.
NOTE
Choices vary based on software revision and model type.
MARK TRIP START
Trip Start places the present time and date as a stamp in the data recorder memory to allow easy review of
the data from the last trip, and to allow downloading data from a specific trip. A trip begins at a Trip Start
and ends at the next Trip Start. To enter a Trip Start: with MARK TRIP START highlighted, press the “=”
Key. If trip start is acknowledged by the data recorder, “TRIP START ENTERED“ will be displayed for 5
seconds and then the display will revert back to the normal display. In the unlikely situation that the data
recorder is not functioning properly “CANNOT ENTER TRIP START” will flash and then the display will
revert back to the Data Recorder menu.
PRINT TO SCREEN
PRINT TO SCREEN displays a graphical representation of the recorded data. To display the data: with
PRINT TO SCREEN highlighted, press the “=” Key. If Configured to do so, the System will prompt for entry
of the data protect PIN code (refer to “PROTECT DATA WITH PIN”, Table 5–1).
Once the graphical display is presented, press the or - keys to move through the recorded data, day by
day. The data is presented with the left horizontal axis as 00:00 (midnight) with 24 dividing lines represent-
ing the hours of the day.
Press the “=” key to toggle the event codes on or off. When viewing events with the event codes ON, the
following acronyms will be displayed:
c = Door Close o = Door Open
d = Defrost start p = Power up
e = Defrost end r = Real time clock range
f = Power down t = Trip Start
