4-OPERATINGINSTRUCTIONS

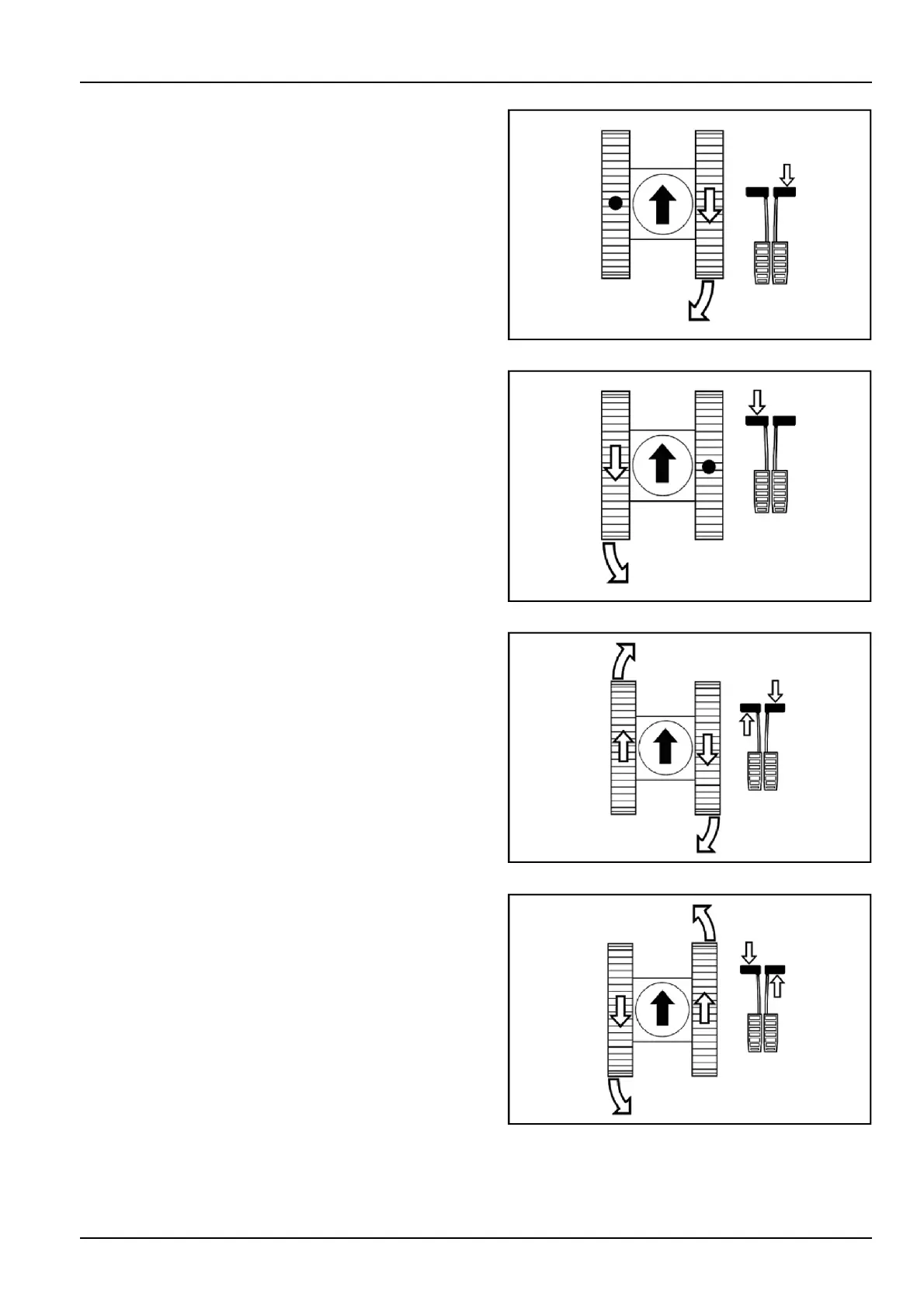

Turningtotheleft(reversetravel)
Presstheright-handpedalorpulltheright-handlever
rearwards.
SMIL13CEX2683AB7
Turningtotheright(reversetravel)
Presstheleft-handpedalorpulltheleft-handleverrear-
wards.
SMIL13CEX2684AB8
Turningonthespot,totheright
Presstheleft-handpedalorpushtheleft-handleverfor-
wardsandatthesametimepresstheright-handpedalor
pulltheright-handleverrearwards.
SMIL13CEX2685AB9
Turningonthespot,totheleft
Presstheright-handpedalorpushtheright-handlever
forwardsandatthesametimepresstheleft-handpedal
orpulltheleft-handleverrearwards.
SMIL13CEX2686AB10
4-23
