Machineorientation
Theterms"Right-hand","Left-hand","Front"and"Rear"
areusedinthismanualtoindicatethesidesastheyare
seenfromtheoperator'sseatwhenthetravelmotorsare
positionedattherearandtheoperatorisfacingthedirec-
tioninwhichthemachineadvances(forward).

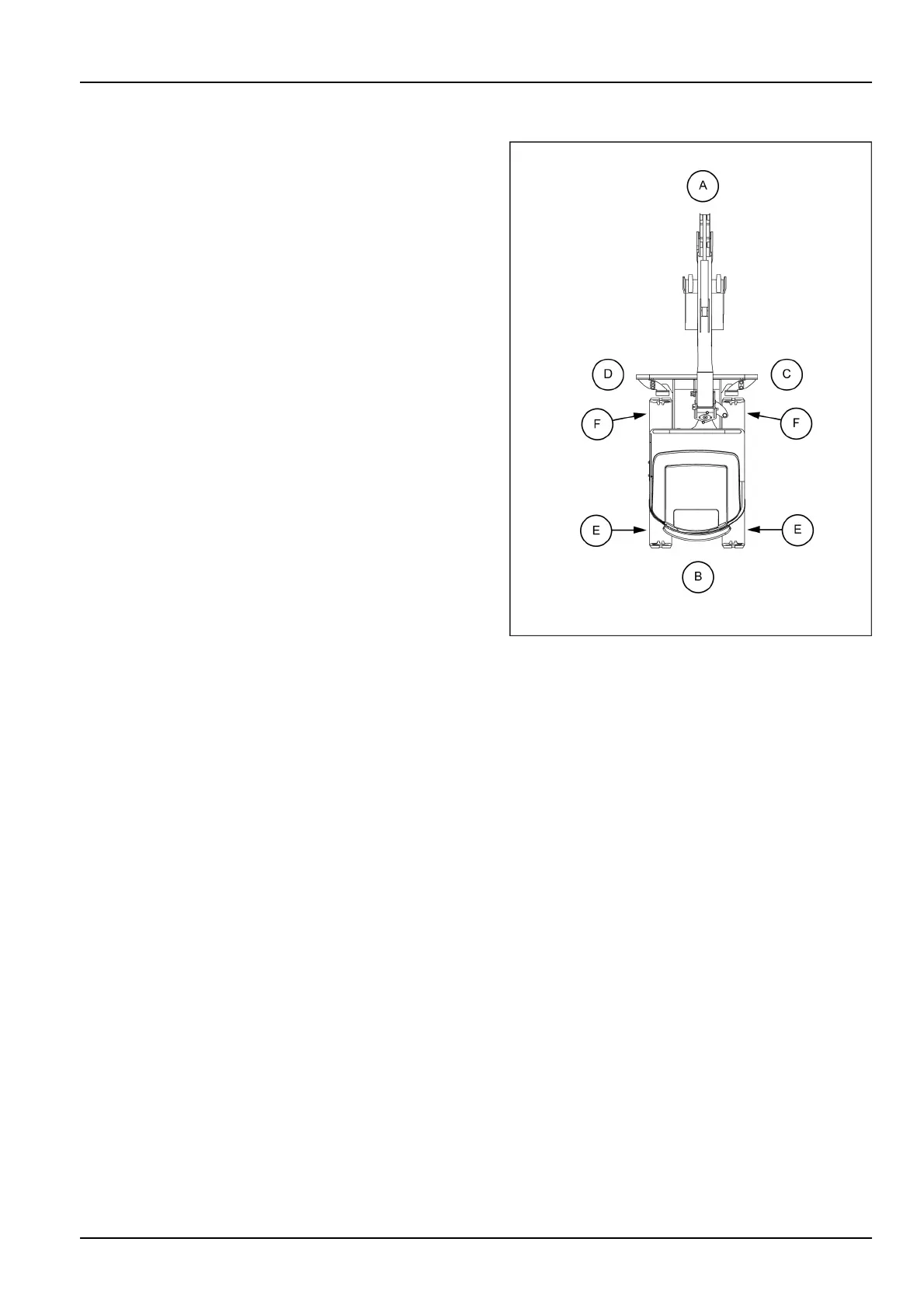

A.Front
B.Rear
C.Right-handside
D.Left-handside
E.Travelmotor
F.Idlerwheel
SMIL16MEX2251BB1
