CASE CONSTRUCTION CX17C - Right-Hand Side Controls

3-CONTROLSANDINSTRUMENTS
Right-handsidecontrols
Right-handsidecontrols

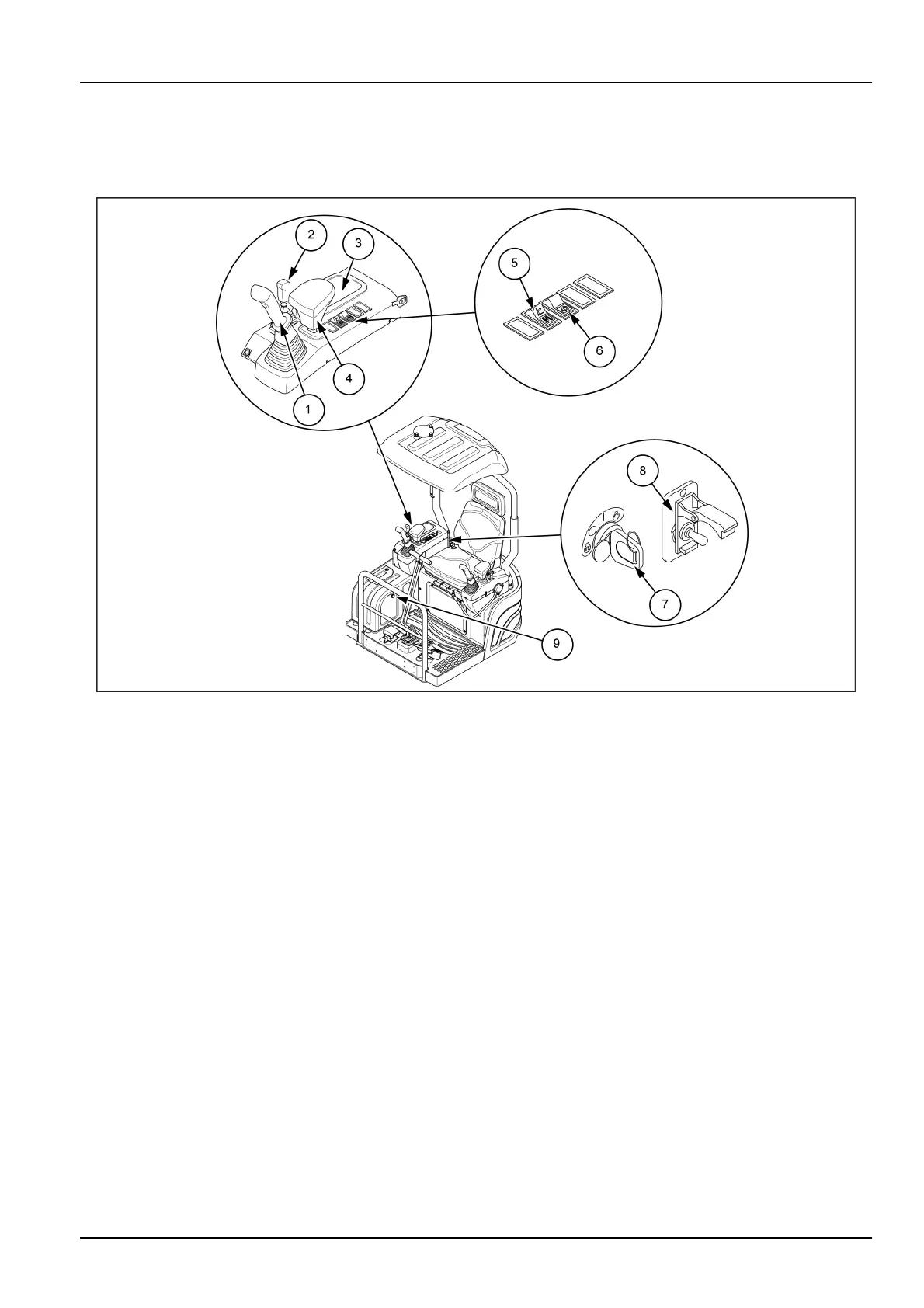

SMIL16MEX2321FB1
(1)Right–handcontrollever(refertopage3-4)andhorn
push–button.Pressandmaintainpressedthepush-but-
tontoactivatethehorn.
(2)Dozerbladecontrollever(refertopage3-15)
(3)Instrumentcluster(refertopage3-20)
(4)Armrest
(5)Twopositionswitch
(6)Travelalarmswitch(optional)
(7)Starterswitch
(8)Emergencystopoftheengineswitch
(9)12Vpowersupplysocket:thedeviceisactivewiththe
starterkeyinONposition,orwhiletheengineisrunning.
NOTICE:connectonly12V,120Wdevicestothesocket.Connectingdevicesfunctioningatdifferentvoltagecan
causedamagestothedeviceitselfandtotheelectricalsystem.
NOTICE:donotusehighpressurewateronelectricandelectronicparts(suchasclusterandright-handsideconsole).
3-13
