6-MAINTENANCE

Swingringgear

Greasetheswingringgearevery50h.

Lubricant:CASEAKCELA251HEPMULTI-PURPOSEGREASE

Swingringgear:onegreasetting

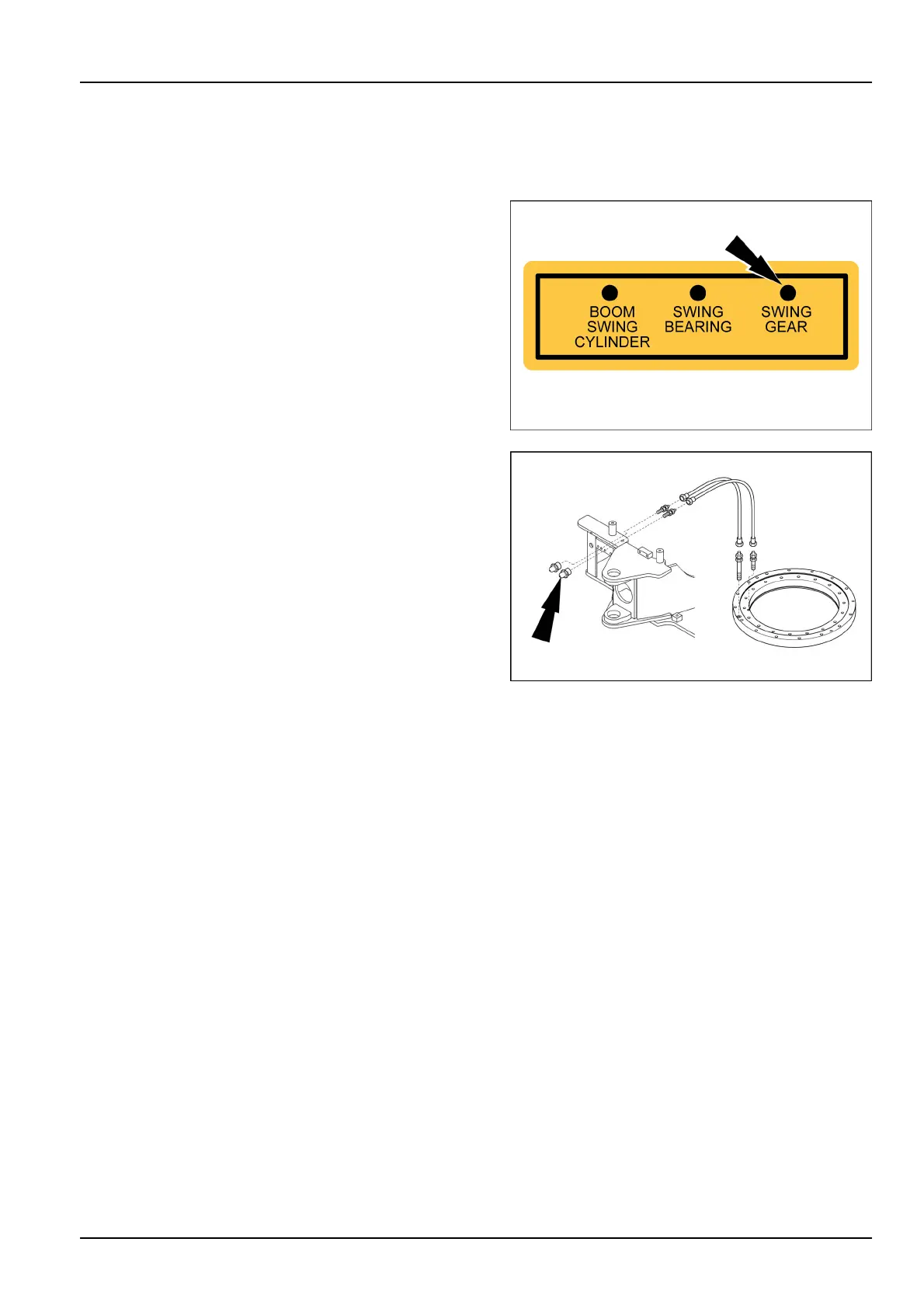

Usingagreasegun,injectgreaseofthespeciedtype

inthegreasepointshowningure.

SMIL19MEX0723AA1

SMIL18MEX0755AA2

6-31
