CASE CONSTRUCTION CX17C - Operators Seat

3-CONTROLSANDINSTRUMENTS
Operator'sseat
Operator'sseat
Inordertooperatethemachinecorrectlyandwithmaximumefciencyandcomfort,adjusttheseattosuittheweight
andsizeoftheoperator.

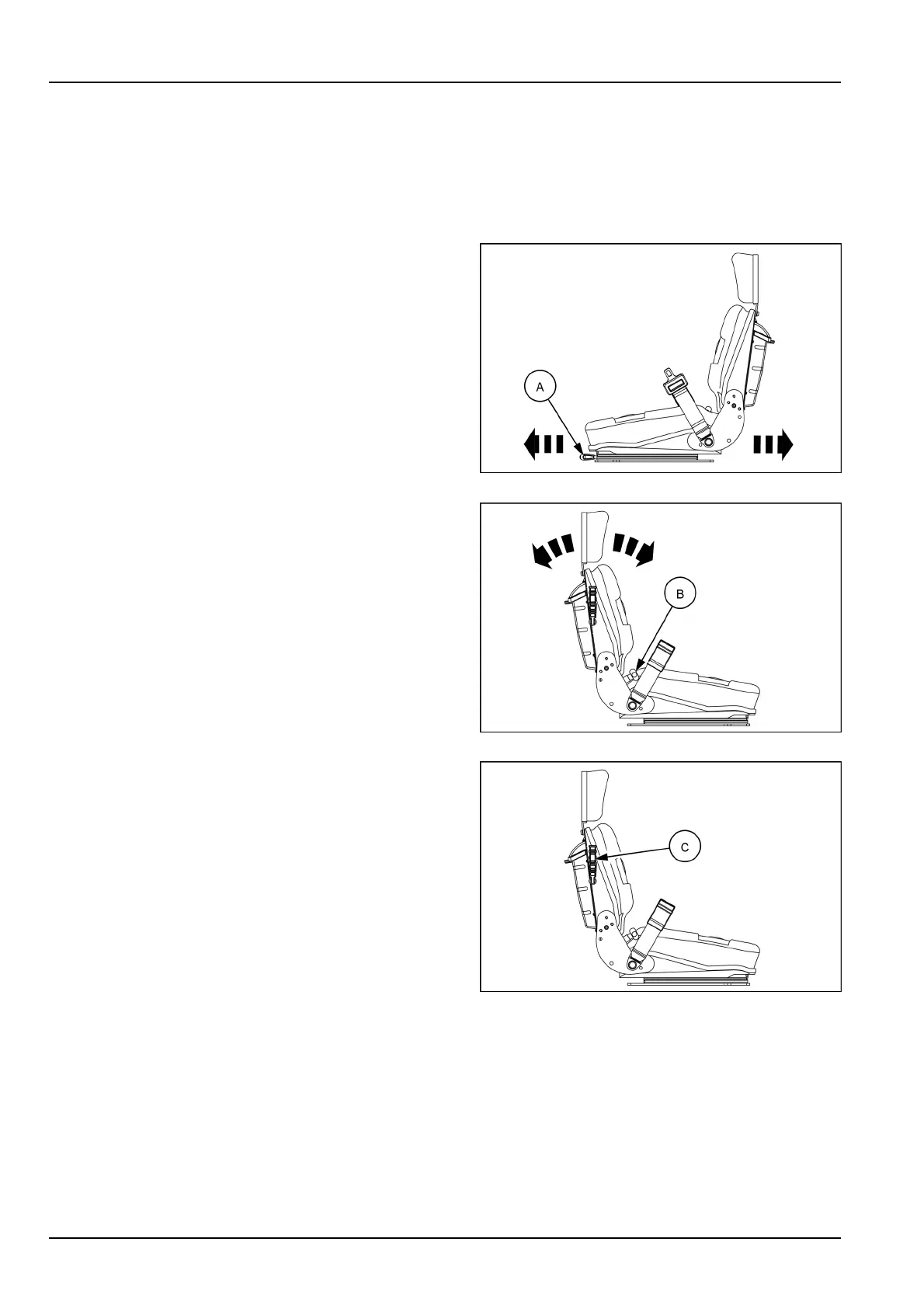

Foreandaftadjustment
•
Holdthelever(A)intheraisedposition.
•
Slidetheseattotherequiredposition.
•
Releasethelever(A).
SMIL16MEX2318AA1
Seatbackangleadjustment
•
Holdthelever(B)intheraisedposition.
•
Movewiththeseat-backtothedesiredposition.
•
Releasethelever(B).
SMIL16MEX2319AA2
Weightadjustment
•
Lowerthelever(C)todecreasetherigidityofthesus-
pension.
•
Raisethelever(C)toobtainhardersuspension.
NOTE:theweightadjustmentisforalloperatorweights
between45–136kg(99–300lb).
SMIL16MEX2319AA3
3-2
