5-TRANSPORTOPERATIONS
1.Checktheweight,length,widthandheightofthema-
chinereferringtothechapter2,specicationwhenyou
aregoingtohoistthemachine.
2.Uselongwireropeandstaytokeepthedistancewith
themachineasitshouldavoidtouchingwiththema-
chine.
3.Putarubberplatecontactwithwireropeandmachine
topreventdamage.
4.Placecraneontheproperplace.
5.Installthewireropeandstayliketheillustration.
6.Themaximumangleofthefrontwireropemustnot
exceed60degreesandtheangleoftherearwirerope
45degrees.
NOTE:Ifthereisnostay,keeptheangleoftherear
wireropebelow15degreestoavoidinterferencewith
themachine.
NOTICE:itisimperativetousetheslingpointsindi-
catedbythemachinedecals.
NOTICE:themachinemustbehandledveryslowly
andhorizontally.
NOTICE:keepthewireropeliftinganglebelow45°.

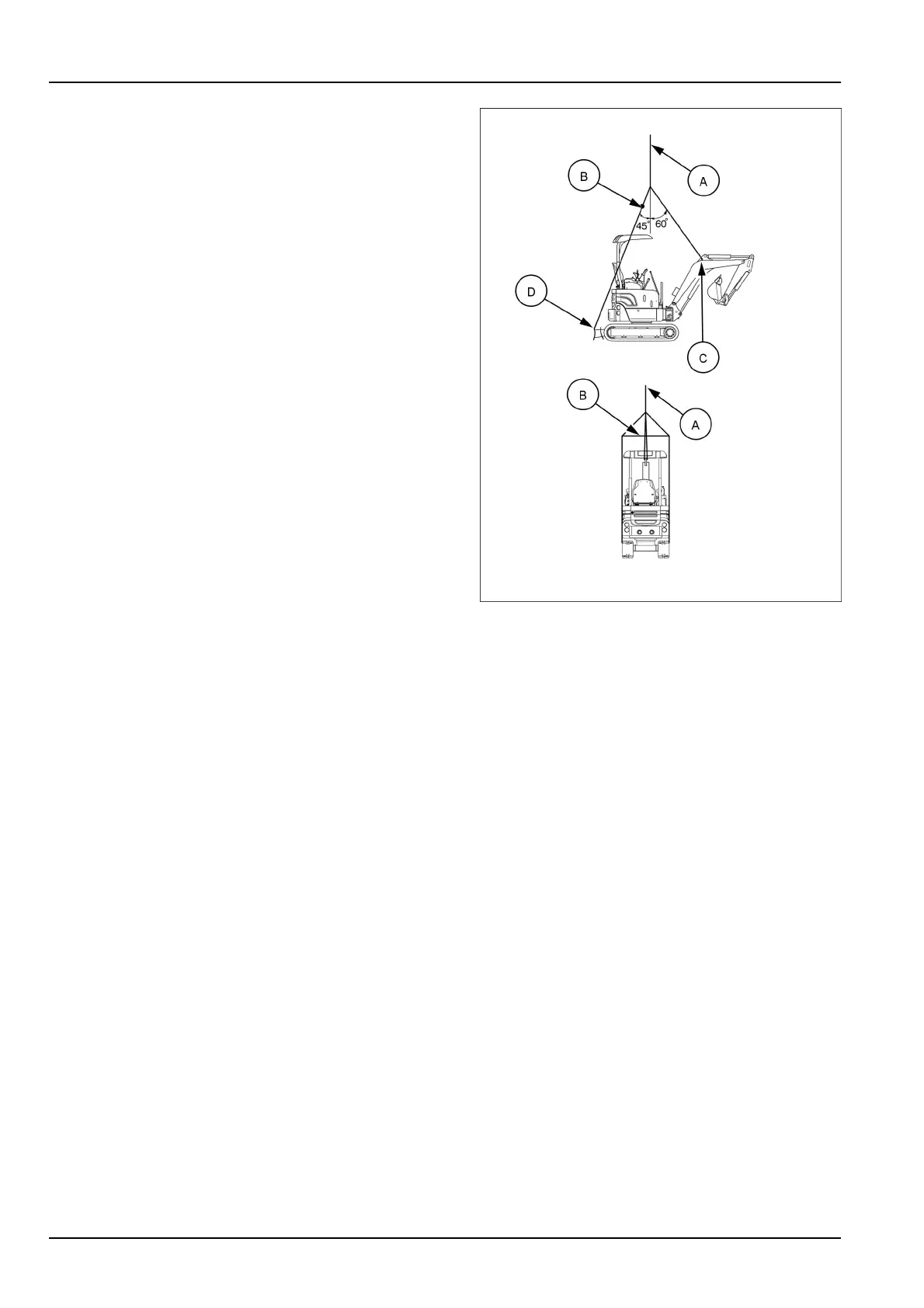

(A)Wirerope
(B)Stay
(C)Boomhoistingpoint
(D)Dozerbladehoistingpoint
SMIL19MEX0851BA1
5-6
