6-MAINTENANCE

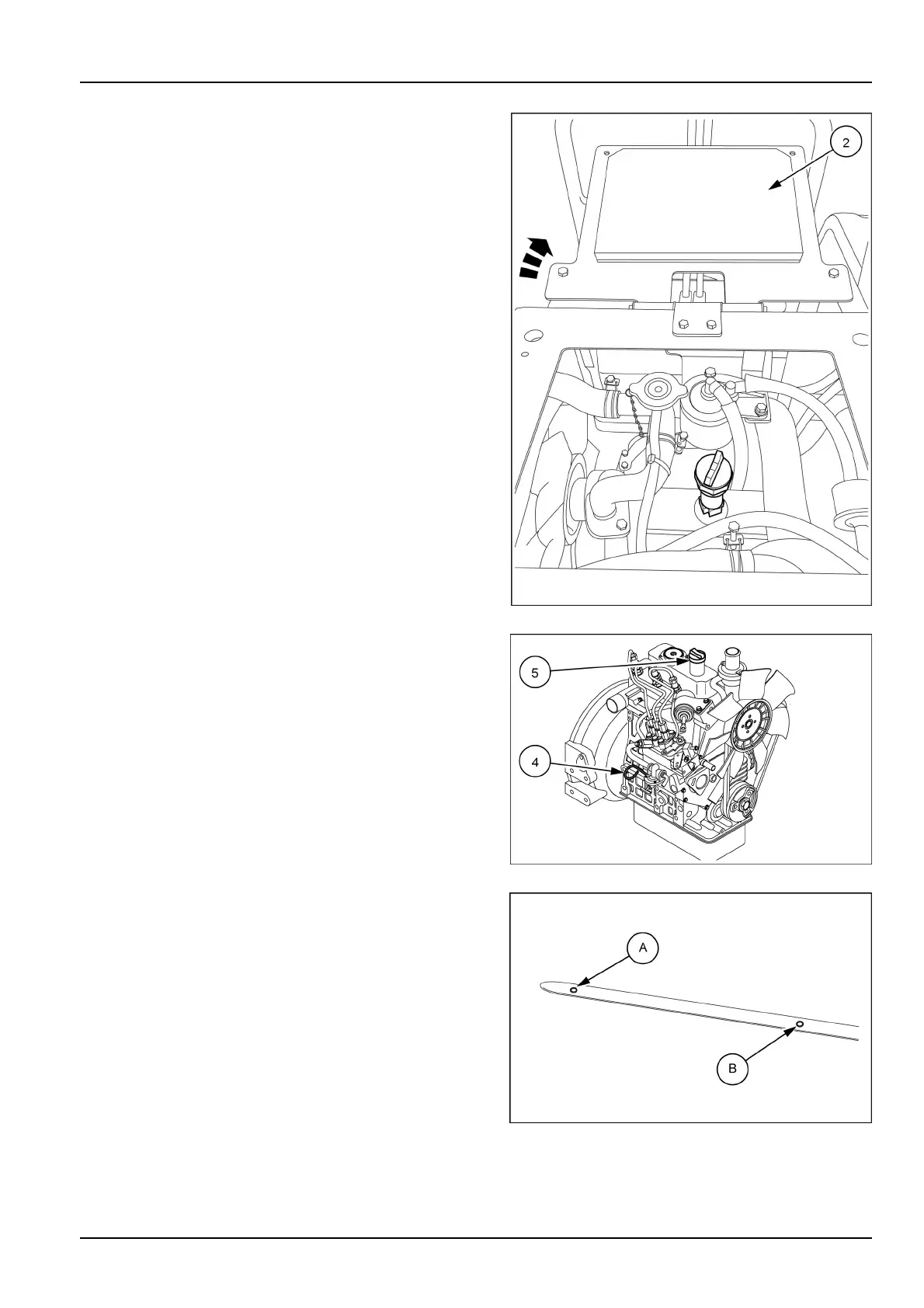

3.Liftandoverturnforwardtheengineaccessdoor(2)
withtheoperator’sseataboveit.
SMIL17MEX2766BA2
4.Removethedipstick(4),andwipeoiloffthedipstick
withacleancloth.
5.Reinsertthedipstick(4)intotheguidetubeasfarasit
willgo,andthentakeitout.
SMIL17MEX2771AA3
6.Theengineoillevelisoptimalwhenthelevelisbetween
thelower(minimum)andtheupper(maximum)marks
(A).
7.Iftheoillevelisatorbelowthelowermarkonthe
dipstick(1),removethellplug(5)andpourinoiluntil
thelevelreachestheuppermark.
NOTE:makesurethattheoillevelisnotabovetheupper
mark(maximum)onthedipstick(4).Doingsowillcause
suchproblemsaspoorfueleconomyandanabnormalrise
incoolanttemperature.
8.Installthellplug(5).
SMIL14CEX2746AB4
