6-MAINTENANCE

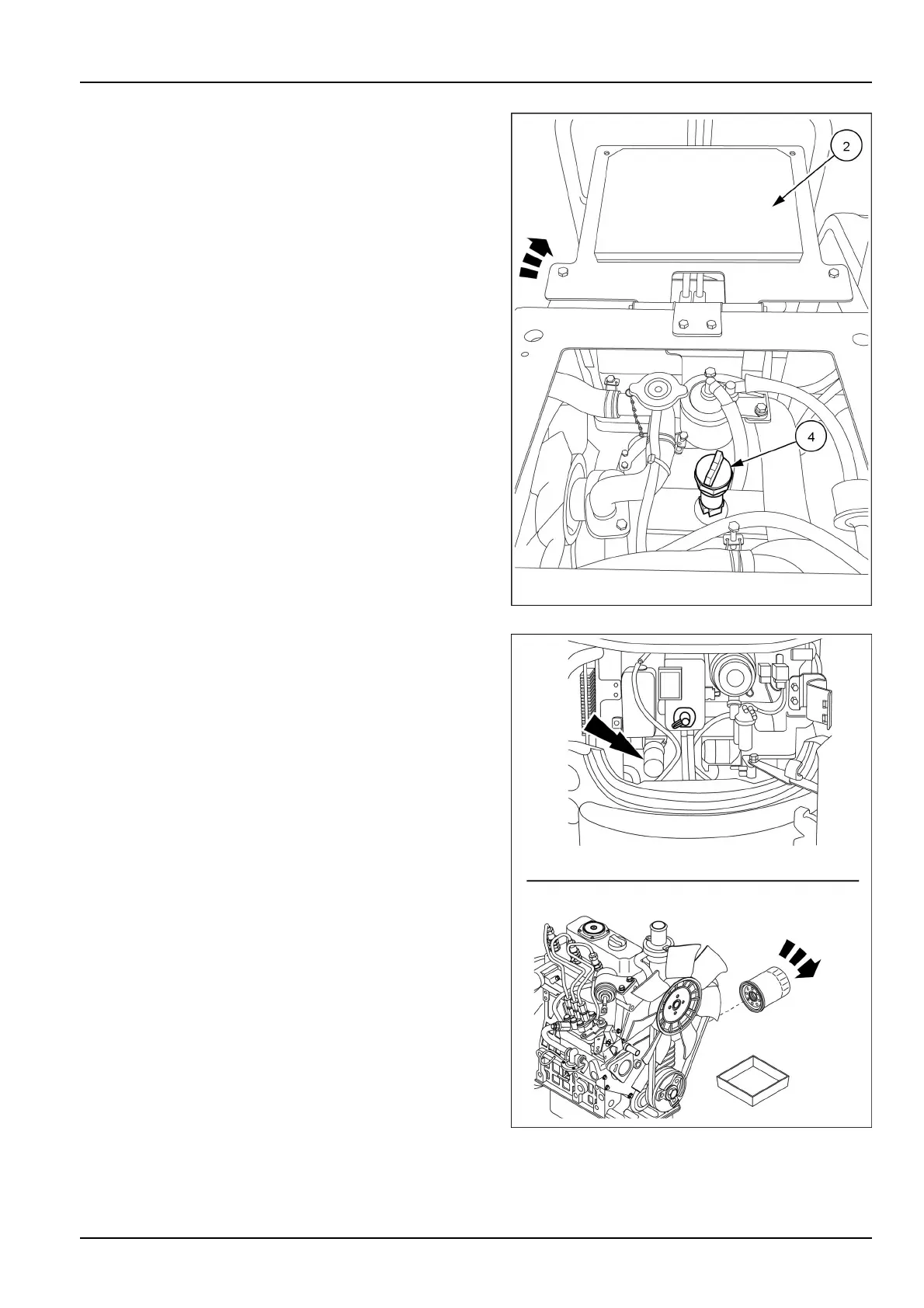

4.Liftandoverturnforwardtheengineaccessdoor(2)
withtheoperator’sseataboveit.
5.Removethellcap(4).
6.Removethedrainpluganddraintheoil.
7.Installthedrainplug.
•
TightenthedrainplugM22x1.5withcoppergasket
to64–73N·m(47.2–53.8lbft)
•
TightenthedrainplugM22x1.5withrubbercoated
gasketto45–53N·m(33.2–39.1lbft)
SMIL17MEX2766BA3
8.Cleantheareaaroundtheengineoillterandremove
it.
SMIL17MEX2772BA4
6-35
