6-MAINTENANCE

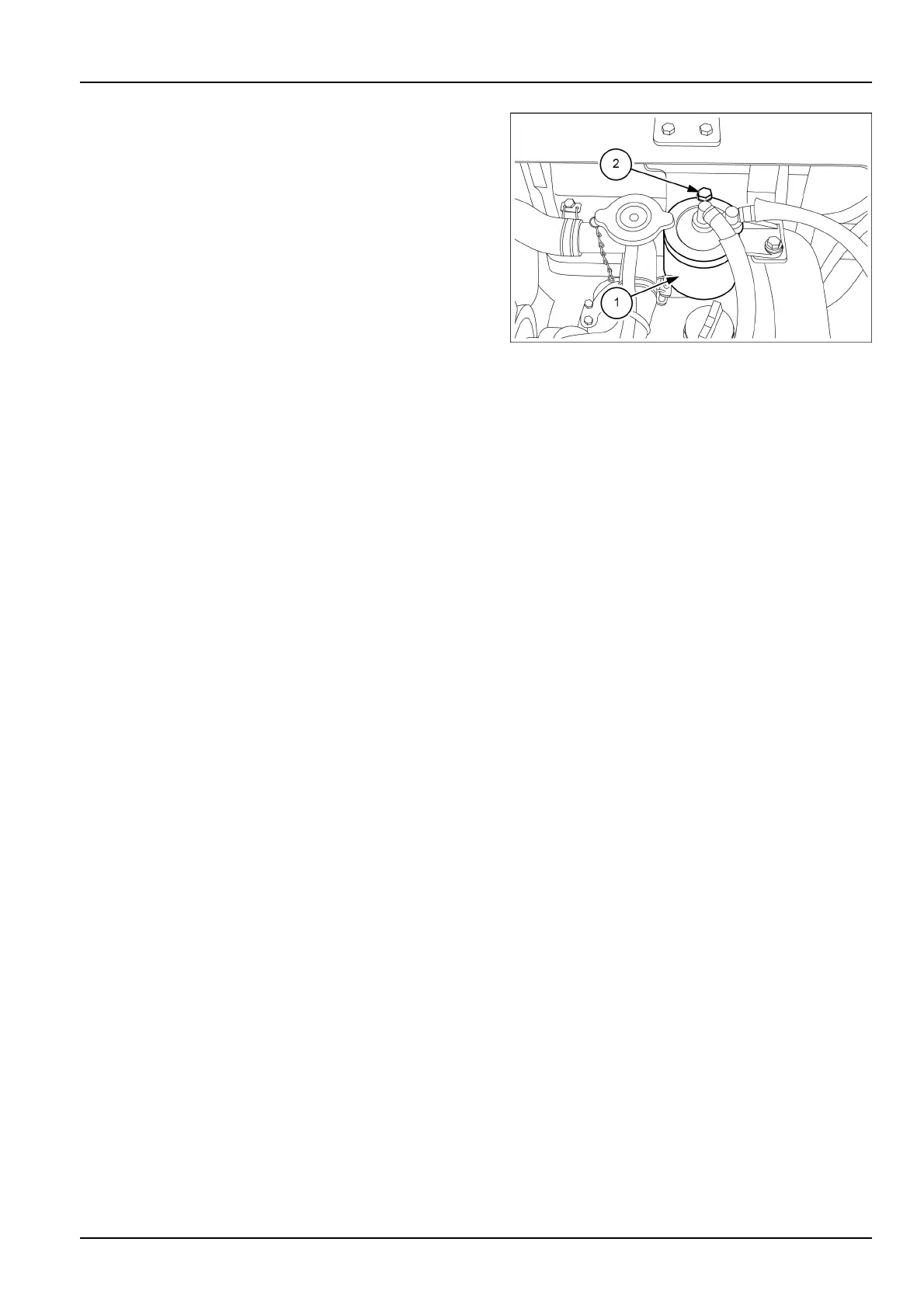

6.Removethefuellter(1)withthespecicwrench.

7.Applyathinlmoffueltothesurfaceofthenewfuel

ltergasketbeforetightenit.

8.Installanewlterelement.

9.Loosentheairventplug(2)tolettheairout.Start

engineandcheckforfuelleakage.

10.Bleedthefuelsystem.Refertopage6-14.

SMIL19MEX0609AB4

6-47
