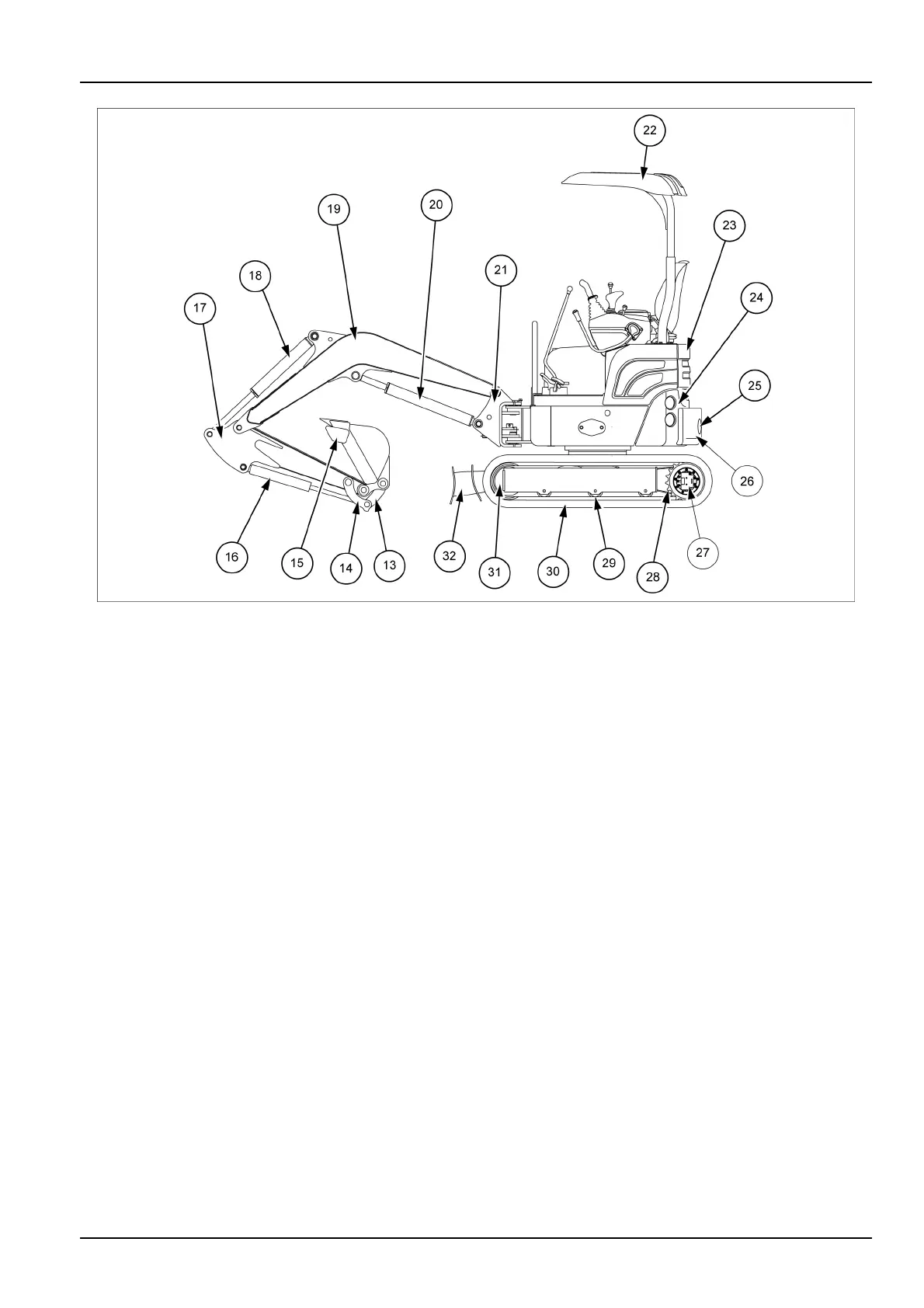

13.Bucketcontrolrod23.
Mufer
14.Bucketcontrollink24.
Counterweight
15.
Sidecutter
25.
Muferpipe
16.
Bucketcylinder
26.
Additionalcounterweight(optional)
17.
Dipper
27.Travelmotor
18.
Dippercylinder
28.
Sprocket
19.Boom29.Trackroller
20.
Boomcylinder
30.Track
21.
Swingpost
31.Idlerwheel
22.
Canopy
32.Dozerblade
