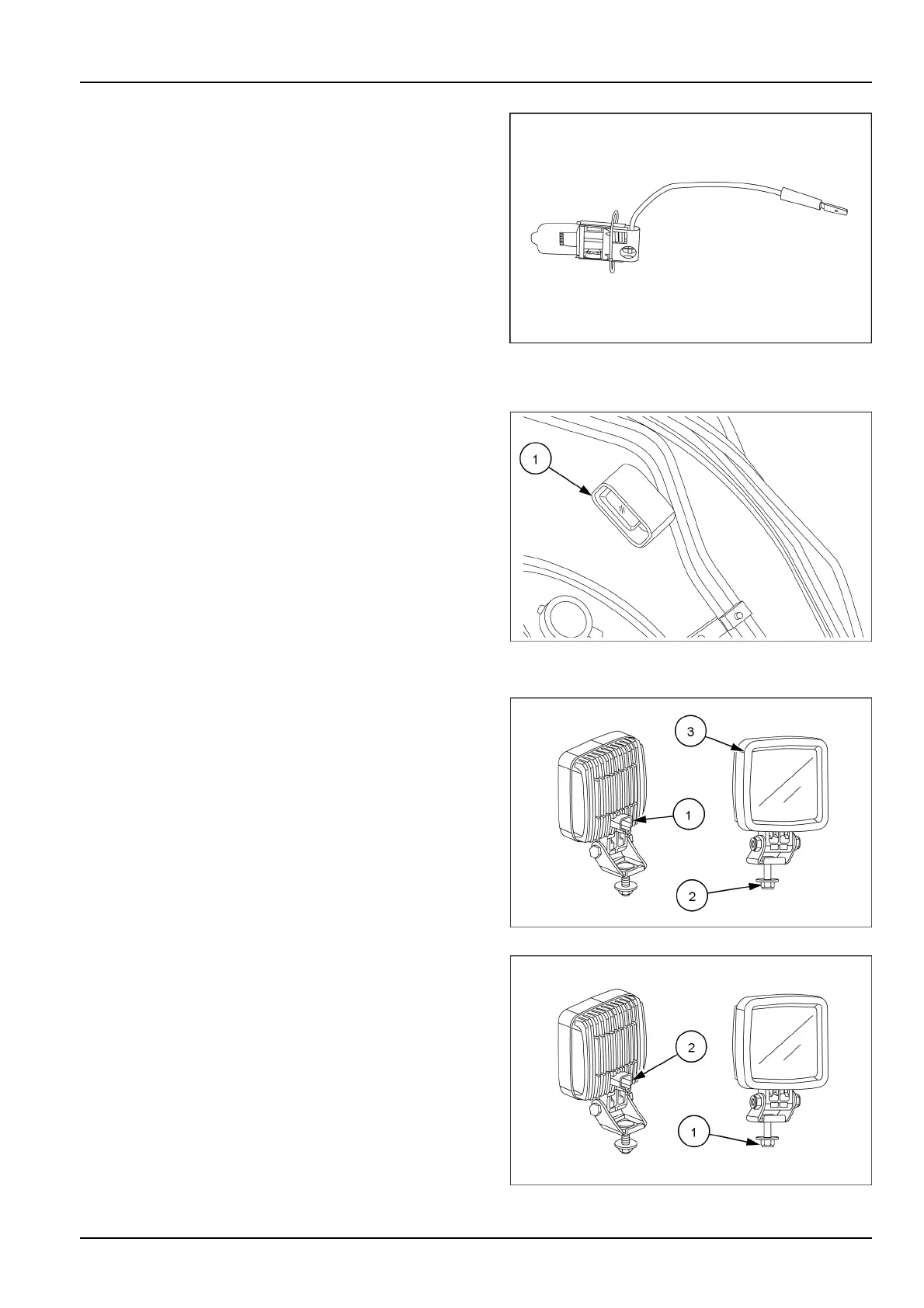

CASE CONSTRUCTION CX17C - Page 185

6-MAINTENANCE
4.Installanew55Wbulbintheworkinglight.
NOTE:makesureofthecorrectpositionofthebulb.
5.Pushtheclipinwardsinordertolockthebulb.
6.Connectthebulbplug.
7.Puttheworkinglightbackintopositionandtightenby
meansofthetworetainingscrews.
SMIL16MEX0938AA4
LEDworkinglights
LEDlightsarelocatedonthearm(1)ofthemachine.
SMIL19MEX0278AA5
TochangetheLEDlightsproceedasfollows:
1.Disconnectthepowerconnector(1).
2.LoosentheM8self-lockingnut(2)andreplacetheLED
light11W(3).
SMIL19MEX0290AA6
3.TightentheM8self-lockingnut25N·m(18.4lbft)(1).
4.Connectthepowerconnection(2).
SMIL19MEX0290AA7
6-67
