9-ACCESSORIES

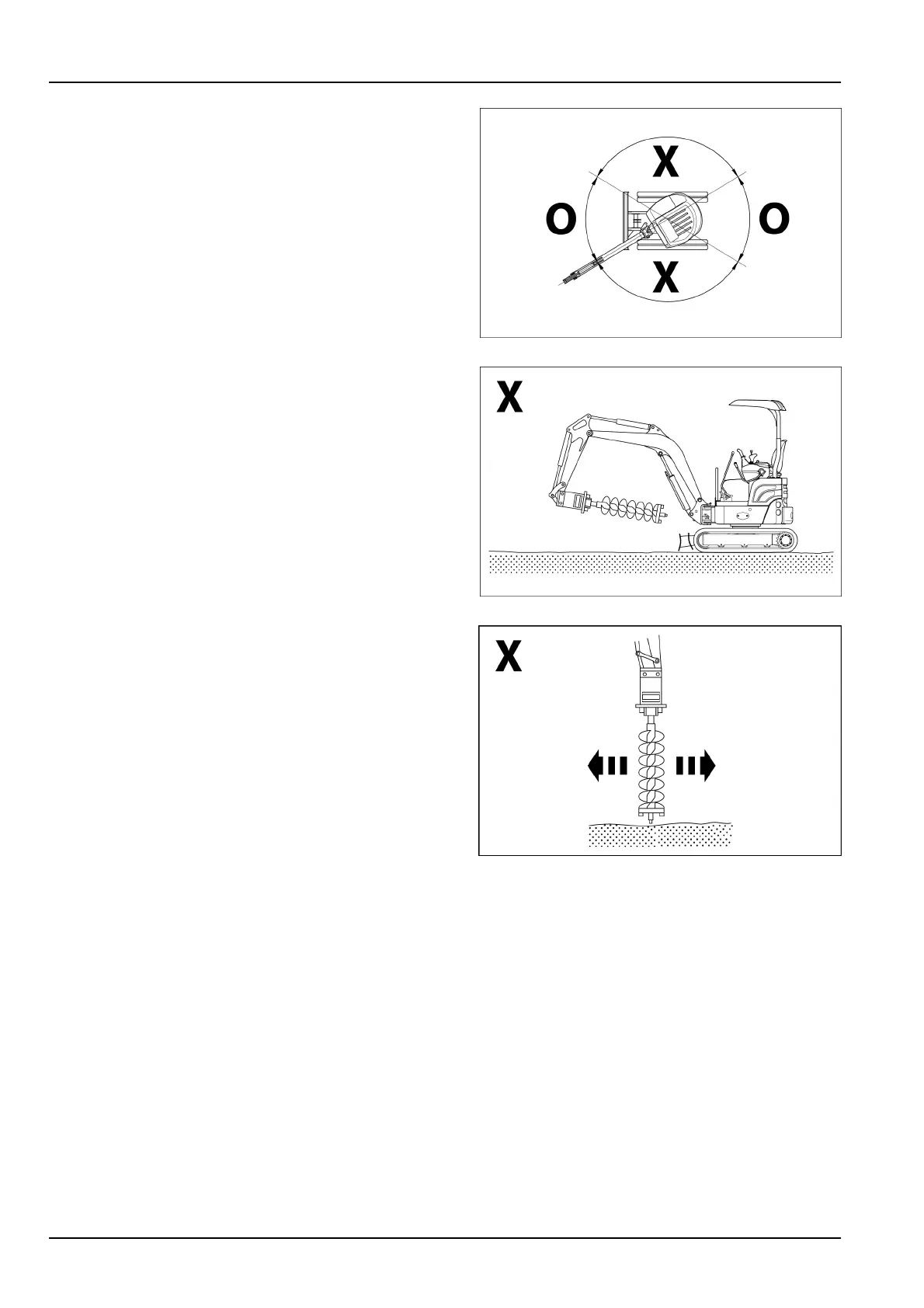

Donotoperatetheaugertothesideofthemachine.The

machinemaybecomeunstableandundercarriagecom-

ponentslifemaybereduced.

SMIL16MEX0465AA27

Operatetheexcavatorcarefullytoavoidhittingtheboom

withthehydraulicauger.

SMIL18MEX0619AA28

Donotoperatetheaugerwhilestriking.Thiscancause

damagetotheworkingdeviceandtotheswingsystem.

SMIL17MEX2812AA29

9-16
