3-CONTROLSANDINSTRUMENTS

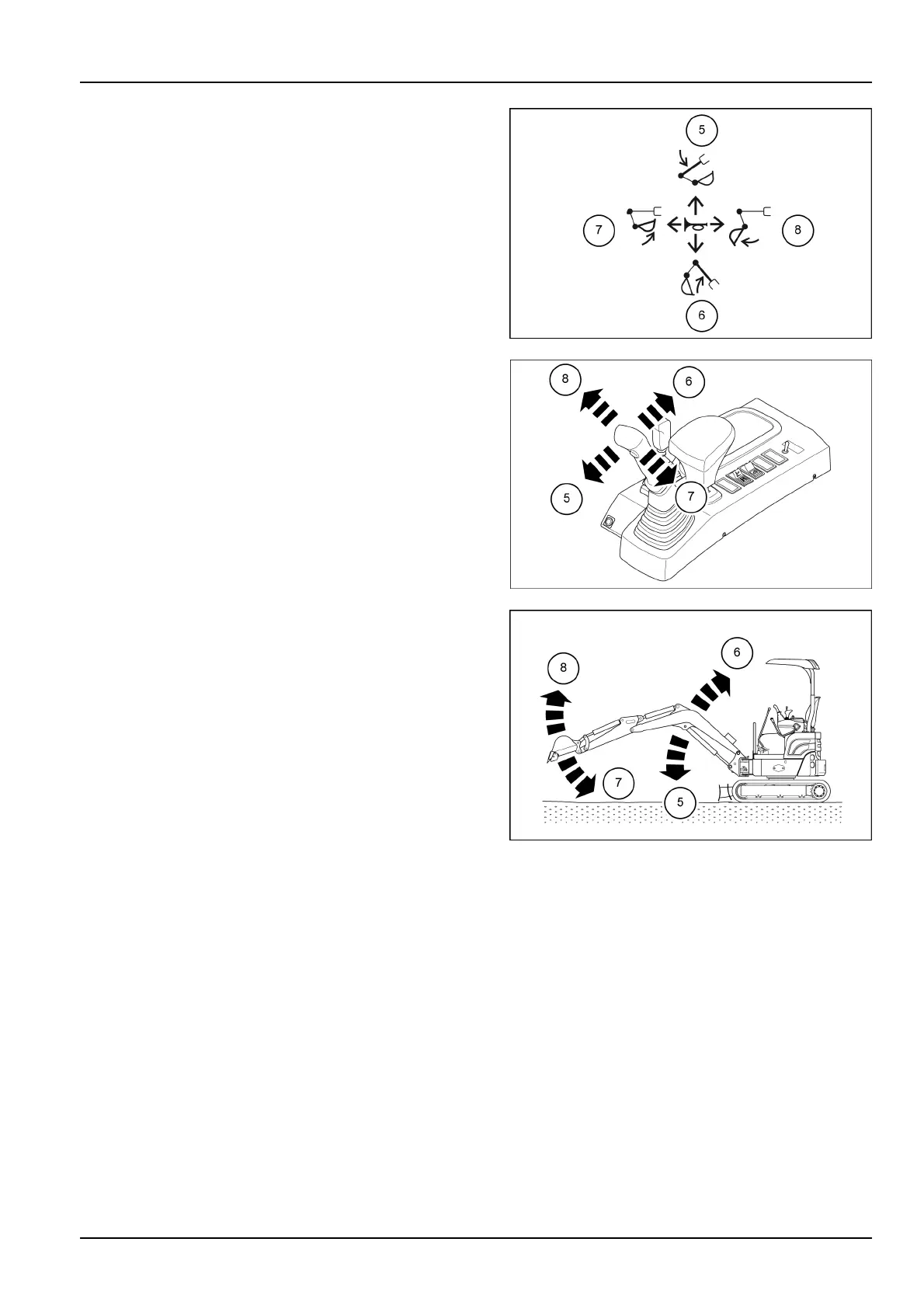

Right-handcontrollever:

5.Theboomlowers.

6.Theboomraises.

7.Thebucketretracts(lling).

8.Thebucketextends(dumping).

NOTE:themovementspeedoftheboomorofthebucket

dependsonthecontrollevertiltangle.Intheintermediate

positiontwomovementscanbeobtainedsimultaneously.

SMIL16MEX3076AB4

SMIL16MEX2324AA5

SMIL16MEX2316AB6

3-5
