4-OPERATINGINSTRUCTIONS

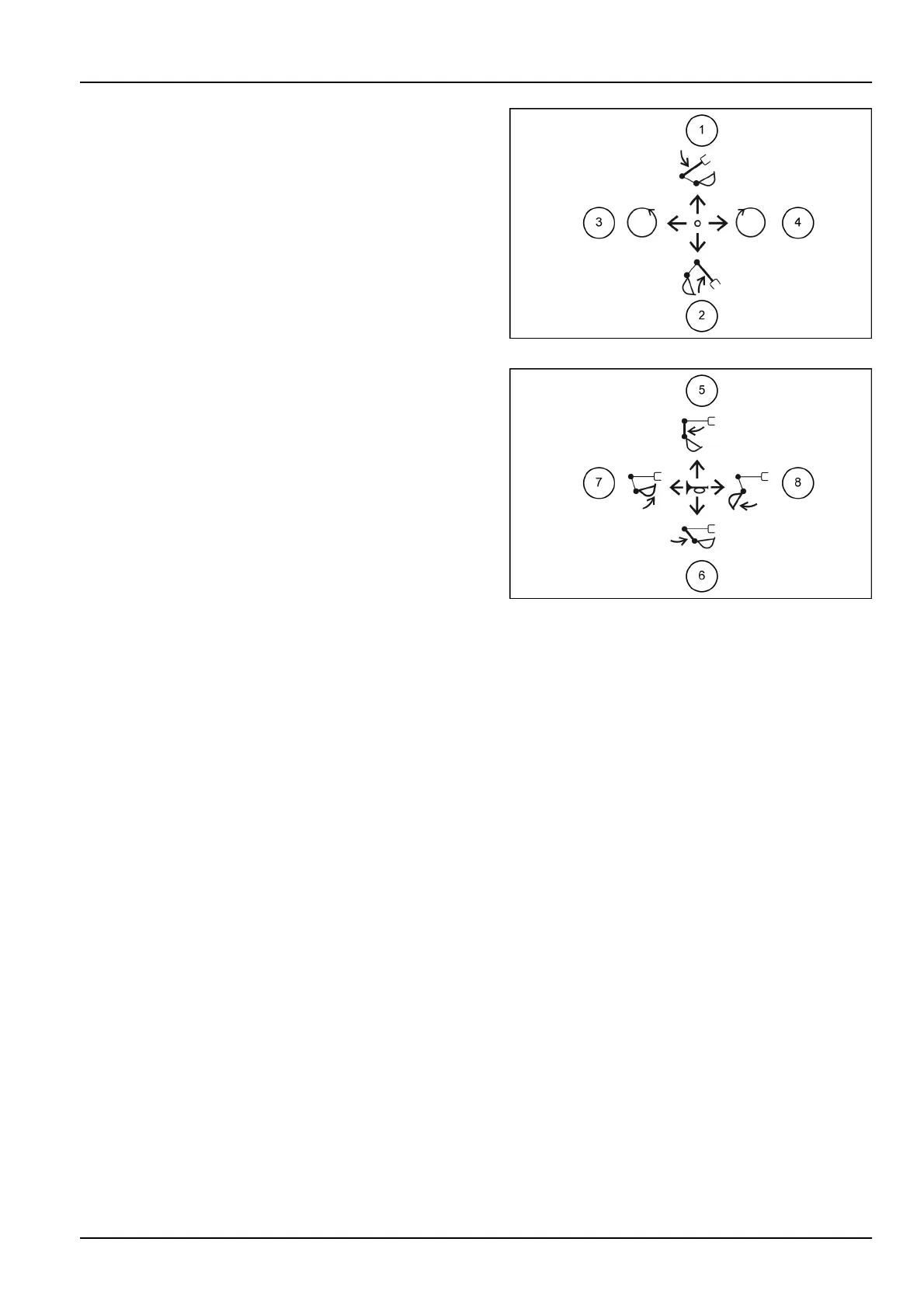

Pattern:SAEtype

Left–handcontrollevercontrolfunction

1.Boomlowering

2.Boomraising

3.Swingleft-hand

4.Swingright-hand

SMIL16MEX3077AB6

Right–handcontrollevercontrolfunction

5.Armout

6.Armin

7.Bucketin

8.Bucketout

SMIL16MEX3079AB7

4-15
