SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 1
58-7

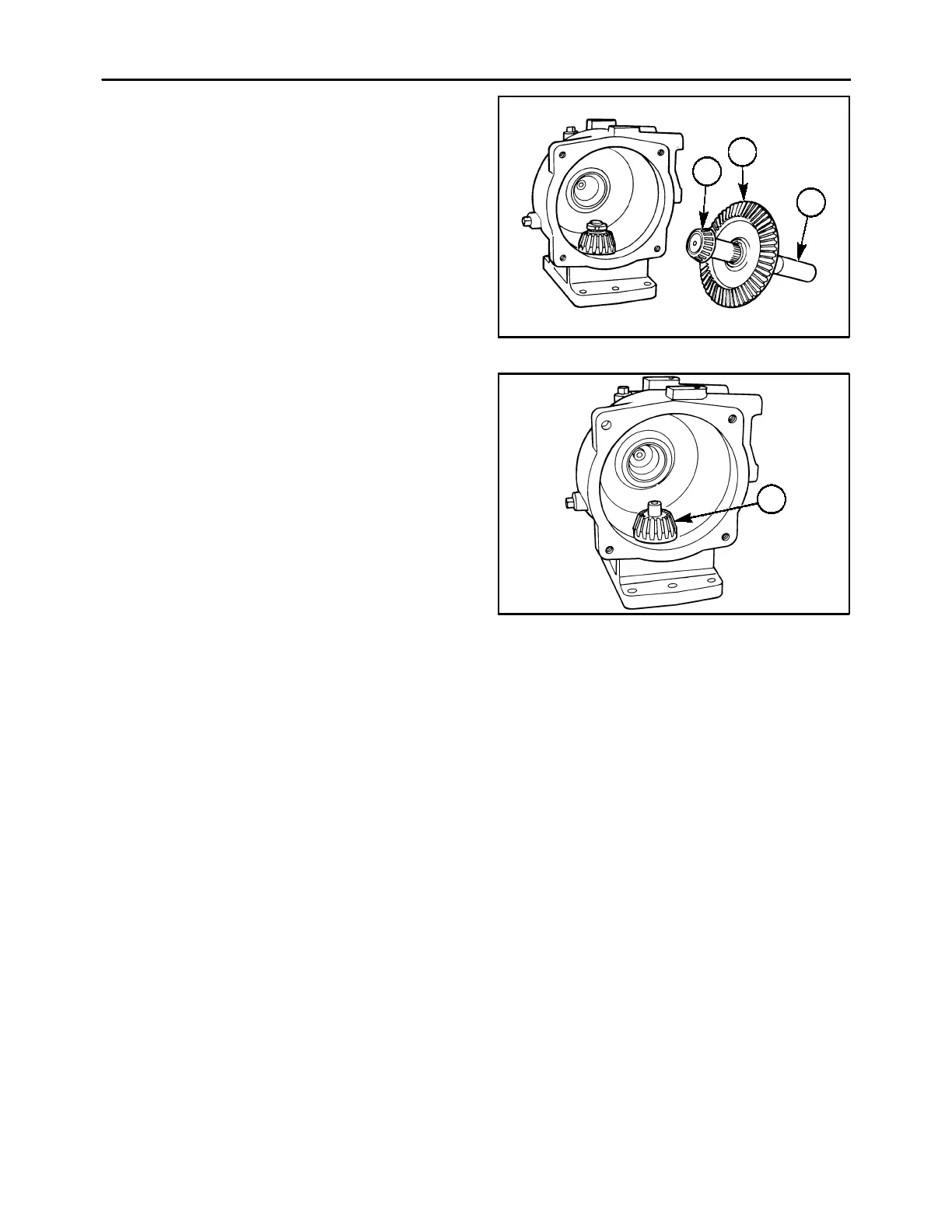

3. The input shaft, 1, may stay in the gearbox, or
come out with the cover; slide the shaft out of ei-
ther component. Disassemble the input shaft by
pressing the gear, 2, and outer bearing cone off
of the shaft; use a split bearing puller to aid in
pressing off the inner bearing, 3. Drive the bear-
ing cup and the seal out of the cover.
600-4-9
1
2
3
15
4. Drive the roll pin out of the output shaft, and re-
move the special castellated nut. Slide the pinion
gear, 1, and bearing assembly up off the shaft,
and slide the output shaft out the bottom of the
gearbox. The shaft and pinion gear may be fur-
ther disassembled by removing the bearings.
5. Remove the bearing cups, seal and snap ring
from the gearbox housing.
NOTE: It will be necessary to use a slide hammer to
remove the bearing cups from the housing.
600-4-10
1
16
