SECTION 39 -- FRAMES -- CHAPTER 1
39-2
DISASSEMBLY

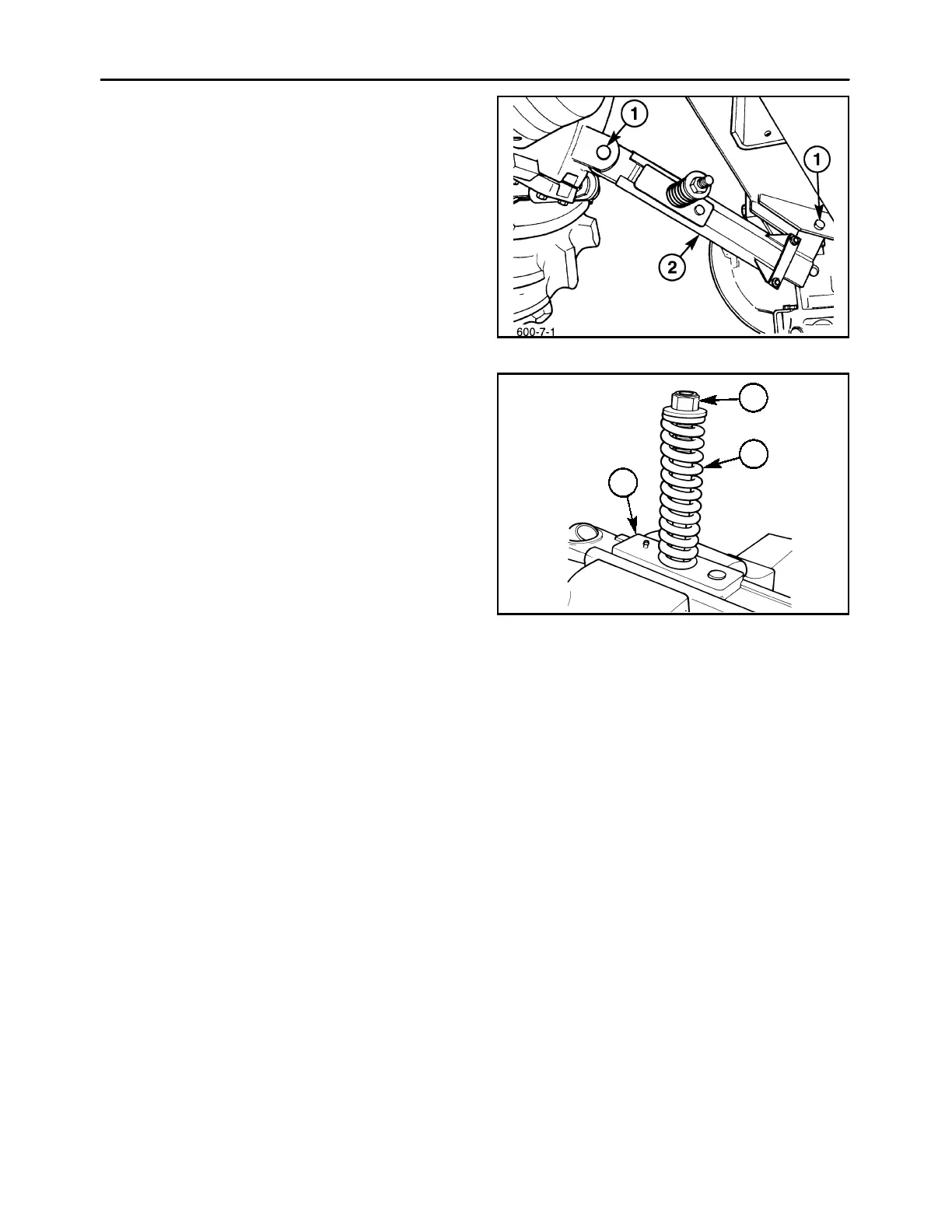

1. Lower the mower onto a flat level surface. Re-
move the cotter pins and slide the pins, 1, out to
remove the breakaway link assembly, 2, from the
mower.
1
2. Clamp the assembly in a vise with the spring
facing up. Remove the nut, 1, washer and spring,
2; the pawl, 3, may now be lifted off the slide
assembly.
600-7-2
1
2
3
2
