Case MDX71 - Bevel Gearbox Breather; Drive Module; Drive Module Breather

SECTION 00 -- GENERAL INFORMATION -- CHAPTER 3
00-4

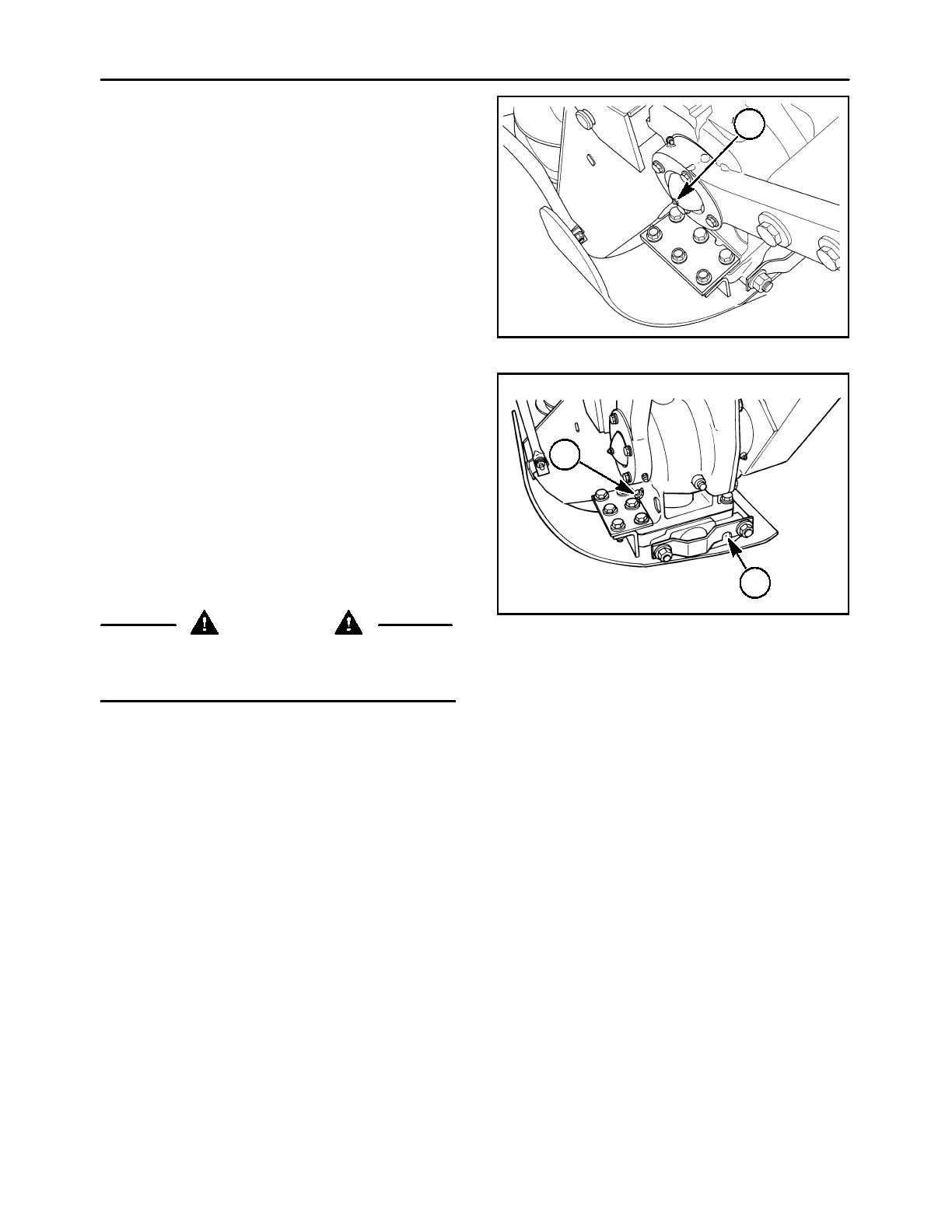

BEVEL GEARBOX BREATHER
Check and clean the bevel gearbox breather, 1, ev-
ery 200 hours or yearly, whichever occurs first.
19990604
1
2
DRIVE MODULE
Check the drive module oil every 50 hours. The oil
level should be at the bottom of check plug, 1. Re-
move breather/fill plug, 2, to add oil.
Change the drive module oil after the first 50 hours
of use to remove any contaminants from the break-in
process. After this, change the oil every 200 hours or
yearly, whichever occurs first. Drain the oil by raising
the cutter bar to the transport position and removing
plug, 1. The drive module holds 300 ml (10 oz.). The
same plug is used to drain and check the oil.
CAUTION
Lower the three-point hitch to support t he cutter
bar on blocking prior to draining the oil. Ensure
the transport lock is engaged.
Maintain oil level using API GL5 80W90 gear oil.
DRIVE MODULE BREATHER
Check and clean the drive module breather/fill plug,
2, every 200 hours or yearly, whichever occurs first.
1
2
19990605
