SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 2
58-10

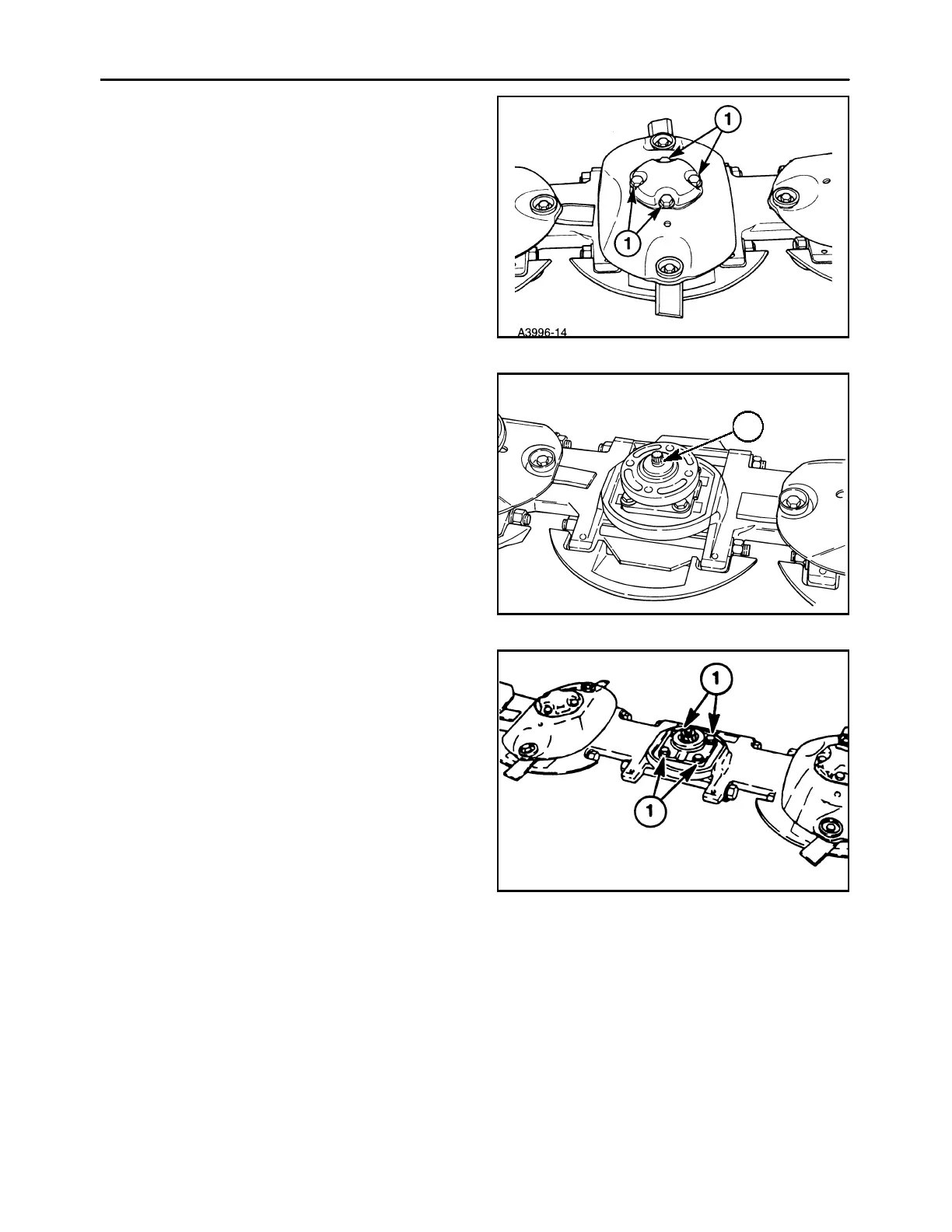

TOP CAP - REMOVAL
1. Block the cutter bar discs in place with a hard-
wood block to lock up the cutter bar, and remove
the disc of the affected module by removing the
four retaining bolts, 1, securing the disc and cov-
er to the disc hub.
18
2. Clean any material buildup from around the disc
hub and top cap assembly.
3. With the cutter bar blocking still in place, remove
the disc hub retaining bolt, 1.
19986023
1
19
4. Remove the hub, and remove any remaining ma-
terial buildup on top of module and top cap as-
sembly.
NOTE: Removing the disc hub will expose the upper
bearing in the top cap assembly. Cover this area with
a cloth, or use special tool cover to prevent contami-
nation from entering the bearing.
5. Remove the four retaining bolts, 1, and pry the
top cap assembly off the lower module.
20
