SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
35-3

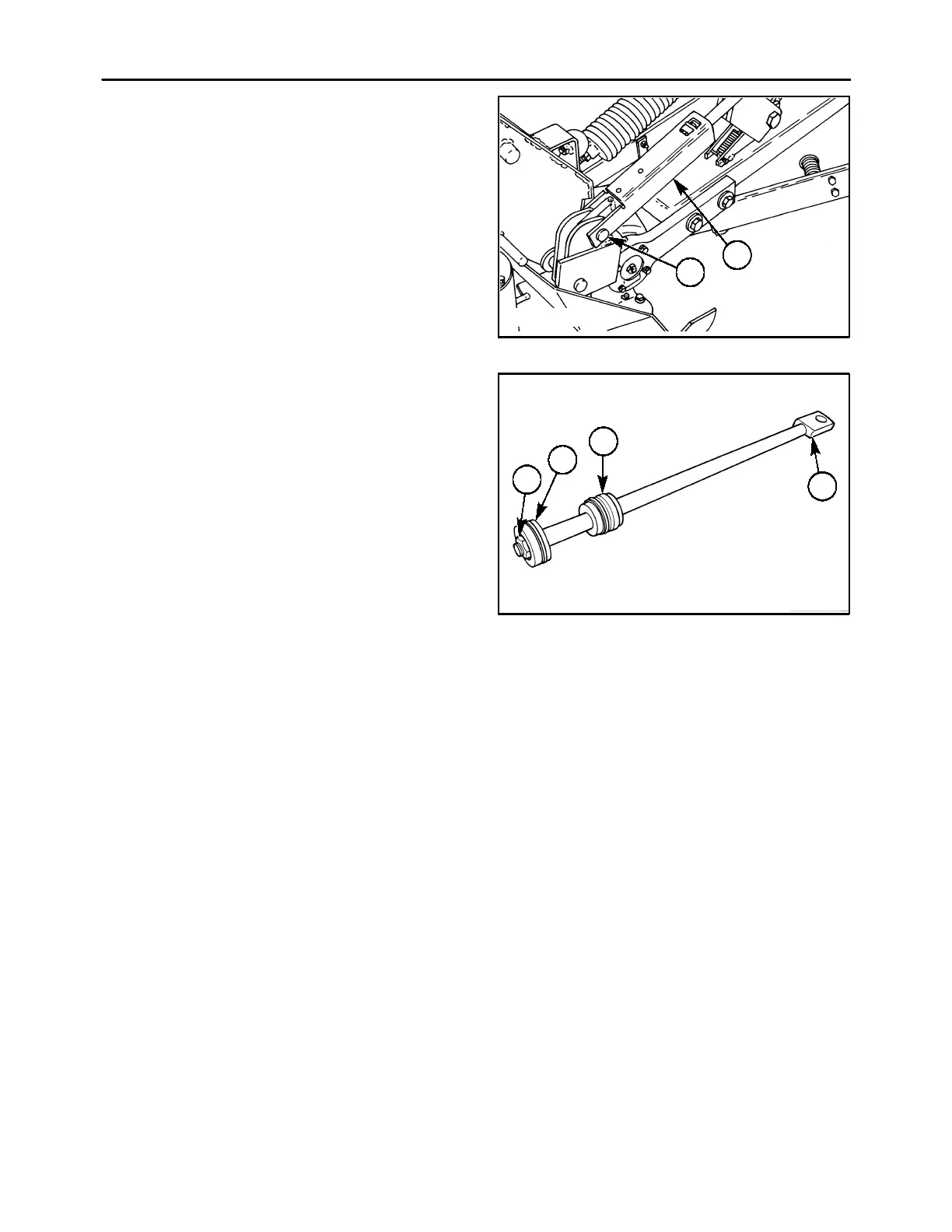

3. Disconnect the rod end of the cylinder from the
lift links by removing the cotter pin and sliding out
the shoulder pin, 1. Remove the cutter bar lift
stop channel, 2, and set it aside. Pull the com-
plete piston rod assembly out of the cylinder bar-
rel, and let the cylinder barrel hang from its
mount.
NOTE: All O rings and seals should be replaced, as
they will be damaged during disassembly.
A3671-10
1
2
3
4. Clamp the end of the piston rod, 1, in a vise, and
remove rod nut, 2. Slide the piston, 3, and the cyl-
inder head, 4, off the cylinder rod.
INSPECTION
1. Examine the parts for wear or nicks. Remove any
burrs inside the cylinder using emery cloth.
2. Remove all seals, carefully noting the lip position
on the seals.
600-6-3
1
2
3
4
4
