SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 2
58-30

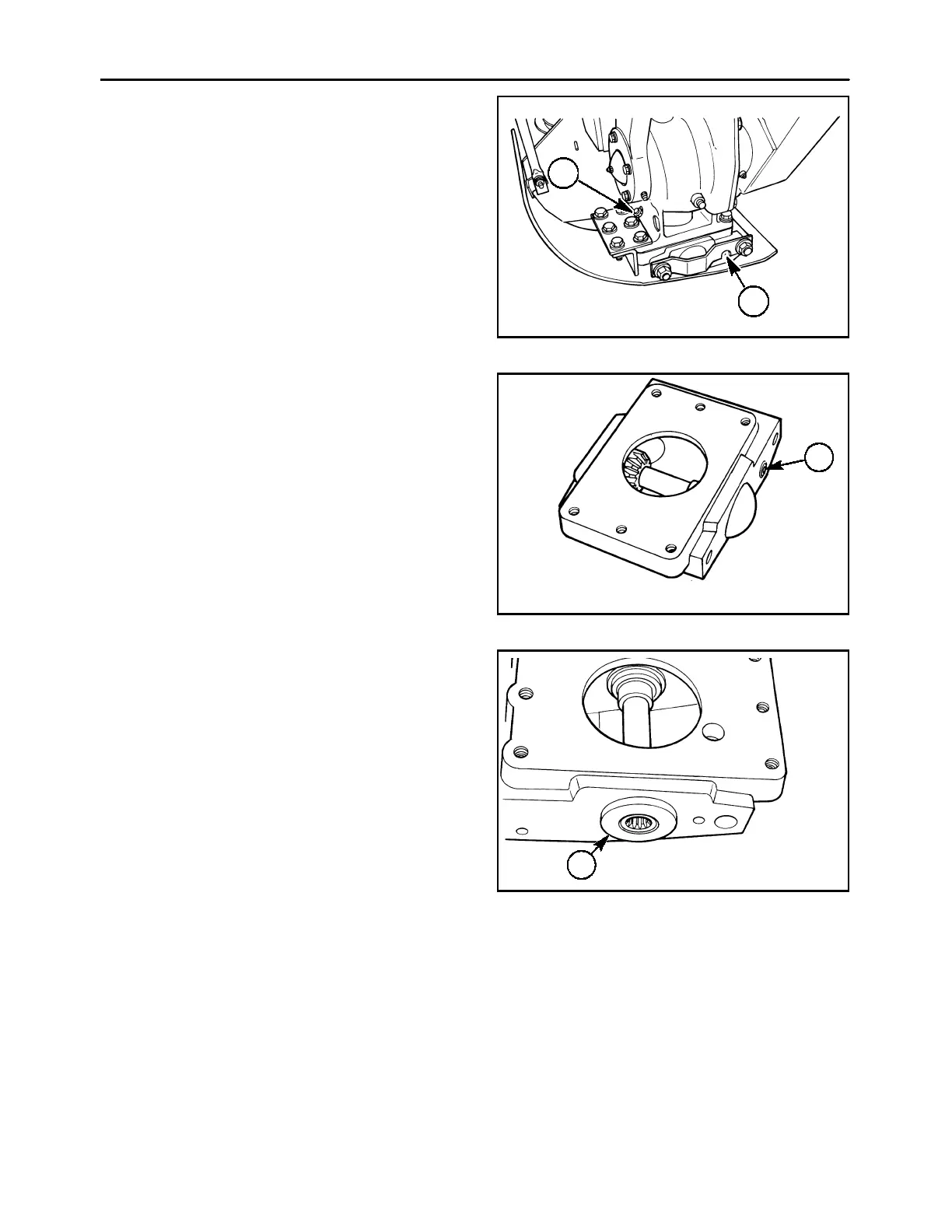

11. Level the cutter bar, and check the oil level in the
drive module by removing the check plug, 1: the
oil level should be at the bottom of the threaded
hole. Add API GL5 80W90 gear oil as necessary
through the breather/fill plug, 2, to obtain the cor-
rect oil level.
19990605
1
2
69
DRIVE MODULE - DISASSEMBLY
1. Drain the oil out of the drive module by removing
the check plug, 1, and positioning the module
over a drain tray.
600-5-12
1
70
2. Pry the seal, 1, out of the left side of the module,
using caution not to damage the shaft surface.
1
600-5-4
71
