TWIST LOCK - ASSEMBLY

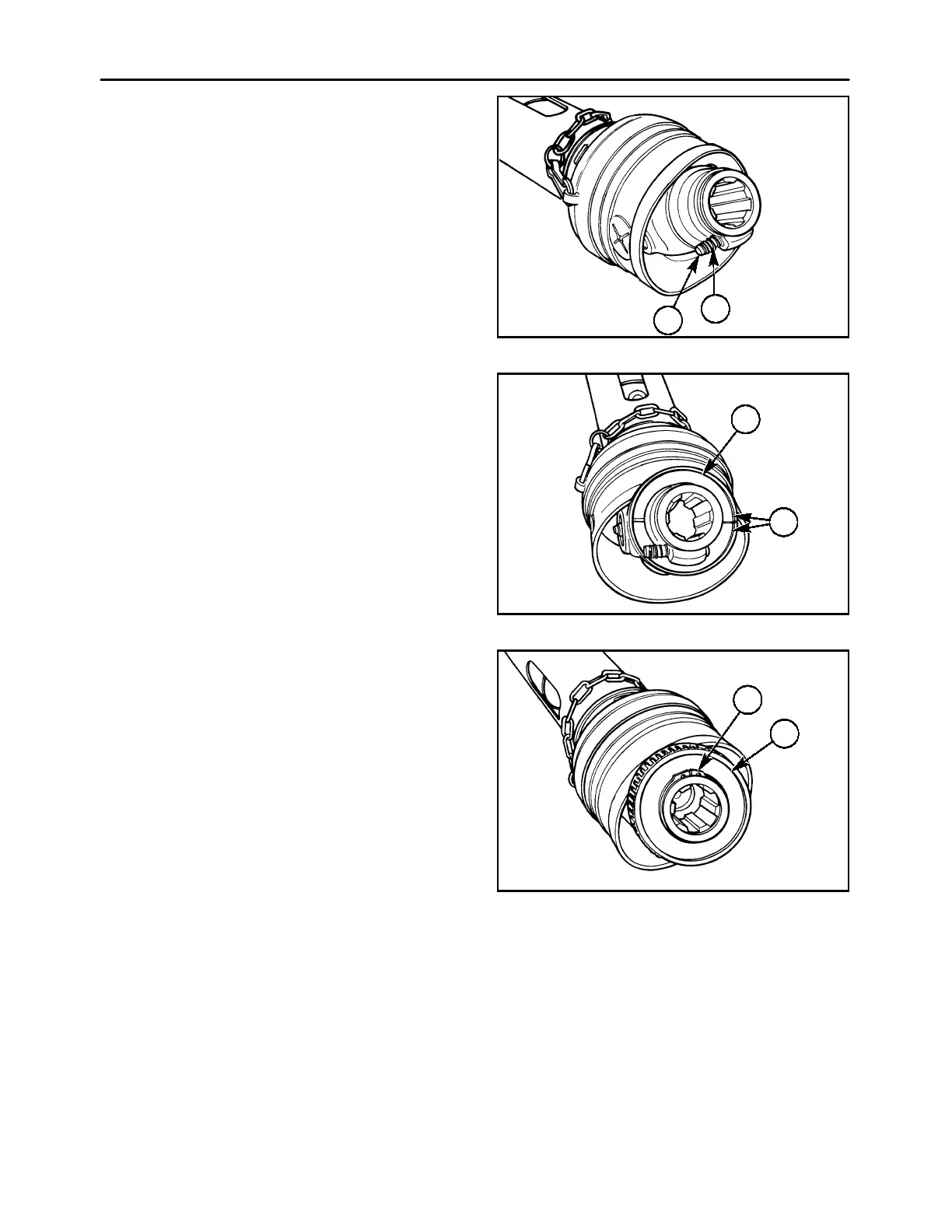

1. Slide the retaining pin, 1, into the bore in the
yoke, and work the spring, 2, on over the end of
the pin.
NOTE: The spring has a large and small end. Install
the large end over the pin first, and work the small
end over the end of the pin.
600-3-11
1
2
6
2. Install the inner cover, 1, by spreading the ends,
2, apart until it can be positioned over the groove
in the yoke.
600-3-10
1
2
7
3. Squeeze the inner cover onto the shaft, and slide
the collar, 2, onto the yoke, so that the ramp in-
side the collar lines up with the retaining pin, and
the back of the collar slides over the inner cover.
Install the snap ring, 1, to retain the assembly.
