SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 2
58-15

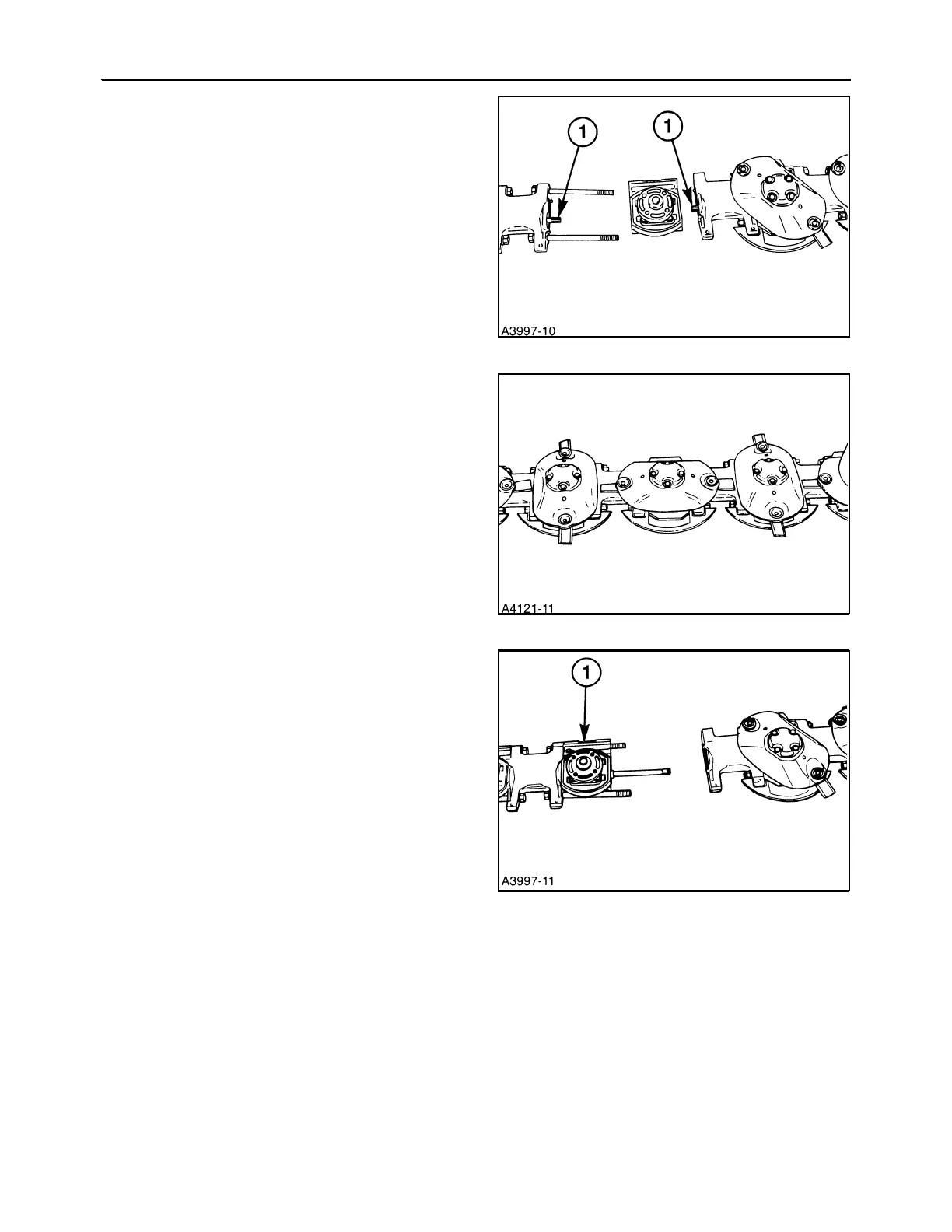

CUTTER BAR - REASSEMBLY
1. Prior to reassembly, remove the connecting
shafts, 1, from both spacers, and apply lubricant
to both ends of the shafts. Reinstall the connect-
ing shafts.
31
2. It is necessary to time the cutter bar discs on ei-
ther side of the replacement module during reas-
sembly to eliminate interference between the
knives. The discs are properly timed when they
are 90° apart, as shown. Rotate the discs of the
modules on either side of the replacement mod-
ule so that they are timed to each other.
32
3. Install the replacement module, 1, on one end of
the cutter bar so that the connecting shaft splines
into the pinion shaft, the tie bolts are properly
positioned and the module housing fits onto the
aligning dowels on the spacer.
33
