SECTION 31 -- IMPLEMENT POWER TAKE-OFF -- CHAPTER 1
31-7
SHIELDING - DISASSEMBLY

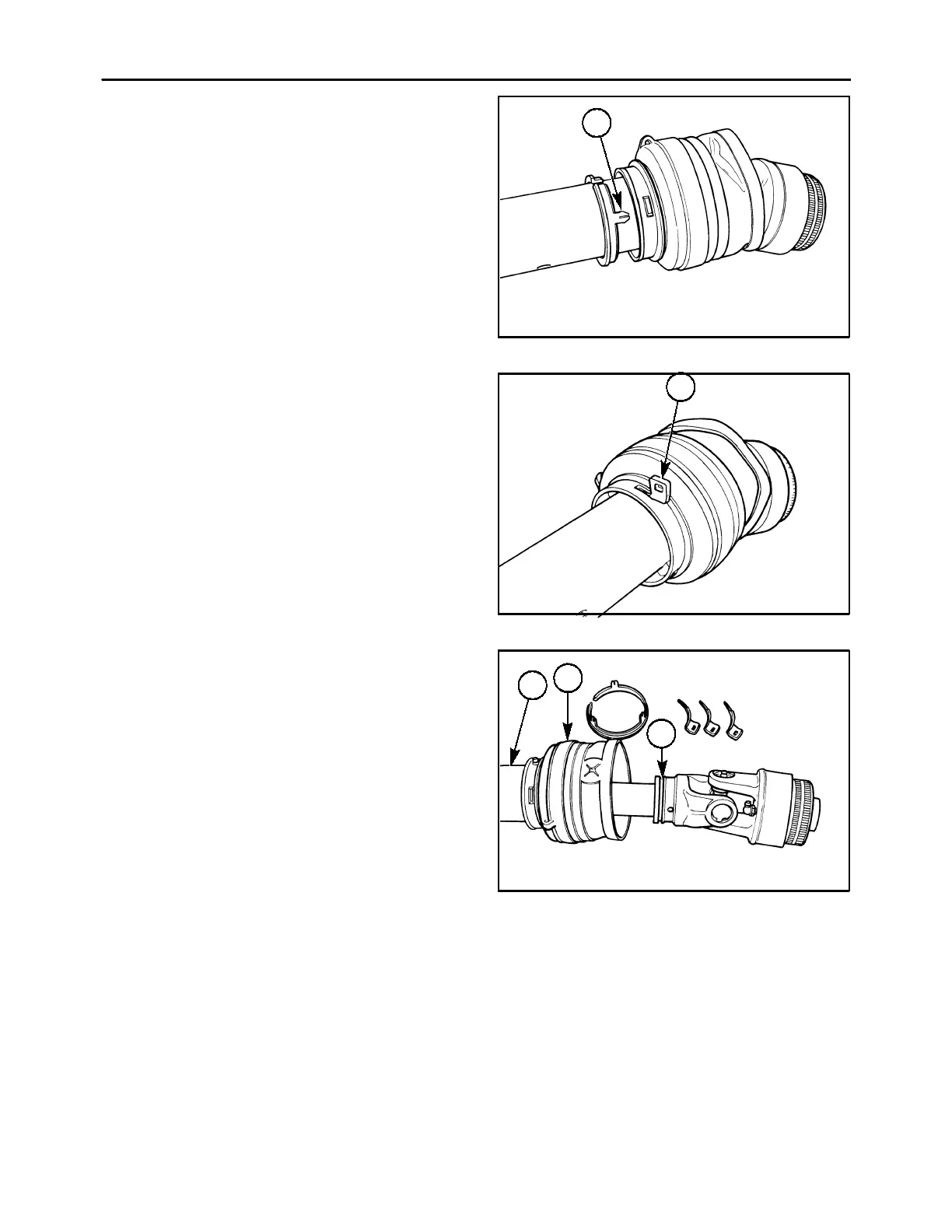

1. Pry out the shield clip, 1, using a flat bladed
screwdriver.
600-3-17
1
15
2. Use a small flat bladed screwdriver or pick to pry
the shield bearings, 1, upwards out of the
notches in the shield bell, and then pull them out
of the shield.
600-3-18
1
16
3. Slide the shield tube, 1, and bell, 2, off of the PTO
shaft.
600-3-19
1
2
3
17
