SECTION 31 -- IMPLEMENT POWER TAKE-OFF -- CHAPTER 1
31-6

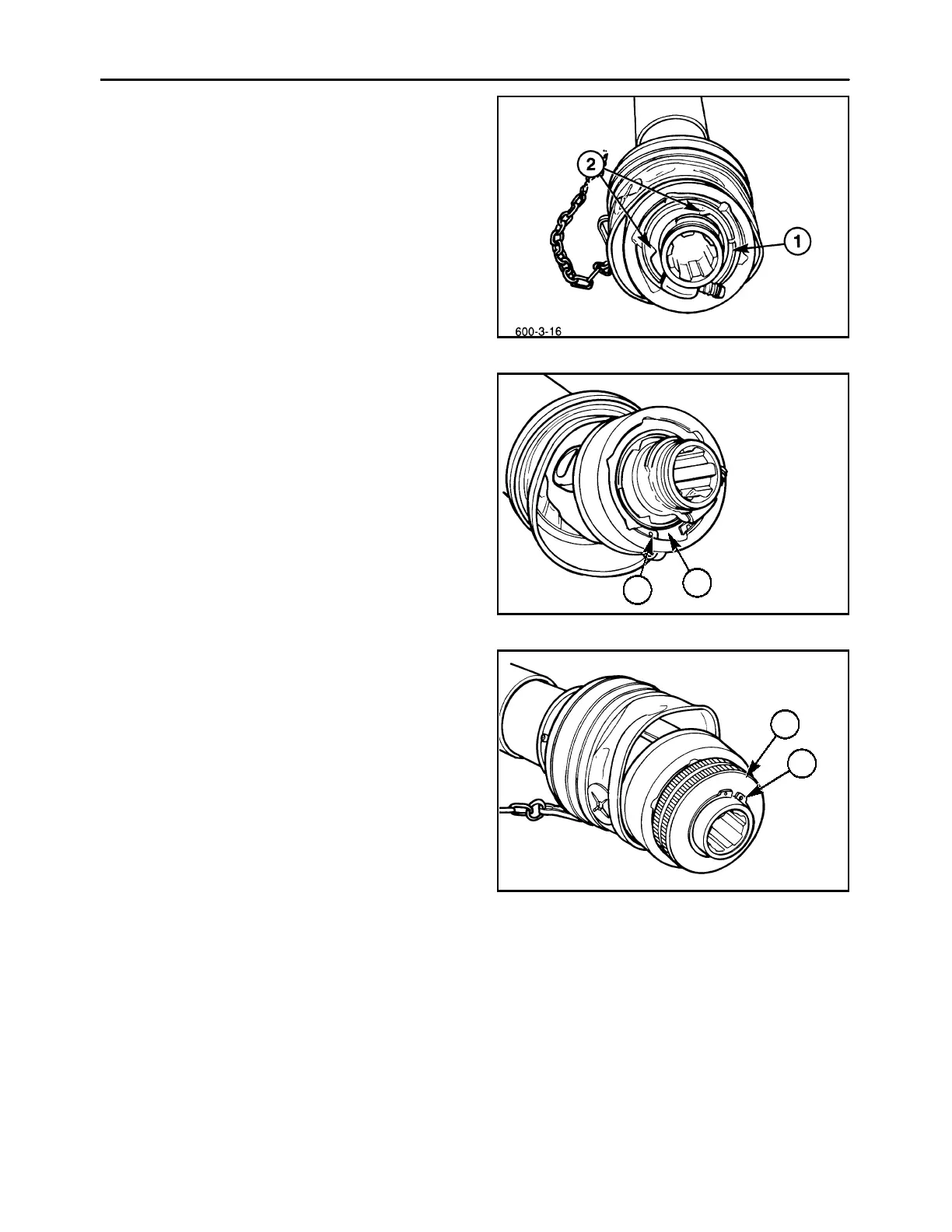

2. Install the bushing, 1, by spreading it and sliding
it over the yoke. Align the tabs, 2, on the bushing
with the notches in the inner overrunning hub.
12
3. Install the seal ring, 1, with the tapered side fac-
ing inwards to mate with the bushing. Install the
snap ring, 2, to retain the components.
600-3-13
1
2
13
4. Reinstall the twist lock inner cover by spreading
the ends apart until it can be positioned over the
groove in the inner overrunning hub.
5. Squeeze the inner cover onto the hub, and slide
the collar, 2, onto the hub, so that the ramp inside
the collar lines up with the retaining pin, and the
back of the collar slides over the inner cover.
Install the snap ring, 1, to retain the assembly.
600-3-12
1
2
14
