SECTION 00 -- GENERAL INFORMATION -- CHAPTER 3
00-5

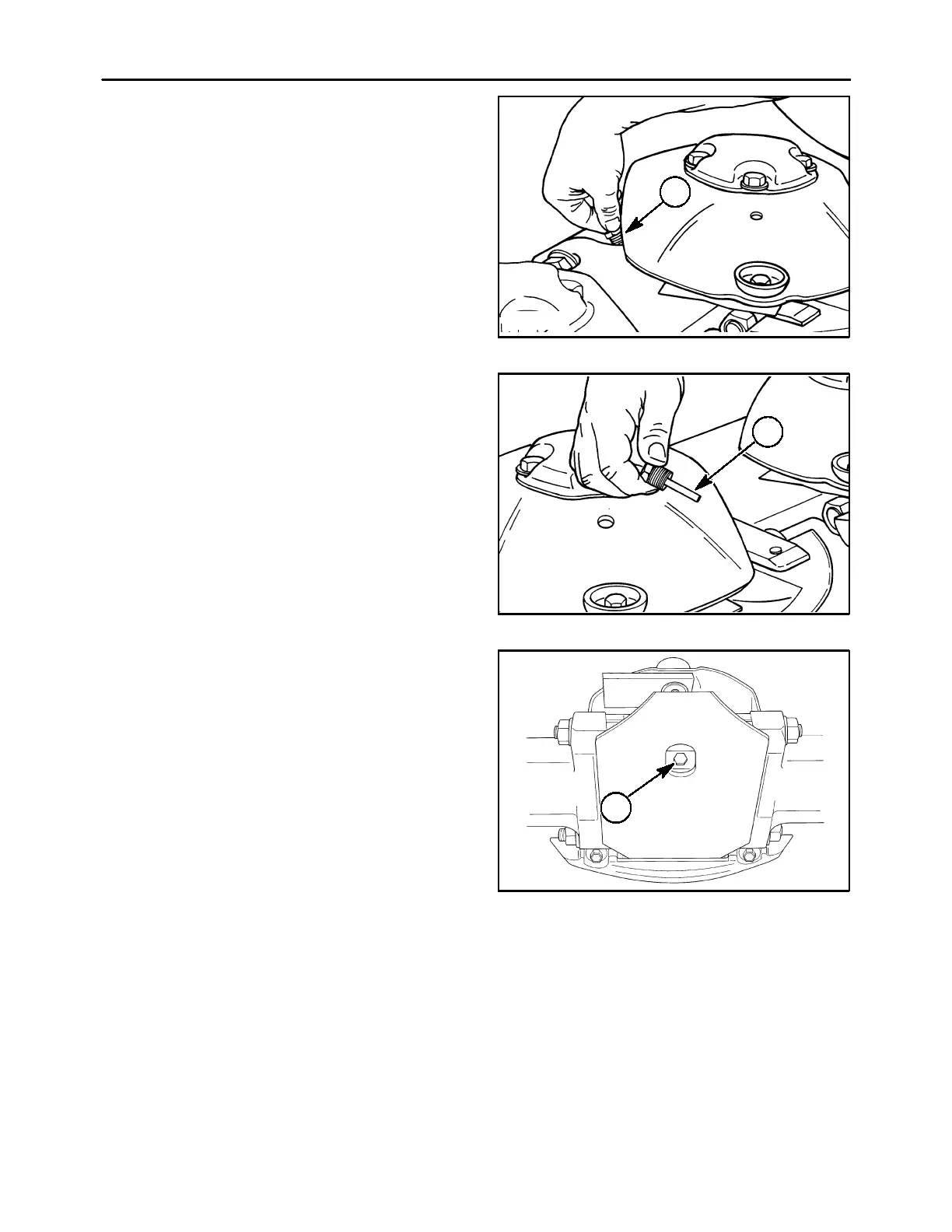

CUTTER BAR MODULES
Check the module oil every 50 hours. Each module
must be checked. The cutter bar must be level from
side to side and front to back. Park on a level surface
and adjust the top link to level cutter bar.
1. Remove dipstick, 1; wipe it clean.
2. Hold the dipstick firmly in place into the hole but
do not thread it in.
A3662-19
1
4
3. Remove the dipstick and observe the oil level.
The level is correct when it is anywhere within the
marked area at the end, 1, of the dipstick.
Maintain the oil level using API GL5 80W90 gear
oil.
A3662-20
x
x
x
1
5
Change the module oil after the first 50 hours of
use to remove any contaminants from the break-
in process. After this, change the oil every 200
hours or yearly, whichever occurs first.
Drain the oil by removing the plug, 1, on the bot-
tom of the module.
19986840
1
6
