SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 1
58-2
REMOVAL
NOTE: The bevel gearbox is easier to remove if the
mower is mounted to a tractor to support the main
frame during disassembly.

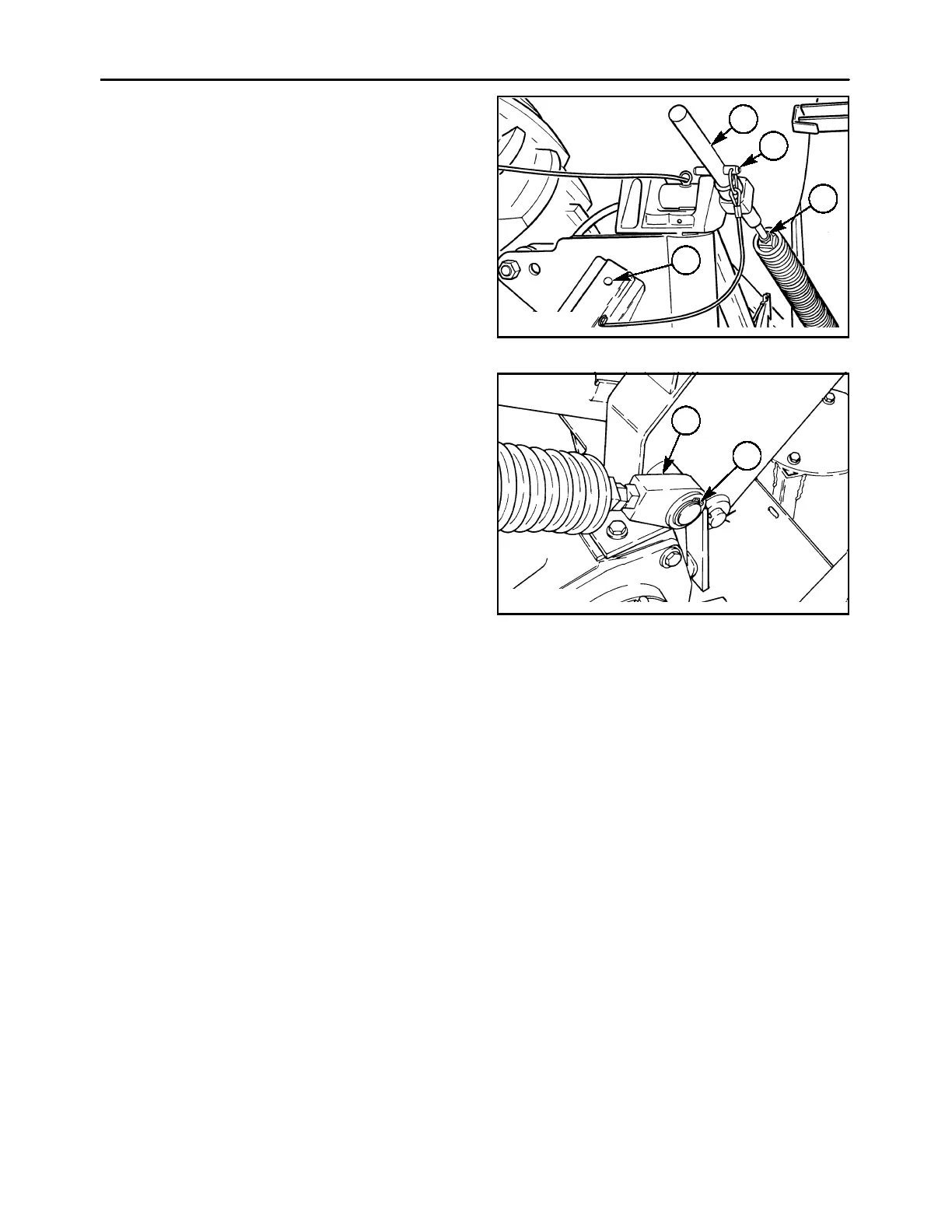

1. Disconnect the flotation system by raising the
cutter bar and removing the pin, 1, from the upper
float rod. Store pin in the hole, 2, in jackstand.
Loosen the jamnut, 3, on the flotation spring rod,
and unthread the rod, 4, from the flotation spring.
Lay the spring down on the belt drive shielding.
Slide the rod out of the holder and set it aside.
A3679-32r
1
2
3
4
1
2. Remove the flotation spring from the canopy sup-
port by removing the snap ring, 1, and large
washer, and slide the flotation spring mount, 2,
off of the pin.
600-4-2
1
2
2
