SECTION 00 -- GENERAL INFORMATION -- CHAPTER 1
00-26

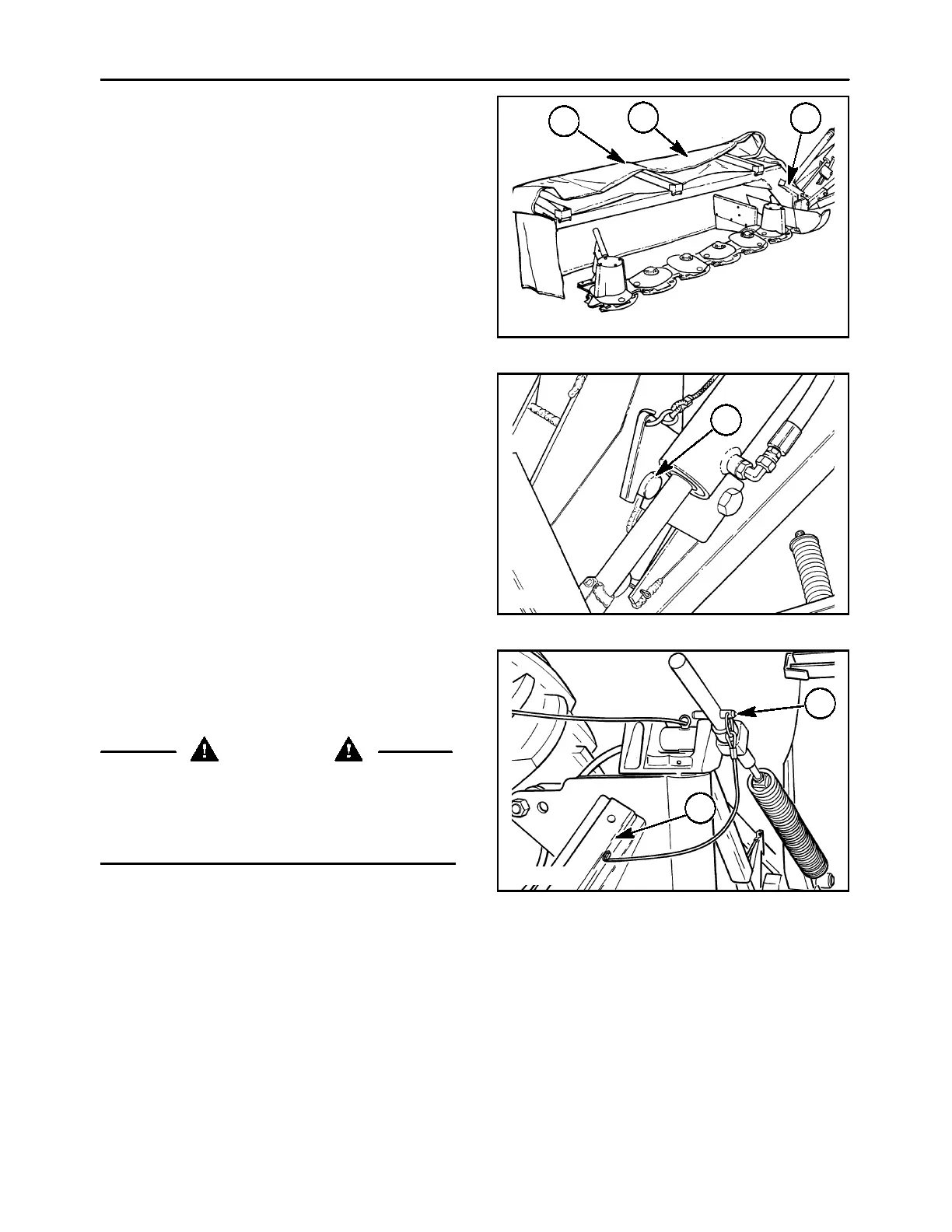

REMOVING THE MOWER FROM THE
TRACTOR
To remove the mower from the tractor, do as follows:
1. Fold the front half of the cutter bar curtain, 1,
rearward.
2. Secure the curtain with the rubber tie strap, 2.
3. Flip the cutter bar up-stop channel, 3, toward the
cutter bar and against the brace.
A3680-20
2
3
1
41
1. Raise the cutter bar with the tractor hydraulics
high enough to engage the transport latch, 1.
NOTE: Before raising the cutter bar with the
hydraulic cylinder, make sure there is adequate
clearance between the machine and the tractor. The
top link may have to be lengthened for the cutter bar
to clear the cab.
A3680-17
1
42
2. Remove the flotation spring pin, 1, from the
spring rod.
3. Remove the jack stand, 2, from the storage
position.
WARNING
Disconnect the flotation system before attempt-
ing to remove the disc mower from the tractor.
Failure to disconnect the flotation system may
result in sudden main frame move, causing
bodily injury.
A3679-32r
1
2
43
To Next Page
