SECTION 00 -- GENERAL INFORMATION -- CHAPTER 3
00-6

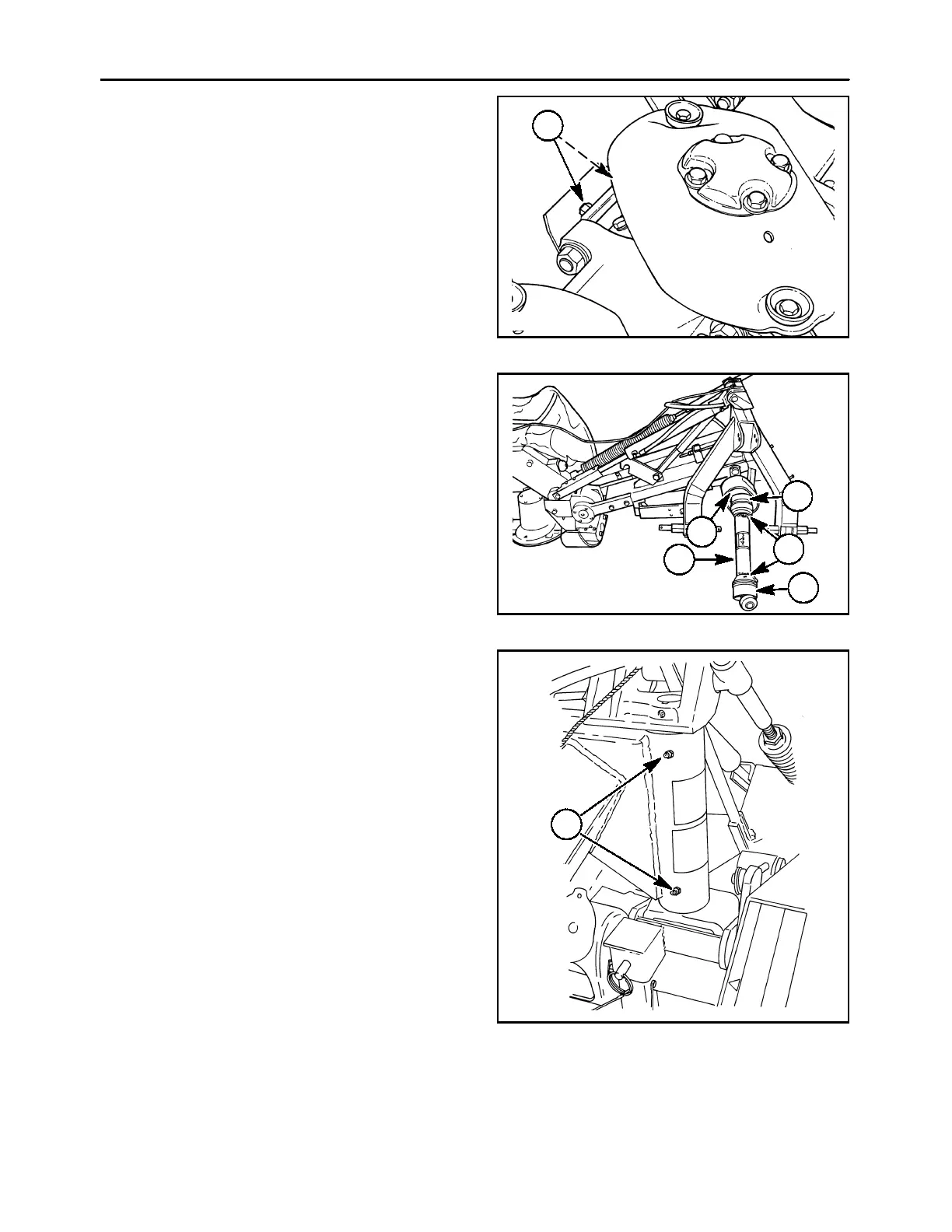

To change the oil on models without the oil drain
access hole in Figure 6, the skid shoe must first
be removed by removing two bolts at 1.
To change the oil, remove the skid shoe by re-
moving the two bolts at 1. Drain the oil by remov-
ing the allen socket head plug on the bottom of
the module. The modules hold 300 ml (10 oz.).
Refill the modules to the correct level using API
GL5 80W90 gear oil.
A3680-30
1
7
GREASE FITTINGS
Grease the PTO shaft crosses, 1; shield, 2; and over-
running clutch, 3, daily or every 8 hours of use.
Grease the telescoping sections, 4, every 20 hours.
A3680-2
1
3
4
1
2
8
Grease the main frame pivot bushings, 1, every 40
hours.
600-37
1
9
