SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 2
58-19

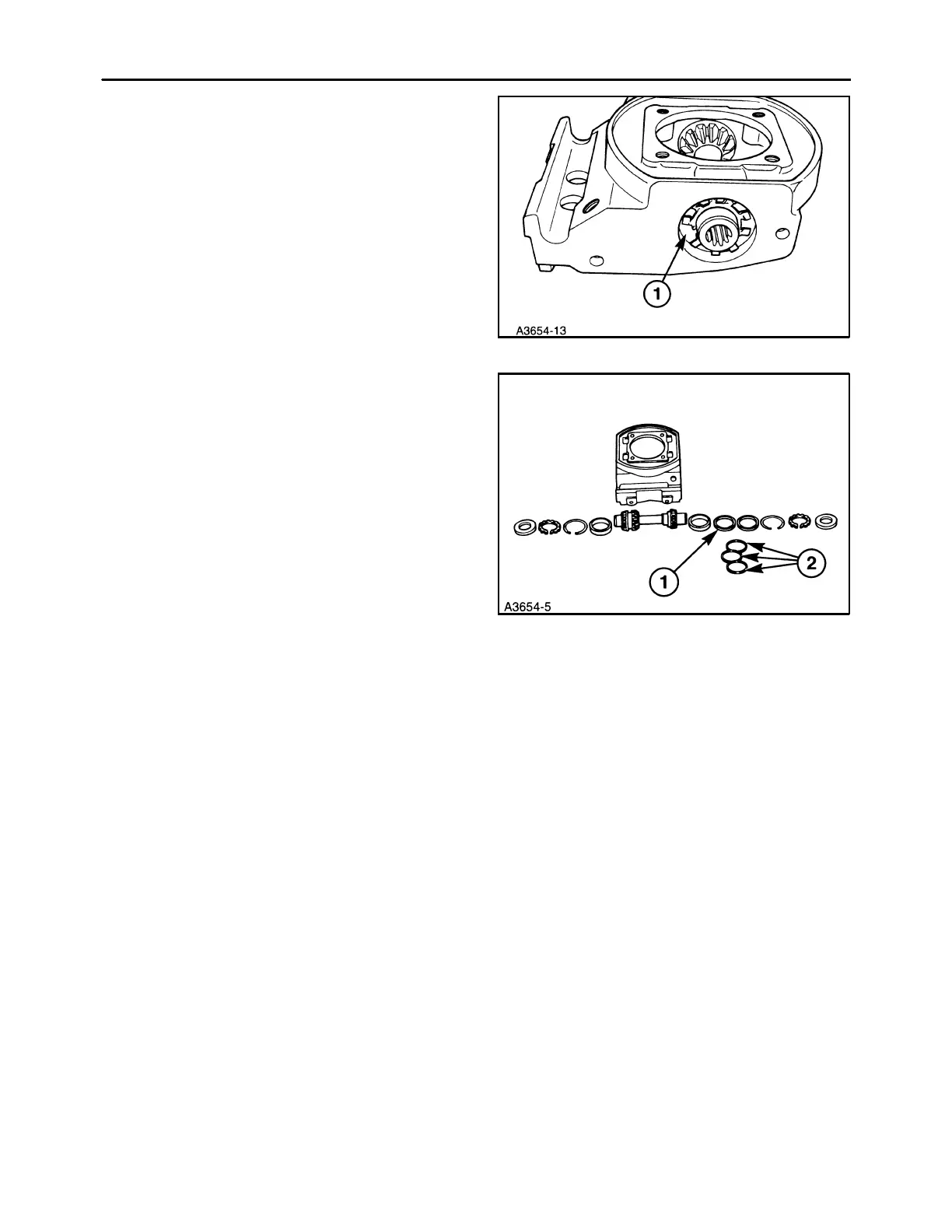

4. Use a pair of snap ring pliers to carefully remove
the slingers, 1, on each end of the lower module
shaft.
IMPORTANT: Usecautiontopreventthetipsofthe
slingers from contacting the sealing surface on the
end of the shaft, or seal failure will occur.
5. Remove the snap rings from each side of the
module.
43
6. Slide the lower module shaft, bearings and
spacer washers out of the module housing. Note
the orientation of the shaft in the housing prior to
removing it, as this affects the direction of rota-
tion of the disc module.
If module has not been previously repaired, a
compression shim washer, 1, will be on the lower
module shaft instead of individual shims, 2.
NOTE: If the lower module shaft is to be reused, use
a non-metallic abrasive pad to clean any dirt or corro-
sion from the sealing surfaces. Do not use emery
cloth or steel wool as this will damage the sealing sur-
face.
44
