SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 2
58-21

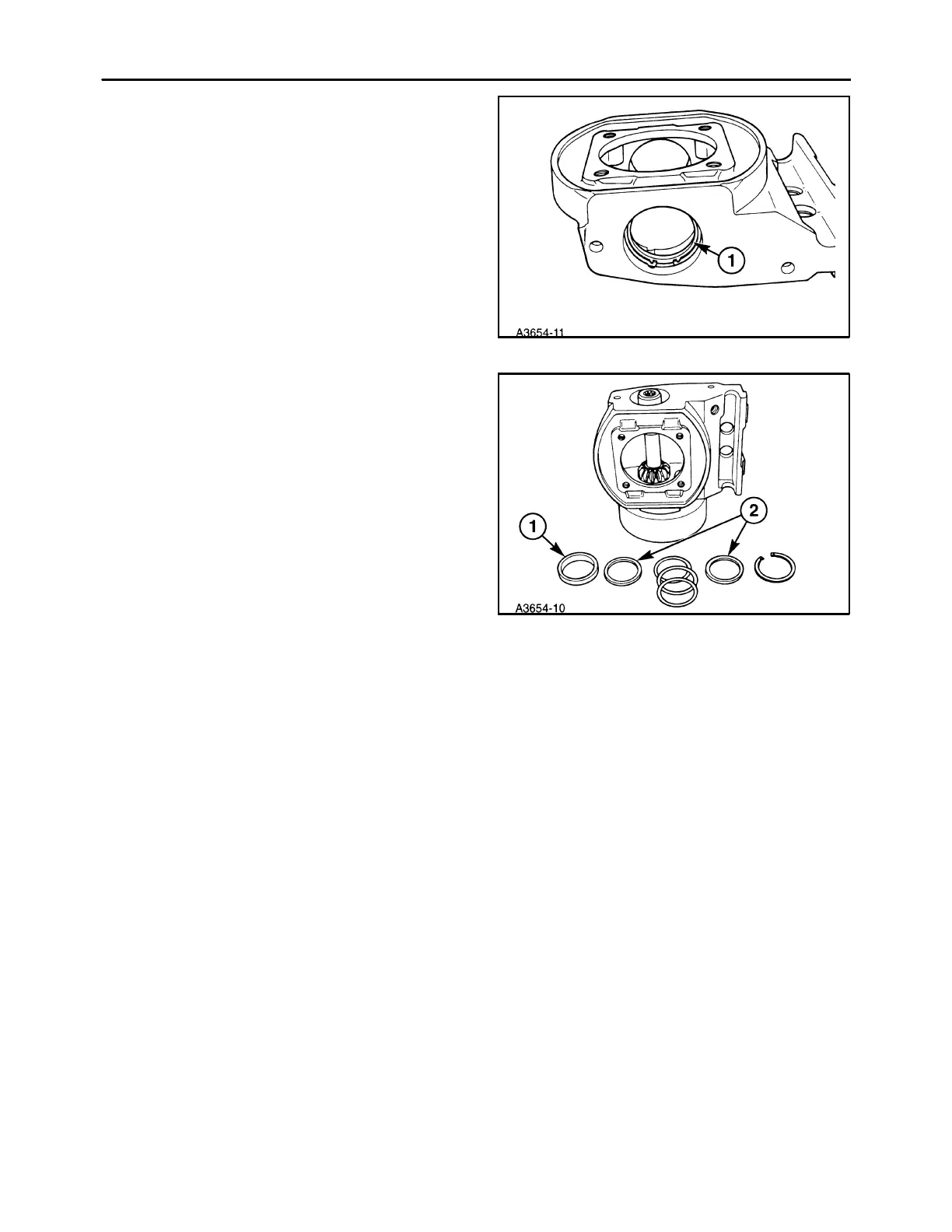

1. Install a snap ring on the pinion side of module
casting. Slide the bearing cup for the pinion side
bearing into the housing bore against snap ring.
Note that the direction of rotation desired will af-
fect which side of housing you start on. For exam-
ple, install snap ring on right side of housing for
clockwise rotation, and on the left side of housing
for counter-clockwise rotation.
46
2. Support the module housing approximately 1/2″
above the work surface on blocks, a large piece
of pipe as shown, or in an open vise; position the
snap ring and bearing cup down. Slide the as-
sembled lower module shaft into housing, mak-
ing sure pinion side is down against snap ring to
orient properly for desired direction of rotation.
3. Install the bearing cup, 1, that goes with the up-
per bearing cone into the housing. Place the two
spacer washers, 2, on top of the bearing cup and
retain with a snap ring, 3.
47
