SECTION 00 -- GENERAL INFORMATION -- CHAPTER 1
00-16
IMPORTANT: The PTO set must be checked out
prior to operation as follows:

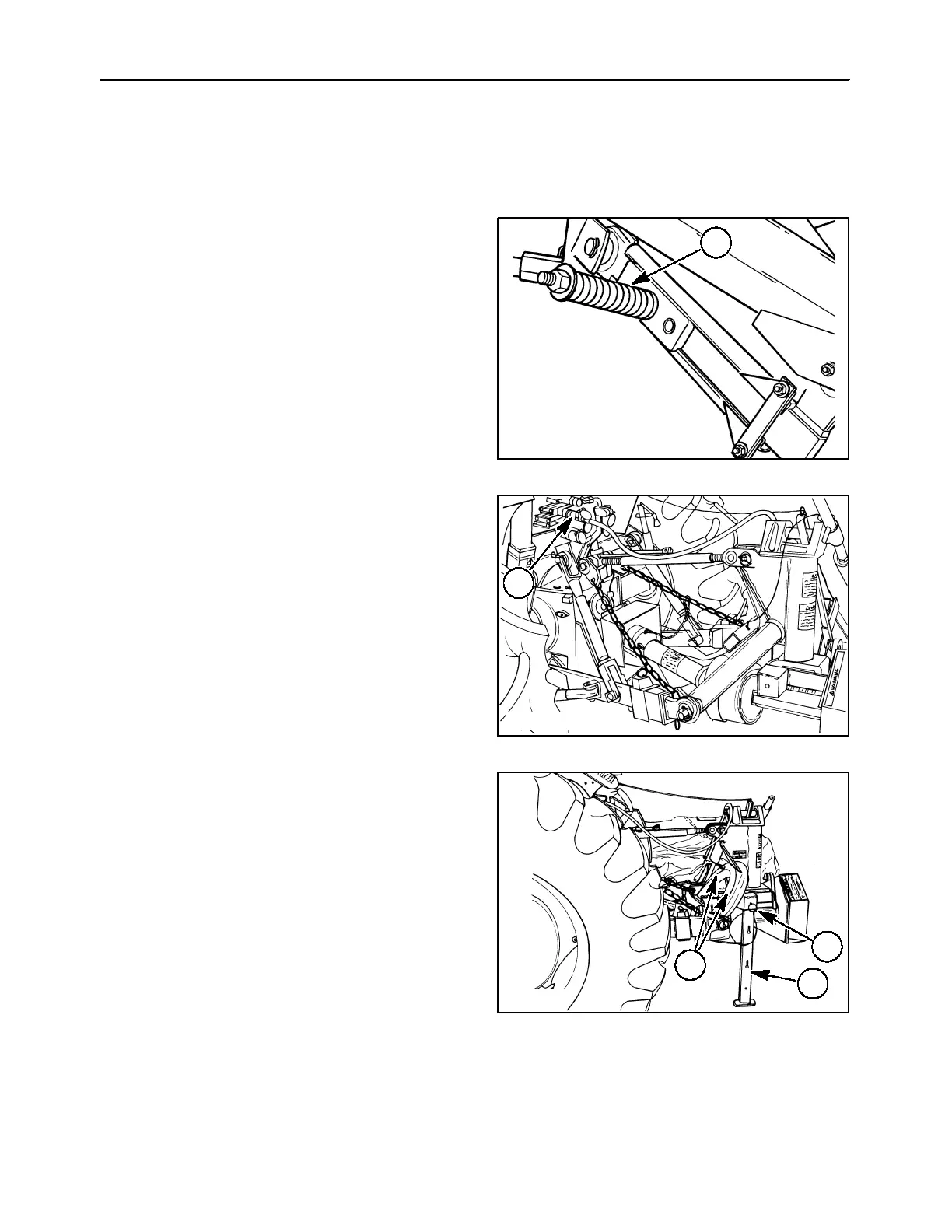

• Check to be sure the shafts do not bottom out by
lifting and lowering the hitch and observing the
free movement of he tubes when fully collapsed.
• Operate the breakaway, 1, to be sure the shafts
do not separate. This can be done by first loosen-
ing and then releasing the breakaway latch and
then physically forcing the cutter bar rearward
with a prybar or by other means. Retighten the
spring to the correct length (See the “Breakaway
Latch” section in Maintenance in this manual).
A3679-24
1
12
Connect the Mower Hydraulic System
Connect the hydraulic hose to the tractor, preferably
to a valve section that has a float position. Select the
appropriate port, 1, to allow engaging the float
position when the hitch is lowered.
NOTE: Check the tractor operator’s manual for
instructions on which outlet to use for single acting
cylinders.
19986828
1
13
Remove the Jack Stand
Remove the jack stand as follows:
1. Raise the mower with the tractor’s hydraulically
controlled three-point hitch system.
2. Remove pin, 1, and remove the jack stand, 2.
3. Attach the jack stand to the mower frame by
sliding the jack stand’s slots over the lugs, 3, on
the frame.
NOTE: The pin that is attached to the jack stand with
a cable will be installed in the flotation system later.
19986833
2
1
3
14
