SECTION 31 -- IMPLEMENT POWER TAKE-OFF -- CHAPTER 2
31-2
BELT TENSION JACKSHAFT -
DISASSEMBLY

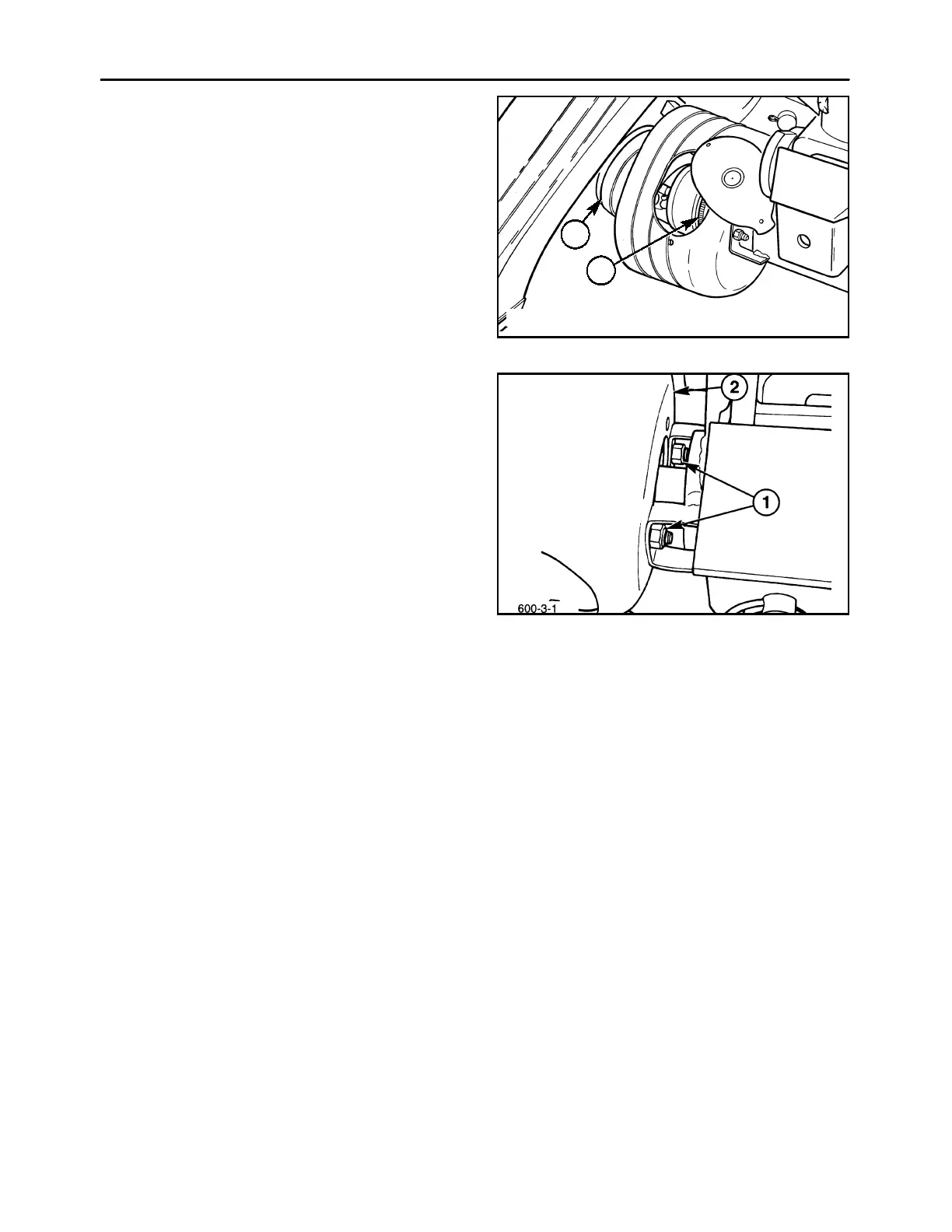

1. Remove the PTO shaft from the front of the jack-
shaft by twisting the locking ring, 1, counterclock-
wise and sliding the PTO shaft, 2, off.
A3679-29
1
2
1
2. Remove the PTO joint shielding, 2, by removing
the two cap screws and locknuts, 1.
2
