SECTION 31 -- IMPLEMENT POWER TAKE-OFF -- CHAPTER 2
31-7

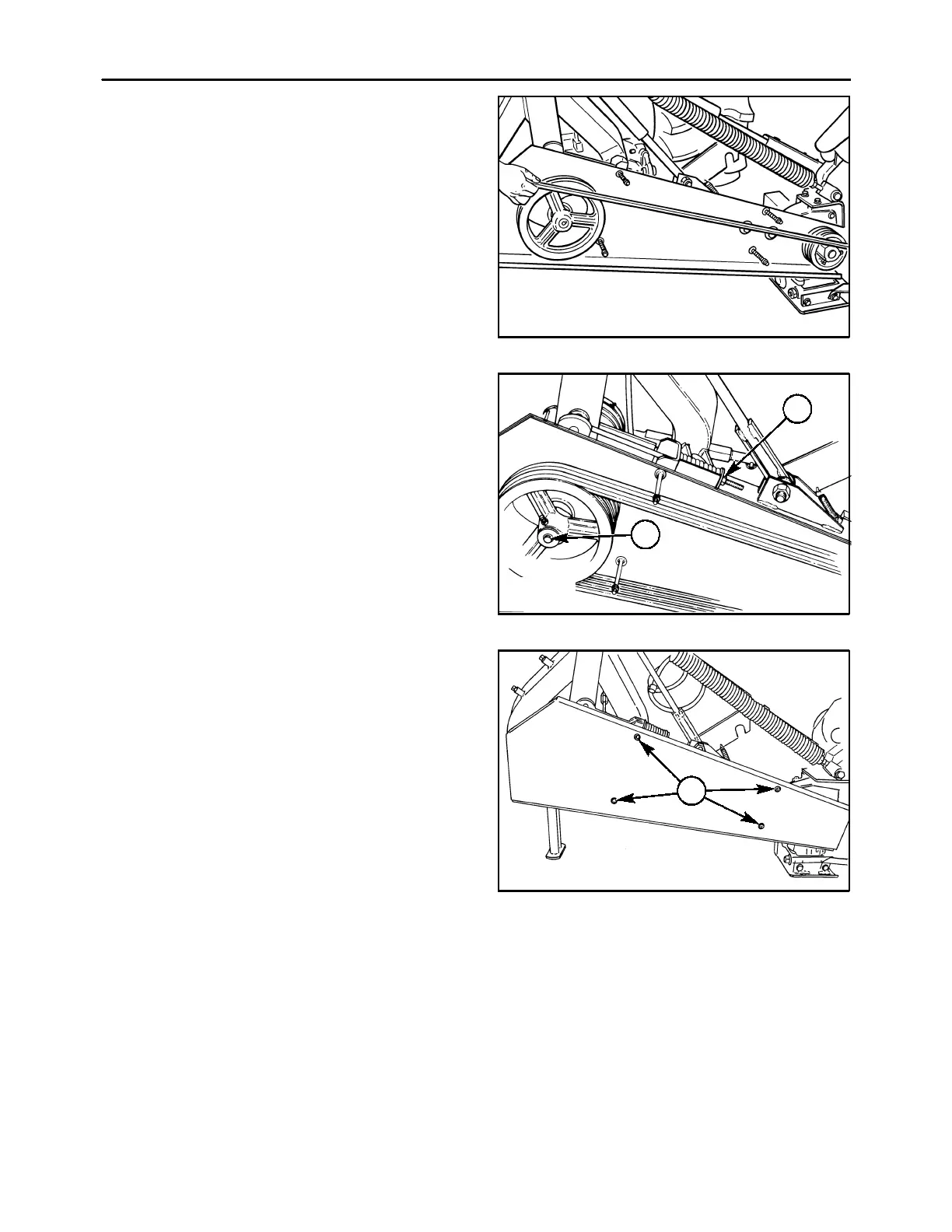

7. Use a straight edge to align the drive sheave with
the driven sheave within 1/16″. Once the sheave
is properly aligned, tighten the setscrews, 3, Fig-
ure 44, and jamnuts to retain the sheave.
A3679-27
15
8. Reinstall the belt, and tighten the locknut, 2, until
the spring length matches the length of the
gauge.
9. Block the cutter bar using a wood block between
the discs, and install the center bolt, 1, and wash-
er in the jackshaft.
A4122-12
1
2
16
10. Reinstall the rear belt shield using the four lock-
nuts, 1, and flat washers.
600-30
1
17
