SECTION 35 -- HYDRAULIC SYSTEM -- CHAPTER 1
35-5

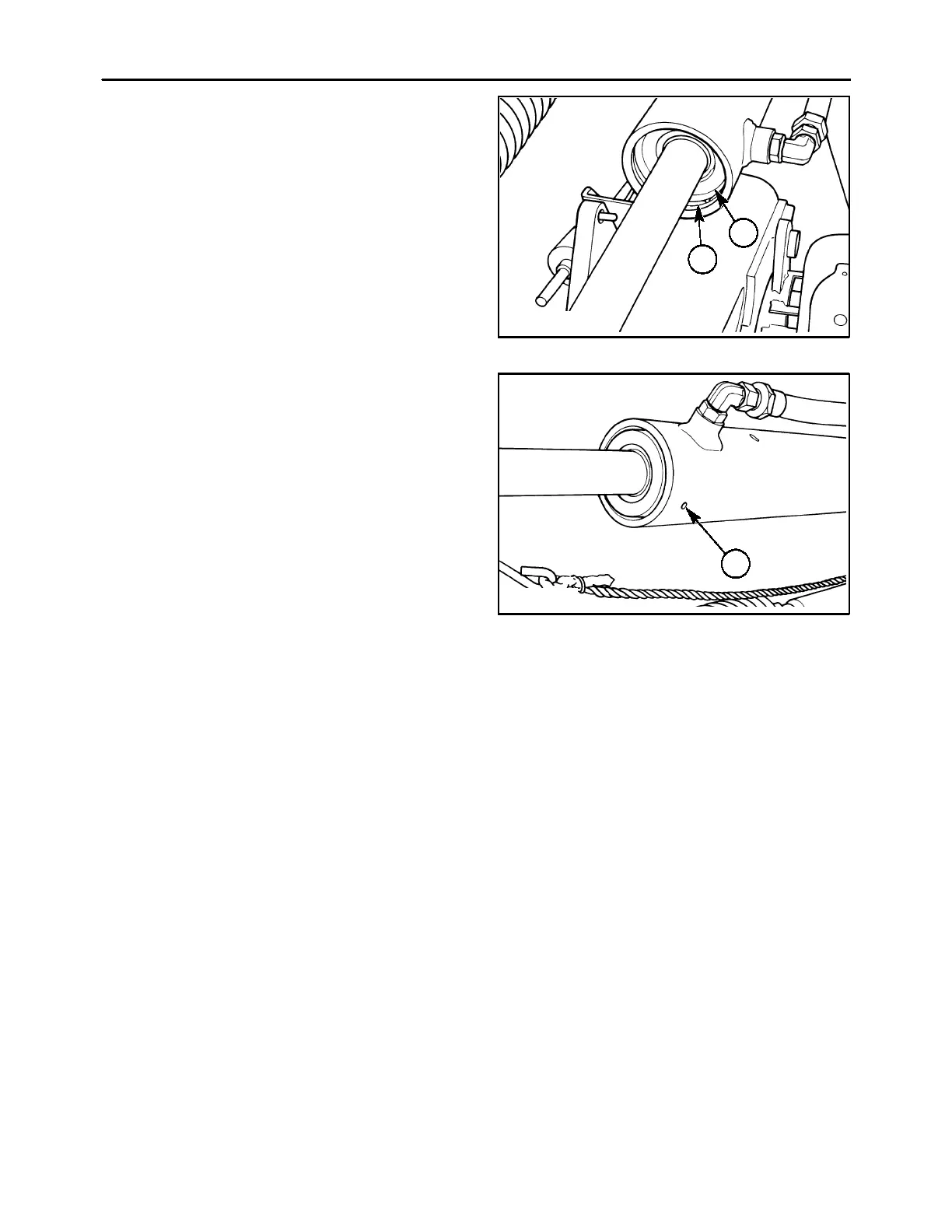

4. Lubricate the cylinder barrel with oil, and careful-
ly insert the complete piston rod assembly into
the barrel, using caution not to damage the seals
on the retaining ring groove. Push the cylinder
head, 1, into the cylinder barrel far enough to ex-
pose the retaining ring groove, and install retain-
ing ring, 2. Pull the piston rod outwards to seat
the cylinder head against the retaining ring.
5. Reattach the cylinder rod to the lift links by posi-
tioning it between the links. Install the lift stop
channel over the cylinder rod, and install the
shoulder pin and cotter pin.
600-6-2
1
2
8
6. Ensure the cylinder head is firmly seated against
the retaining ring. Install setscrew, 1.
600-6-1
1
9
