SECTION 39 -- FRAMES -- CHAPTER 1
39-5

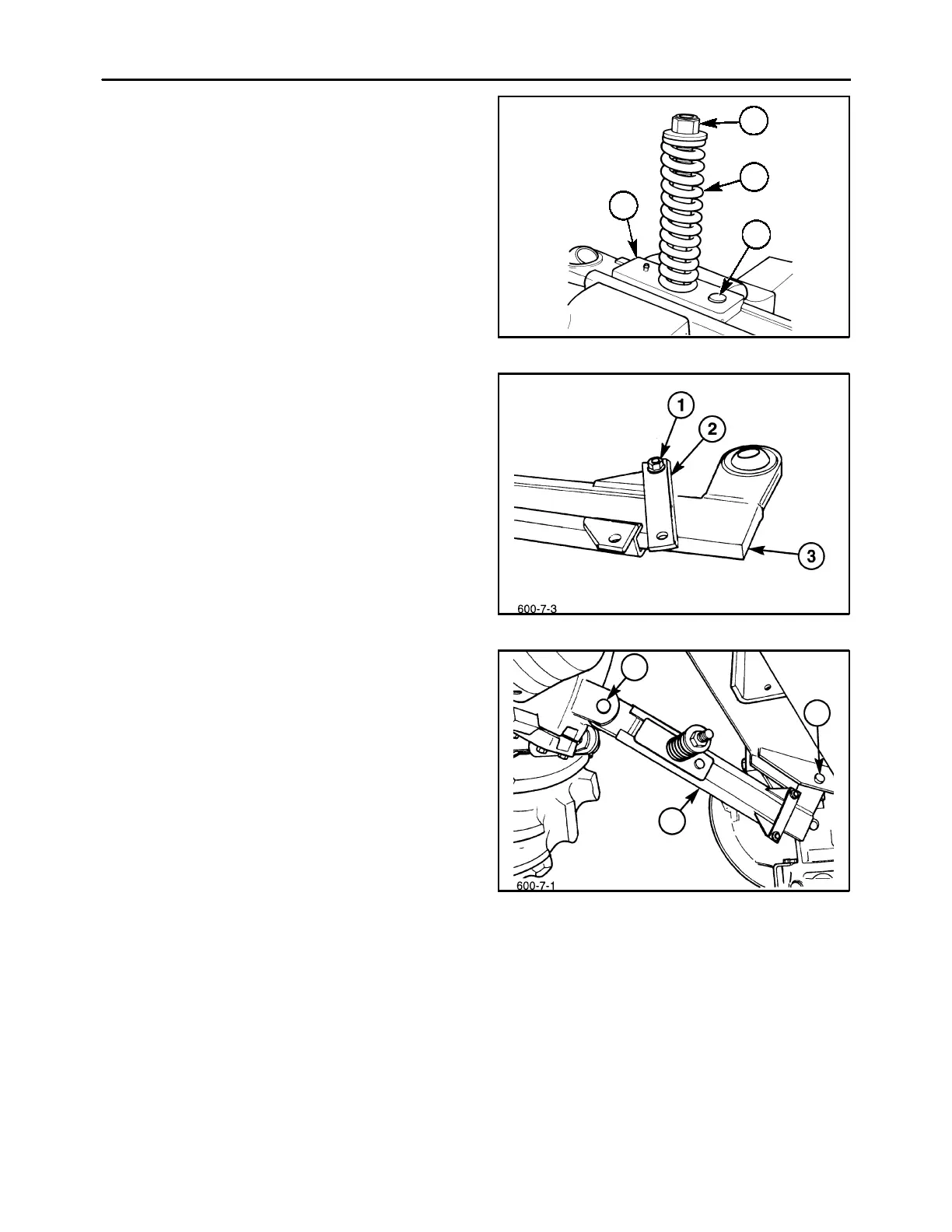

2. Flip the channel over in the vise, and push the
slide assembly into the channel. Lower the pawl,
3, over the spring rod, and seat it over the dog
and the mounting stud, 4. Install the spring, 2,
washer and nylon locknut, 1. Tighten the nut to
obtain an initial spring length as follows:
MDX71 disc mower: 172 mm (6-3/4″)
MDX81 disc mower: 165 mm (6-1/2″)
MDX91 disc mower: 159 mm (6-1/4″)
600-7-2
1
2
3
4
7
3. Install the slide stop, 2, using two bolts and whiz
nuts at 1.
8
4. Install the breakaway link, 2, back on the mower,
with the dogleg end attached to the lift arm, and
the straight end attached to the main frame. Se-
cure the breakaway link using the bolts, 2 and 3,
and locknuts as shown.
1
2
3
9
