M) MM: Speed Setup for Auto Clamping Adjustment
N) NN: Pressure Setup for Auto Clamping Adjustment
O) OO: Speed Setup for Positioning Cylinder Forward
P) PP: Pressure Setup for Positioning Cylinder Forward
Q) QQ: Speed Setup for Hydraulic Mold Adjustment Forward
R) RR: Pressure Setup for Hydraulic Mold Adjustment Forward
S) SS: Speed Setup for Hydraulic Mold Adjustment Backward
T) TT: Pressure Setup for Hydraulic Mold Adjustment Backward
U) UU: Spare 2 for speed setup
V) VV: Spare 2 for pressure setup
W) WW: Spare 2 for speed setup
X) XX: Spare 3 for pressure setup
2.41.4 Spare Speed Pressure Setup for Combined Cylinder Menu 33

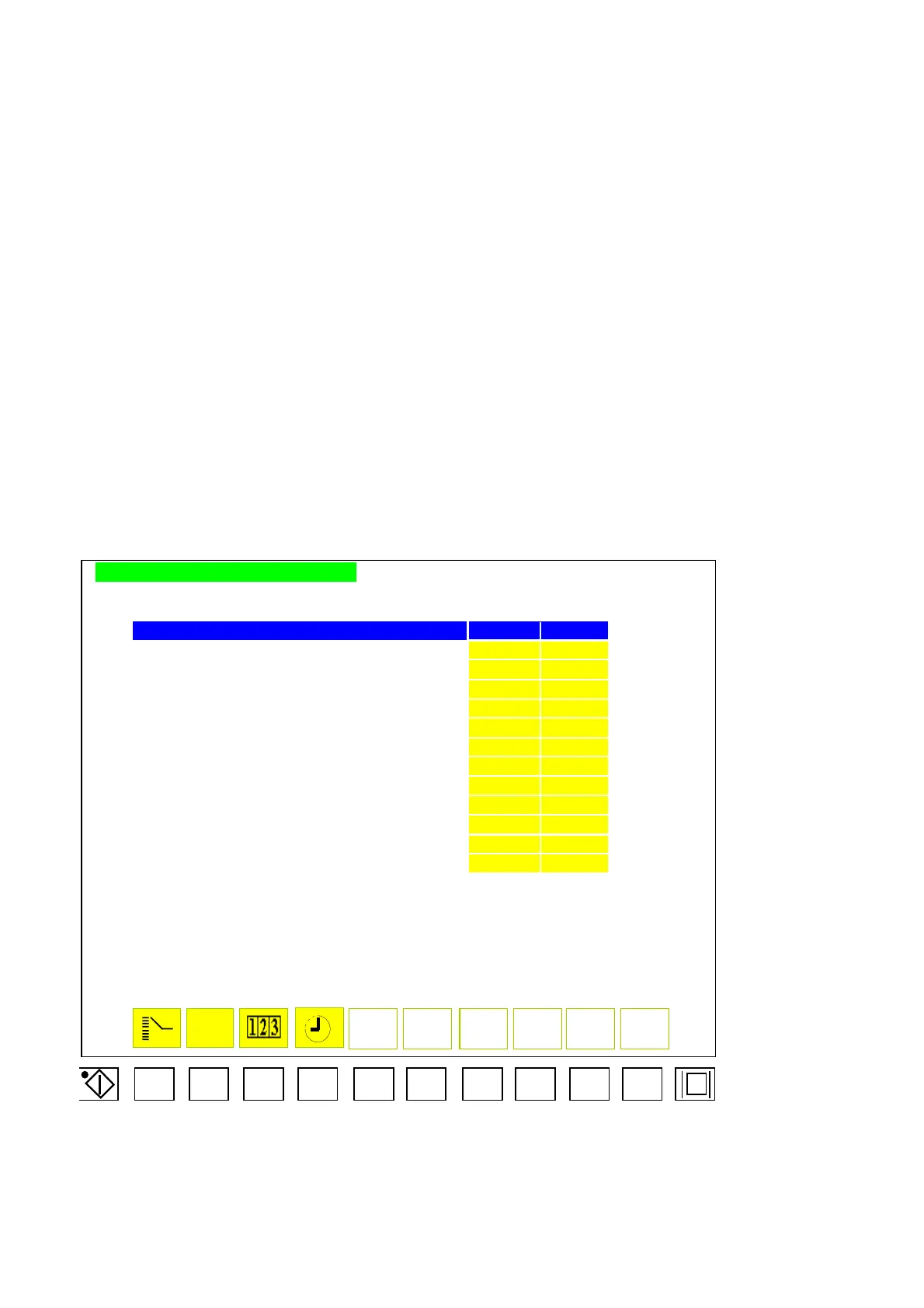

SPARE SPEED / PRESSURE SETTING
SPEED / PRESSURE SETTING SPEED % PRESSURE%
ACCUMLATOR FILLING •••••••••••••
AA BB
HYDRAULIC SHUT-OFF NOZZLE •••••••••
CC DD
SPECIAL LOWW-PRESSURE CLAMPING MODE•••••
EE FF
GG HH
QUICK-MOVING CYLINDER MOLD ADJUSTMENT••••
II JJ
POSITIONING CYLINDER MOLD RELIF•••••••
KK LL
AUTO. CLAMPING FORCE ADJUSTMENT ••••••
MM NN
POSITIONING CYLINDER FORWARD ••••••••
OO PP
HYDRAULIC MOLD ADJUSTMENT - FORWARD•••••
QQ RR
HYDRAULIC MOLD ADJUSTMENT
–
BACKWARD •••• SS TT
UU VV
WW XX
F1 F2 F3
F4 F5
F6
F7
F8
F9 F10
Menu33
