The descending order of the requirement for high-pressure cylinder mold-opening switch
position
.
Setup is
:
RRR.R
mm > OOO.Omm >aaaa.amm > LLLLLp > IIIIIp
。

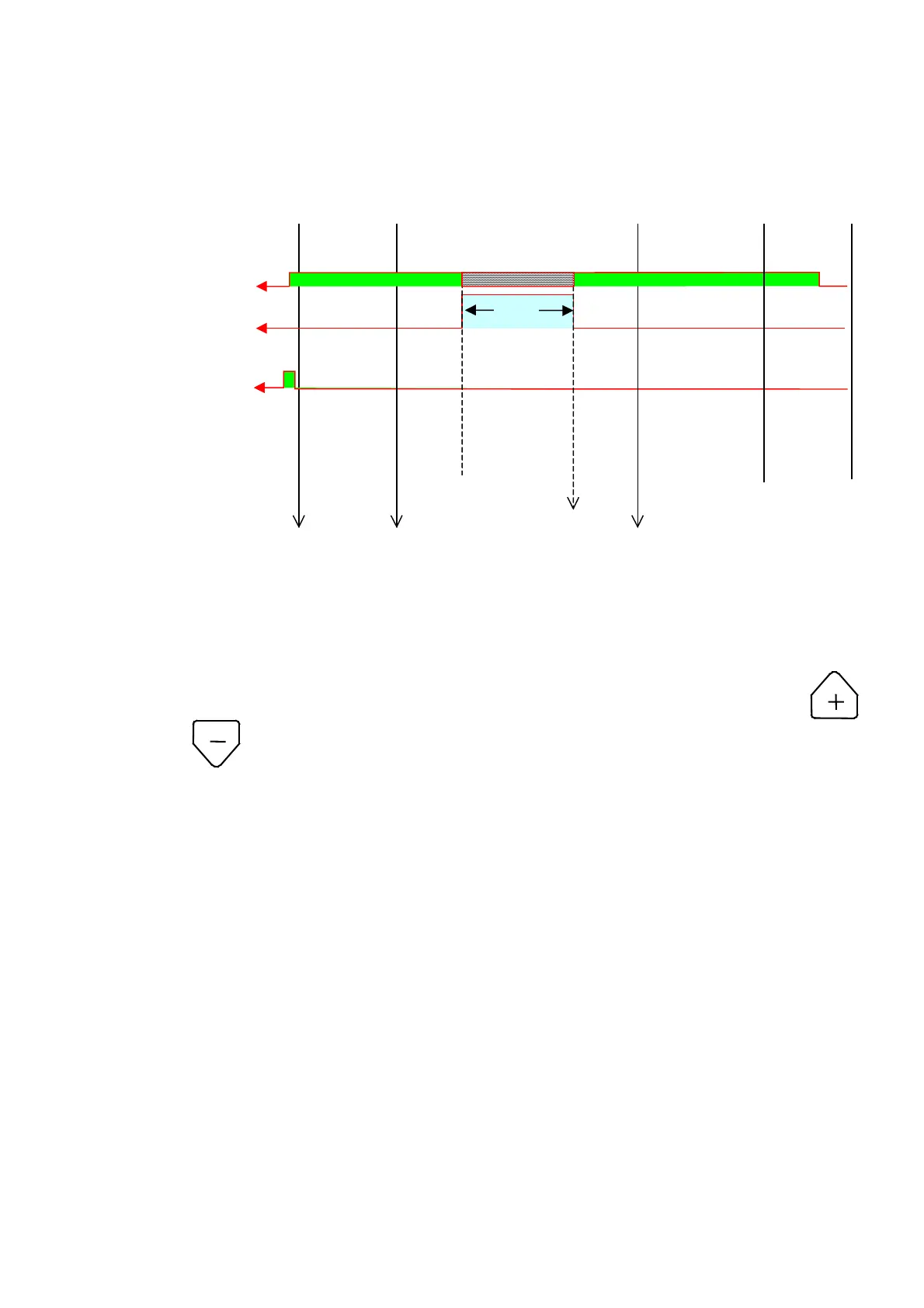

2.5.2.4. Sequence Diagram of High-Pressure Cylinder Mold-Opening
Mold-opening distance decelerated fast speed mold-opening slow speed decelerated
Mold-opening mold-opening pressure
Special mold distance
End-position mold-opening
Velocity parameter
Pressure parameter
Counter-balance pressure
Special mold start-position aaaa.a
End-position setup RRR.R OOO.O LLLLL
ddd.d
JJ
KK
SS
MM
NN
TT
bb
cc
TT
MM
NN
TT
PP
QQ
UU
2.5.2.5. Special Function Setup
The setup for function selection
:
move the cursor to “
ｊ
” “
ｋ
” “
ｌ
”, and press either
or
“open “or ”close “
．
Code descriptions for function selection are as follows:
A) ｊ :Function selection for high-pressure cylinder fast mold-opening.
B) ｋ : Spare function selection.
C) ｌ :Function selection for mold-opening and closing of high-pressure cylinder
special mold. Code descriptions for parameters of the special mold are as follows:
C.a) WWWW.W: Mold-closing start-position setup for high-pressure cylinder special
mold.
C.b) ZZZ.Z :The moving distance setup for mold closing of high-pressure cylinder
special mold.
C.c) XX :Mold-closing speed setup for high-pressure cylinder special mold.
C.d) YY :Mold-closing pressure setup for high-pressure cylinder special mold.
C.e) aaaa.a: Mold-opening start-position setup for high-pressure cylinder special
mold.
C.f) ddd.d :The moving distance setup for mold-opening of high-pressure cylinder
special mold.
C.g) bb :Mold-opening speed setup for high-pressure cylinder special mold.
C.h) cc :Mold-opening pressure setup for high-pressure cylinder special mold.
