CDC-2000
操作手冊
Operational Manual
L) gg : back pressure setup for high-pressure cylinder high-pressure mold-closing.
M) IIIII :end-position setup for high-pressure cylinder high-pressure
mold-closing.
N) TTT : clomping fore setup for high-pressure cylinder high-pressure mold-closing.
O) iii.i : Display the clamping time for high-pressure cylinder high pressure
mold-closing. Sctup:
RRR.R
mm >
WWWW.W
mm >
CCCC.C
mm >
FFFFF
p >
IIIII
p。

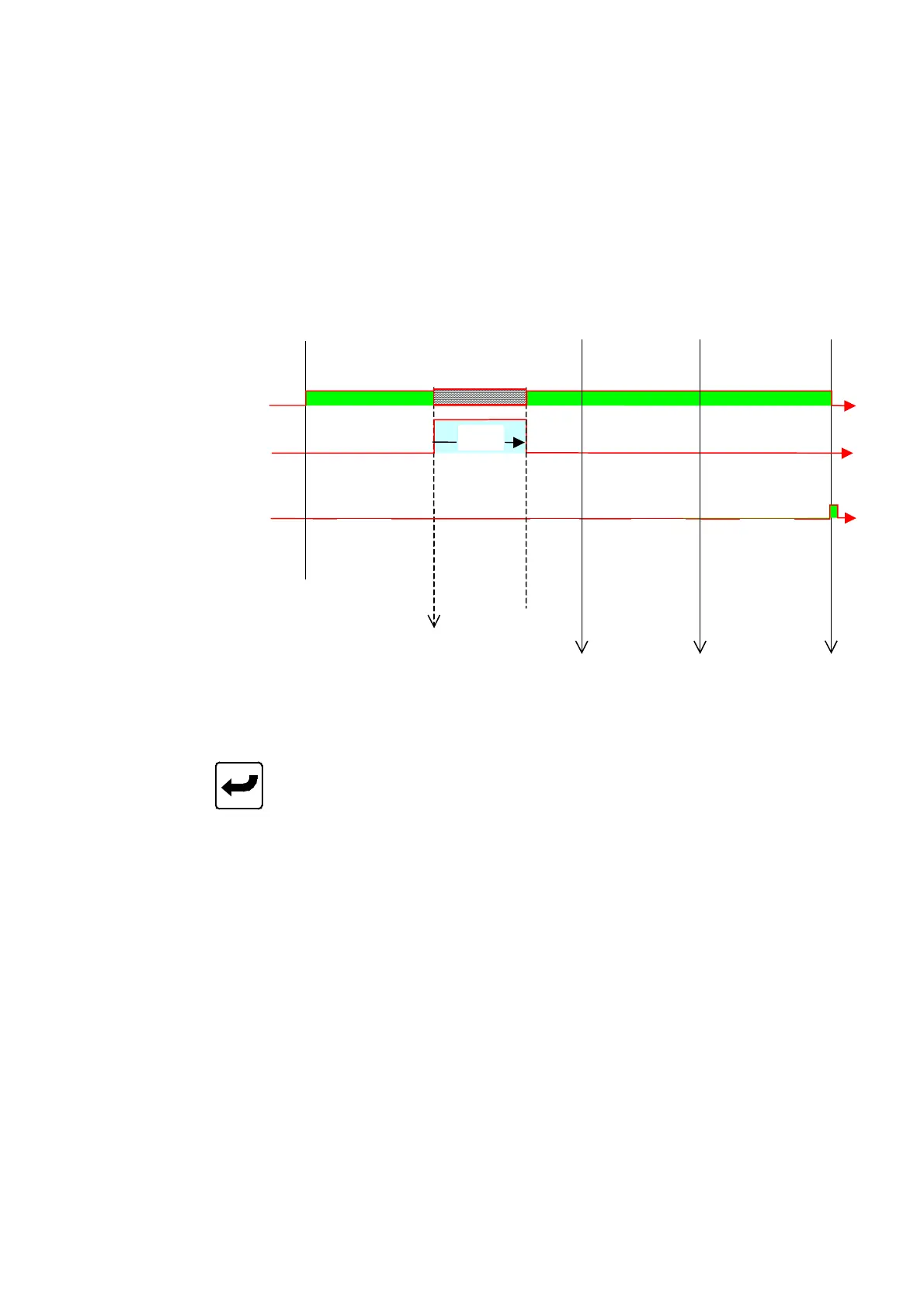

2.5.2.2. Sequence Diagram of High-Pressure Cylinder for Clamping
Mold-closing fast speed mold-closing low-pressure high-pressure
Mold-closing mold-closing
Special mold mold-closing
End-position mold-closing
Velocity parameter
Pressure parameter
Back pressure parameter
Special mold start-position WWWW.W
End-position setup CCC.C FFFFF IIIII
ZZZ.
AA
BB
ee
XX
YY
ee
DD
EE
ff
GG
HH
gg
AA
BB
ee
2.5.2.3. Mold-Opening Setup
Move the cursor to the desired parameter for mold-opening, Key i9n your desired digits and
press
to complete the correction.
Code descriptions for Menu (03) high-pressure cylinder mold-opening are as follows:
A) JJ : High-pressure cylinder slow mold-opening speed setup.
B) KK : High-pressure cylinder slow mold-opening pressure setup.
C) SS : High-pressure cylinder slow mold-opening counter-balance pressure setup.
D) LLLLL : High-pressure cylinder slow mold-opening end-position setup.
E) MM : High-pressure cylinder fast mold-opening speed setup.
F) NN : High-pressure cylinder fast mold-opening pressure setup.
G) TT : High-pressure cylinder fast mold-opening counter-balance pressure setup.
H) OOO.O : High-pressure cylinder fast mold-opening end-position setup.
I) PP : High-pressure cylinder decelerated mold-opening speed setup.
J) QQ : High-pressure cylinder decelerated mold-opening pressure setup.
K) UU : High-pressure cylinder decelerated mold-opening counter-balance pressure
setup.
L) RRR.R : High-pressure cylinder decelerated mold-opening end-position setup.
M) hhh.h : display the mold-opening time for high-pressure cylinder.
04/08/13
23
To Next Page
