2.5.4. Mold Closing and Opening Setup for Combined High-Pressure Cylinder,

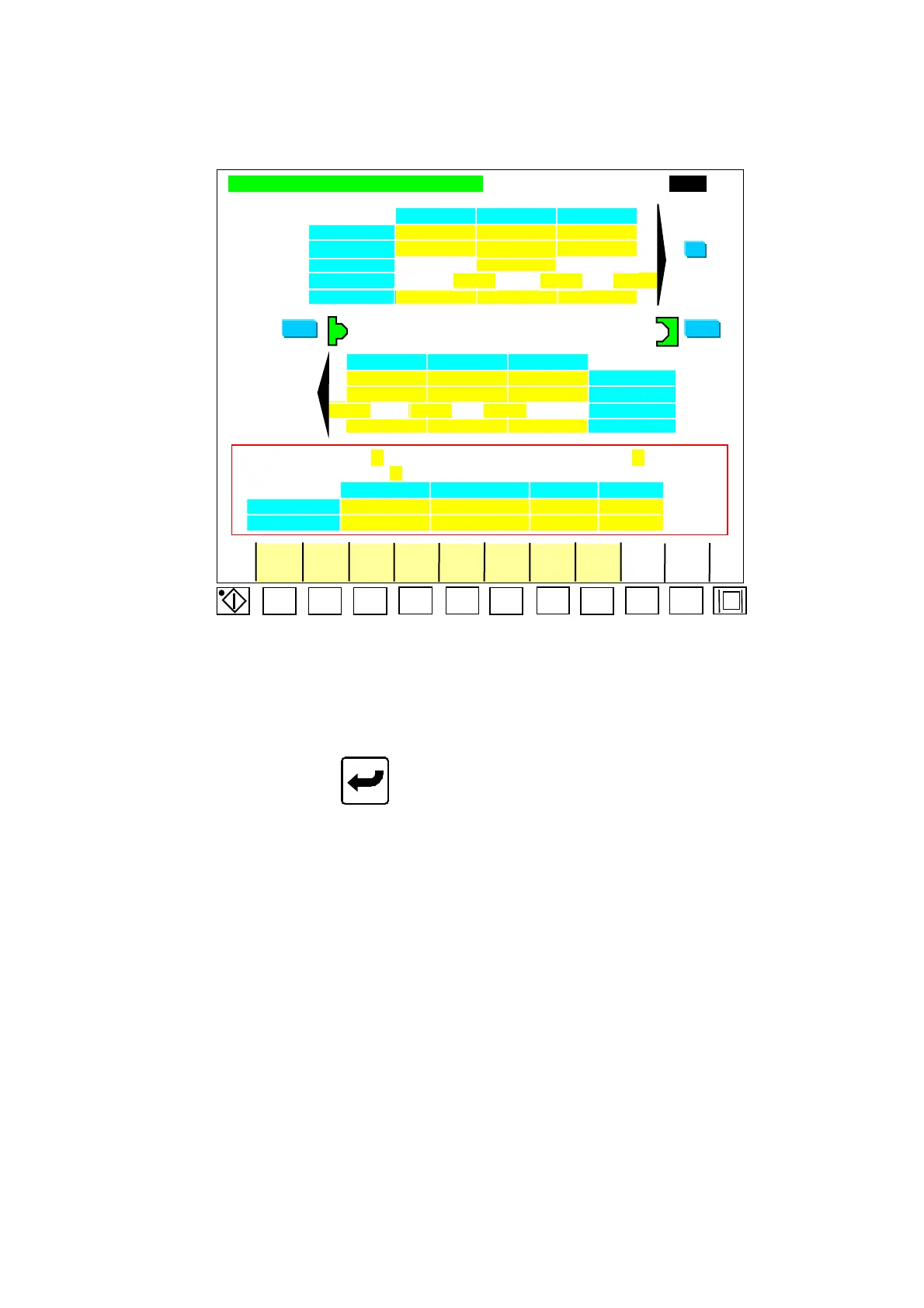

Fast-tank mold closing and opening setup ????.?mm
Fast-speed low-pressure high-pressure
velocity % AA DD GG clamping force
pressure % BB EE HH TTT ton
time (sec) vvv.v
position mm CCC.C FFFFFp IIIIIp
coun-bal pre.% ee ff gg
hhh.h iii.i
decel.speed fast speed slow speed
PP MM JJ velocity %
QQ NN KK ressure %
RRR.R OOO.O LLLLLp position mm
UU TT SS coun-bal pre.%
Super mold-closing :
ｊ backup function : ｋ
Special mold function :
ｌ
Start-position distance velocity pressure
Mold-closing WWWW.W ZZZ.Z XX YY
Mold-opening aaaa.a ddd.d bb cc
Hi-pre. Eject. Co-pull unscr. Air-bl modul. Lubri.
S
p
l.unts
Chart 03
F1 F2 F3
F4 F5
F6
F7
F8
F9 F10
p
2.5.4.1. Fast Mold-Closing Setup
Move cursor to the desired parameter for mold closing. Key in desired digits through
digit keys and press to complete a correction．
Code descriptions for Menu (03) the mold-closing are as follows:
A) AA : Fast-closing speed setup.
B) BB : Fast-closing pressure setup.
C) ee : Fast-closing counter-balance pressure setup.
D) CCC.C : Fast-closing end-position setup.
E) DD : Low-pressure mold-closing speed setup.
F) EE : Low-pressure mold-closing pressure setup.
G) ff : Low-pressure mold-closing counter-balance pressure setup.
H) FFFFF : Low-pressure mold-closing end-position setup.
I) vvv.v : Low-pressure mold-closing time setup.
J) GG : Mold-closing speed confirmed setup.
K) HH : Mold-closing pressure confirmed setup.
L) gg : Mold-closing counter-balance pressure confirmed setup.
M) IIIII : Mold-closing minimum end-position setup.
