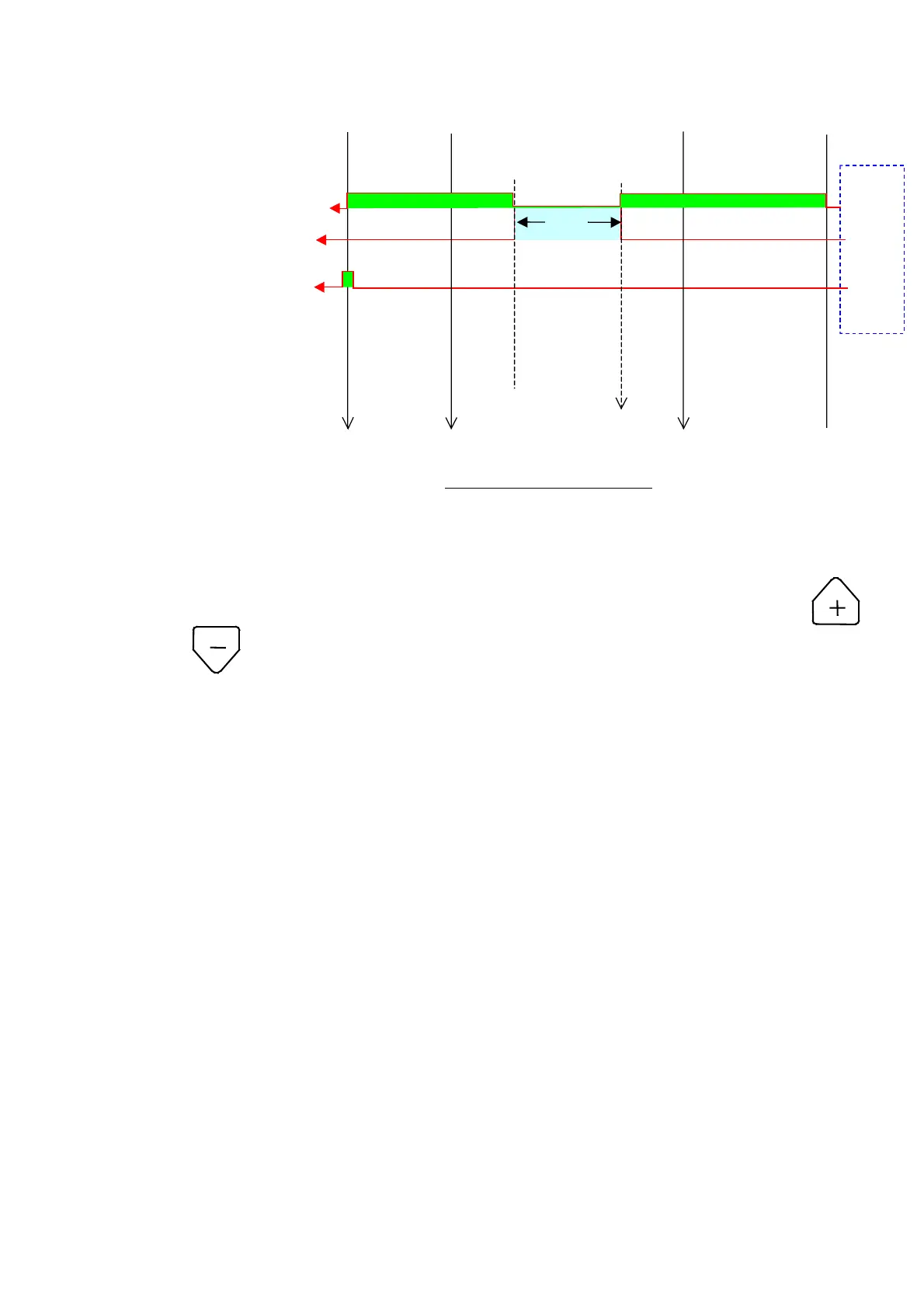

2.5.4.6. Sequence Diagram of Fast-Speed Mold-Opening
Fast-tank distance decelerated fast mold-opening slow mold-opening
Mold-opening
Special distance
End-position
Velocity setup
Pressure setup
Counter-balance pressure setup
Special start-position aaaa.a
End-position setup RRR.R OOO.O LLLLL
ddd.d
JJ
KK
SS
MM
NN
TT
bb
cc
TT
MM
NN
TT
PP
QQ
UU
Details o
f
sequence,
p
lease
refer
chart (04)
Sequence diagram of fast-speed
2.5.4.7. Special Function Setup
The setup for function selection : Move the cursor to “
ｊ
” “
ｋ
”and “
ｌ
”, press either
or
for “open “or” close “.
Code descriptions for function selection are as follows:
A) ｊ:Function selection for fast-speed mold-opening.
B) ｋ:Spare function selection.
C) ｌ:Function selection for mold-opening for fast-speed special mold.
Code descriptions for parameters of the special mold are as follows:
C.a) WWWW.W :Mold-closing start-position setup for fast-speed special mold.
C.b) ZZZ.Z :The moving distance setup for mold-closing of fast-speed special mold.
C.c) XX :Mold-closing speed setup for fast-speed special mold.
C.d) YY :Mold-closing pressure setup for fast-speed special mold.
C.e) aaaa.a :Mold-closing start-position setup for fast-speed special mold.
C.f) ddd.d : The moving distance setup for mold-opening of fast-speed special mold.
C.g) bb :Mold-opening speed setup for fast-speed special mold.
C.h) cc :Mold-opening pressure setup for fast-speed special mold.
