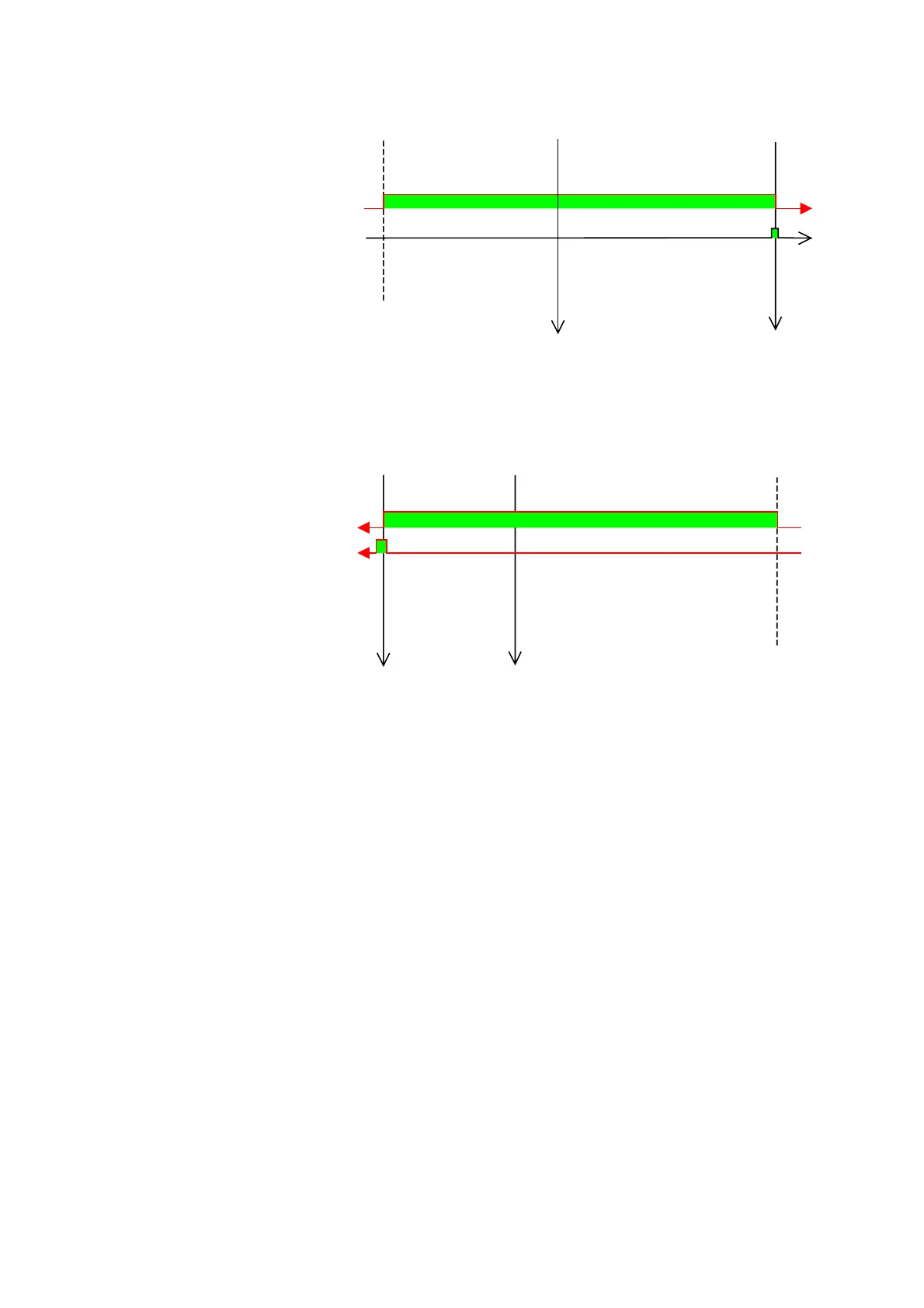

2.7.2. Sequence Diagram of Ejector Forward
Ejector forward distance 1 2
End of ejector forward
Velocity setup AA DD
Pressure setup BB EE
End-position setup CCC.C FFF.F
2.7.3. Sequence Diagram of Ejector Backward
Ejector backward distance 2 1
End of ejector backward
Velocity setup
JJ GG
Pressure setup KK HH
End-position setup
LLL.L III.I
