1 Operational Manual
2.11.4.2 Mold Thickness Adjustment Operational Method:
A) Note:
A.a) If safety doors are not closed, the warning message
“
019 safety door not
closed
”
will show on the monitor. At times that auxiliary signs detect unclosed
door,
“
061 safety door device abnormal
”
will appear. Limit switches need
inspections. When
“
052 mold-opening stroke not completed
“

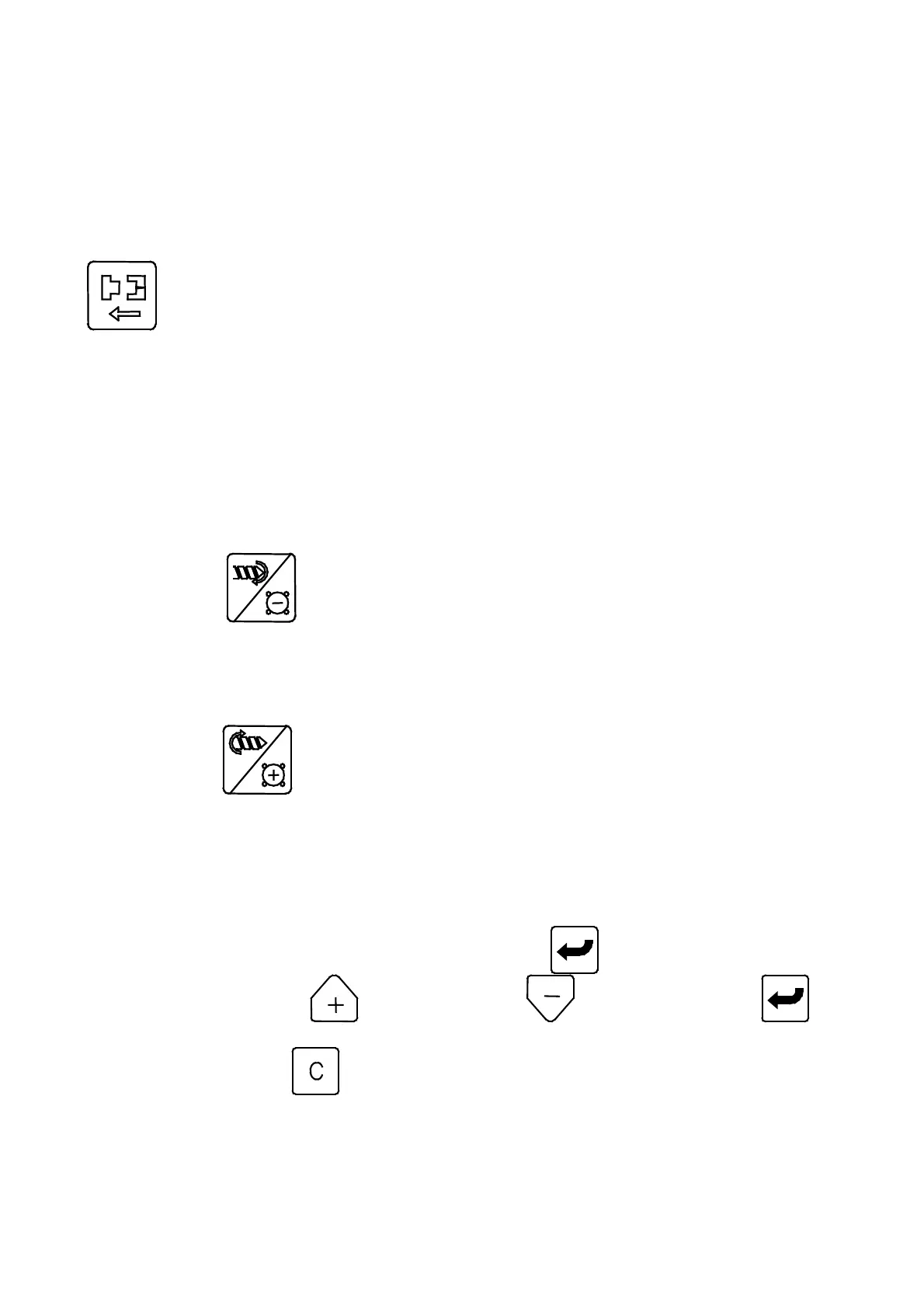

shows, press
until
“
051 mold-opening stroke completed
”
takes over.
A.b) Goes to Menu (55) to correct
“
mold thickness BBBB.Bmm
”
while the mold
thickness is not exact.
A.c) Goes to turn off mold adjustment for
“
017 mold adjustment motor overload
“
to check motor load and mechanism.
A.d) Goes to turn off mold adjustment for
”
023 mold adjustment counter error
“
to
check counter switch (Input 31) and mechanism.
A.e) To check counter signal and teeth when mold adjustment errors occur.
B) Manual operation for mold thickness adjustment
B.a) Press
and the molds will adjust forward, leaving a reduced mold
height and strengthened clamping force. Let go of the key and the function
will stop, If mold adjustment forward goes beyond computer set minimum height
,
“
021 mold adjustment beyond minimum distance“
shows and mold adjustment
forward will stop.
B.b) Press
and the molds will adjustment backward, leaving an increased mold
height and lessened clamping force. Let go of the key and said function will stop.
When backward movement goes beyond limit switches,
“
022 mold adjustment beyond
maximum distance
“
will show and mold adjustment backward will stop.
C) Auto operation for mold thickness adjustment
C.a) Measure the mold thickness (Ex.430.0mm) key in the measured figure to
thickness setup position of
“
DDDD.D
”
, press
, to move cursor to
“
Ｌ
“
,
then either press
to open or press to close, and push to
complete the correction. If mold adjustment needs to be stopped during the
procedure, push
.
C.b) After manual mold adjustment, have the molds put into clamping mechanism.
Use the mold fixing ring and the fixing hole of headboard to centralize the
molds, which sit against headboard and are stabilized to the headboard by mold
clamps.
04/08/13
57
