Chison Q9 - 2.4 Patient Environmental Devices

Q9 Digital Color Doppler Ultrasound System
6
accompanied by the name a
nd the address of the
authorized representative in the European Community.
This symbol is followed by the serial number
of the device.

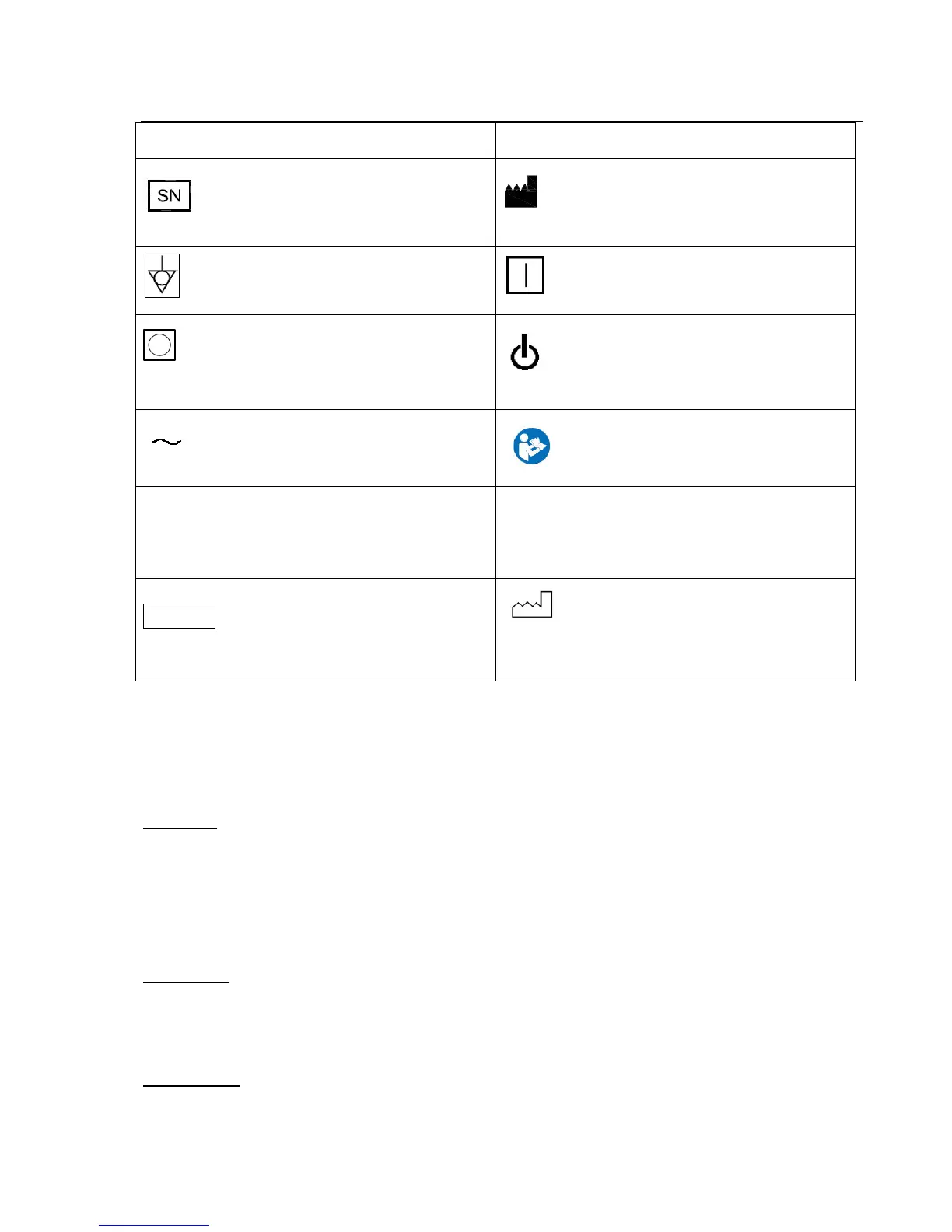

MANUFACTURER: This symbol is
accompanied by the name and the address of the
manufacturer.
Potential equilibrium connection
Main power switch ON
Main power switch OFF
Power On/off.
CAUTION: This Power Switch DOES NOT ISOLATE
Mains Supply.
The “Alternating current” symbol indicates that
the equipment is suitable for alternating current only.
This symbol signifies that the user manual must be read.
IPX7
Protection against the effects of immersion (probes)
IPX0
No protection against ingress of water (system)
Rx only
This symbol indicates that in the united states of
America, Federal law restricts the device to sale by or on
the order of a licensed practitioner or therapist.
This symbol is followed by the manufacturing date of the
device in the form YYYY-MM.
2.4 Patient Environmental Devices
Left side (refer to Fig. 3-1 b in Chapter 3):
 TV Video port: B/W or Color Printers
 1 LAN port: LaserJet Printer
 1 VGA port: External monitor
 2 USB ports
 1 S-Video port
Rear panel （refer to Fig.3-1c in Chapter3）:
 1 Footswitch port
 1 Remote port
 2 Probe ports
CAUTION:
