Q9 Digital Color Doppler Ultrasound System
44

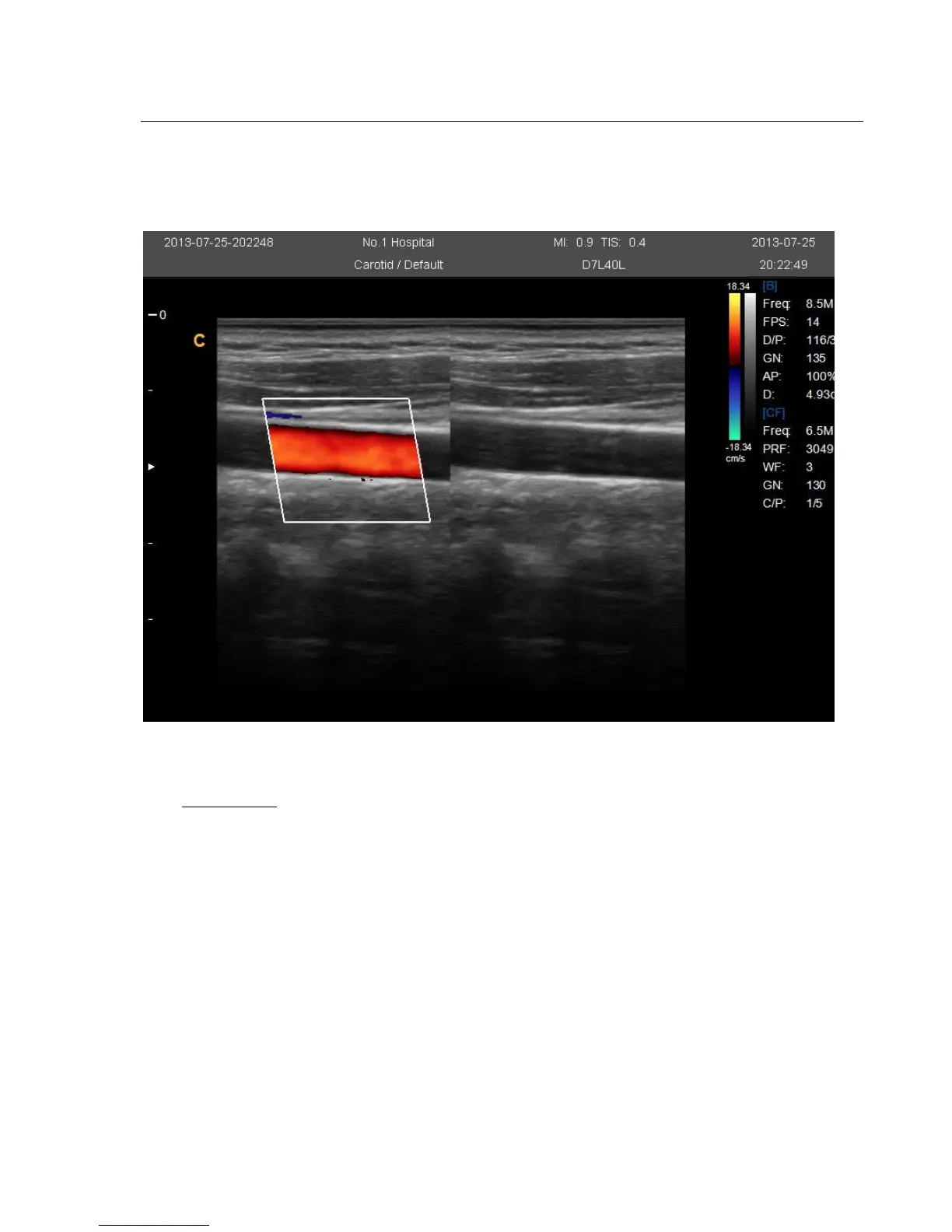

4.3.6. B/BC Mode
In active color mode, turn the [B/BC] item on to display a real B mode image at the left side of the screen and
active Color mode image at the right side of the screen.
4.3.7. B/M and M Mode
Intended Use:
M-mode is used to determine patterns of motion for objects within the ultrasound beam. The most common use
is for viewing motion patterns of the heart.
This system provides B mode image and M mode image at the same time. Press M knob to enter into B/M mode.
Press M knob again to enter into M mode. M mode is fit for heart scanning and measurement.
